Clay Chimney Pot Sizing Guide: How to Choose the Right Size
Choosing the right clay chimney pot size involves more than finding a style that looks good on your chimney. A properly selected chimney pot must also work with the dimensions of the flue and fireplace it serves.
The most important measurements are the chimney pot's Base I.D. (inside dimension), Base O.D. (outside dimension), top opening, and overall height. The size and shape of the existing flue, along with the fireplace opening, should also be considered before ordering.
If you're comparing styles, you can also browse our Superior Clay chimney pots and products to review available models, sizes, shapes, and finish options.
What Size Chimney Pot Do I Need?
The right chimney pot size depends primarily on the flue dimensions and fireplace opening, not just the overall height of the pot.
As a starting point:
- Measure the actual flue at the top of the chimney.
- Compare the flue dimensions with the chimney pot's Base I.D.
- Check the size of the chimney pot's top opening.
- Consider the size of the fireplace opening or vented appliance.
- Make sure there is enough room on the masonry chimney cap for the pot's Base O.D.
Superior Clay recommends that the Base I.D. be approximately as large as or larger than the largest dimension of the flue it covers. Proper sizing should also avoid unnecessarily restricting the effective flue area.
Because chimney construction, fireplace design, house air pressure, and other factors can affect chimney operation, these measurements should be treated as selection guidance rather than a substitute for proper system evaluation.
Chimney Pot Measurements You Need to Know
Understanding a few basic measurements makes comparing chimney pot sizes much easier.
Base I.D. — Inside Dimension
The Base I.D. is the inside measurement at the bottom of the chimney pot.
This is one of the most important measurements when determining whether a clay chimney pot can properly fit over or around an existing flue.
For example, a chimney pot with a 16-inch Base I.D. provides substantially more clearance than one with an 11 1/2-inch Base I.D., even if both products have a similar overall appearance.
Always compare the actual flue dimensions with the Base I.D. before choosing a model.
Base O.D. — Outside Dimension
The Base O.D. is the outside footprint of the chimney pot where it meets the chimney cap.
This measurement helps determine whether there is enough available masonry surface to install the pot and is particularly important when multiple flues or chimney pots are positioned close together.
Base O.D. should not be confused with Base I.D. A pot may have a 14-inch outside base while providing a significantly smaller opening inside.
Top Opening
The top opening is the effective opening at the upper portion of the chimney pot.
Superior Clay recommends considering the relationship between the top opening and the fireplace opening when selecting a chimney pot. The top opening should be evaluated together with the existing flue and the fireplace or appliance it serves.
Overall Height
Height is important for appearance, weight, installation, and the overall chimney configuration, but it should not be used by itself to determine the correct chimney pot size.
A taller pot is not automatically appropriate for a larger fireplace or flue. Base dimensions and opening dimensions remain critical.
How to Match a Clay Chimney Pot to the Flue
Start with the flue itself.
Do not select a chimney pot based only on a nominal flue description such as “8 × 8” or “13 × 13.” Actual installed flue dimensions can vary, so measuring the existing flue before ordering is important.
Once you have the measurements, compare the largest flue dimension with the Base I.D. of the chimney pot.
For example, if you are comparing two decorative chimney pots and one has an 11 1/2-inch Base I.D. while another has a 16-inch Base I.D., the larger pot may accommodate a larger flue even if their overall heights are similar.
This is why Base I.D. is usually more useful for fit than simply comparing chimney pot height.
How Fireplace Opening Size Affects Chimney Pot Selection
The fireplace opening is another important part of chimney pot sizing.
Superior Clay provides general sizing guidance based on the relationship between fireplace opening area, flue area, and chimney pot opening. These ratios can help narrow the available options, but they should not be treated as a universal sizing formula.
Chimney construction, fireplace configuration, available combustion air, house pressure, chimney height, and other conditions can all affect proper operation.
Superior Clay also groups many of its chimney pot models by suggested single-face fireplace opening widths, which can be useful when comparing suitable models.
Clay Chimney Pot Size Chart
The following examples show how significantly dimensions can vary between Superior Clay chimney pot models.
| Model | Height | Top Opening | Base I.D. | Base O.D. | Manufacturer Selection Guidance* |
|---|---|---|---|---|---|
| Superior Chimney Base | 13" | 6 3/4" | 9 3/4" × 9 3/4" | 11 1/2" × 11 1/2" | Compact chimney and vent applications |
| Superior Classic 13" × 13" | 24" | 7 1/2" × 7 1/2" | 11 1/4" × 11 1/4" | 13" × 13" | 30"–36" fireplace groups |
| Superior Classic 13" × 18" | 24" | 10" × 10" | 11" × 16" | 13" × 18 1/4" | 42" fireplace group |
| Superior Virginian | 24" | 10 1/2" | 11 1/2" | 14" | 36" fireplace group |
| Superior Victorian | 25" | 10 1/4" × 10 1/4" | 13" × 13" | 15" × 15" | 36" fireplace group |
| Superior Hampshire | 32" | 12" | 16" | 18 1/2" | 36" fireplace group |
| Superior Large Governor | 46" | 12" × 16" | 18" × 22 1/4" | 20 3/4" × 25 1/2" | 48" fireplace group |
| Superior Wellington | 26" | 17 1/4" | 22 1/2" | 25 1/2" | 72" fireplace group |
| Superior Nottingham | 28" | 20 1/4" | 21 3/4" | 24" | 72" fireplace group |
*The fireplace-opening categories above are manufacturer selection guidance for properly sized single-face fireplace applications. They do not by themselves establish compatibility with a specific chimney.
Superior Clay Chimney Pots by Fireplace Opening Size
One advantage of the Superior Clay line is the large range of sizes and architectural profiles available.
For a 36-inch single-face fireplace opening, Superior Clay's selection guidance includes models such as the Classic 13 × 13, Victorian, Hampshire, Virginian, and Avon among its suggested options.
This gives homeowners and installers several architectural choices while remaining within the manufacturer's general selection guidance.
For 42-inch fireplace openings, the guide includes options such as the Classic 13 × 18, where the larger rectangular base and opening provide different sizing characteristics.
For 48-inch fireplace openings, larger options include the Superior Large Governor Clay Chimney Pot along with larger Classic configurations.
For especially large 72-inch single-face fireplace openings, Superior Clay's suggested models include the Superior Wellington Clay Chimney Pot and Superior Nottingham Clay Chimney Pot, along with other large-format models.
These groupings are useful for narrowing the selection, but the individual Base I.D., Base O.D., top opening, and existing flue dimensions should still be checked before choosing a product.
What About Dry Top Chimney Pots?
The Superior Dry Top Clay Chimney Pot is different from many traditional single-opening chimney pots because it is offered in multiple base sizes and features multiple openings at the top.
Superior Clay offers Dry Top configurations including:
- 8" × 8"
- 8" × 12"
- 12" × 12"
All three are 30 inches tall, but their Base I.D., Base O.D., weight, and top-opening configurations differ.
For that reason, selecting a Dry Top should be based on the dimensions of the specific size rather than treating “Dry Top” as one universal configuration.
Round vs. Square vs. Rectangular Chimney Pot Bases
Clay chimney pots are available with round, square, rectangular, octagonal, and other architectural profiles.
The visual shape of the pot can help complement the architecture of the home, but fit should always be based on the actual dimensions, not the shape name alone.
For example, the round Hampshire has a 16-inch Base I.D., while the rectangular Large Governor has an 18" × 22 1/4" Base I.D. The correct choice depends on the chimney and flue configuration rather than whether one design simply appears larger.
This is also why comparing products by overall height alone can be misleading.
How to Measure Before Ordering a Chimney Pot
- Measure the actual flue at the top of the chimney.
- Record the flue shape — round, square, or rectangular.
- Identify the largest flue dimension.
- Compare that measurement with the chimney pot's Base I.D.
- Check the Base O.D. against the available chimney-cap space.
- Review the top opening in relation to the fireplace and flue system.
- Confirm compatibility with the fireplace, chimney, local installation requirements, and applicable manufacturer guidance before ordering.

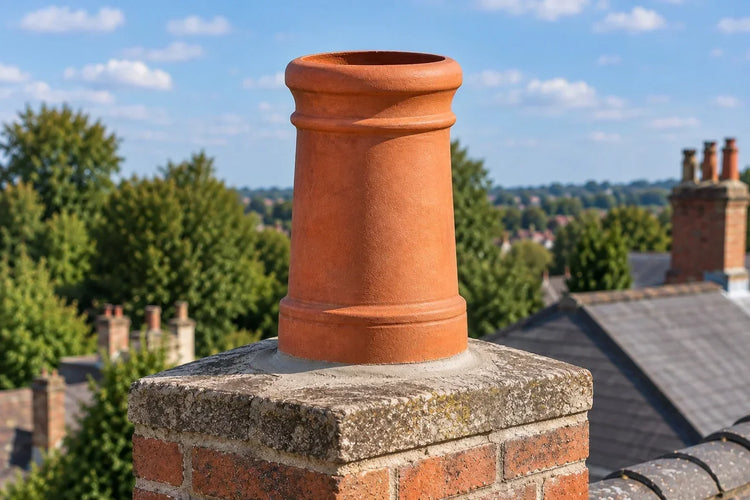

Superior Clay chimney pots are typically installed in a bed of mortar on a masonry chimney cap. Installation details and flue configuration should be confirmed before the product is installed.
Common Chimney Pot Sizing Mistakes
Choosing a Chimney Pot by Appearance Alone
Style matters, but a chimney pot that looks proportionally correct on the roof may still have the wrong Base I.D. or top opening for the chimney system.
Confusing Base I.D. and Base O.D.
These numbers serve different purposes. Base I.D. relates more directly to clearance around the flue, while Base O.D. describes the physical footprint of the pot.
Relying Only on Nominal Flue Size
Nominal flue sizes may not represent the exact dimensions of an installed flue. Measure the existing installation before ordering.
Choosing a Smaller Opening Without Checking the System
Reducing the effective flue area too much can affect chimney operation. Always compare the chimney pot opening with the existing flue and fireplace requirements.
Assuming Every Fireplace Uses the Same Sizing Rule
Fireplace construction, chimney height and design, house pressure, available combustion air, and other conditions can affect chimney performance. Manufacturer sizing charts should therefore be used as a selection tool rather than as a guarantee that a particular chimney pot will work with every installation.
Clay Chimney Pot Sizing FAQs
What size chimney pot do I need?
Start by measuring the existing flue and comparing its dimensions with the chimney pot's Base I.D. Then check the top opening in relation to the fireplace opening. Fireplace size, chimney construction, and other system factors should also be considered.
Should a chimney pot be larger than the flue?
The base opening should generally provide adequate clearance for the flue it serves and should not unnecessarily restrict the effective flue area. Always compare actual flue measurements with the chimney pot's Base I.D.
What does Base I.D. mean on a chimney pot?
Base I.D. means Base Inside Dimension. It describes the clear inside measurement at the bottom of the chimney pot and is a key measurement when checking compatibility with the flue.
What is the difference between Base I.D. and Base O.D.?
Base I.D. measures the inside opening of the chimney pot base. Base O.D. measures its outside footprint. Both measurements are useful, but they answer different sizing questions.
Does chimney pot height determine what size I need?
No. Height is only one product dimension. Two chimney pots of similar height can have very different base and top-opening dimensions. Flue fit and fireplace-opening requirements should be evaluated separately.
Can a properly sized chimney pot help chimney draft?
A properly selected chimney pot adds height to the chimney and may help draft in some installations, but chimney performance also depends on fireplace design, chimney construction, available combustion air, pressure conditions, and other factors.
Can two chimney pots be installed over one flue?
Installing multiple chimney pots over a single flue opening can create airflow problems and should not be assumed to be acceptable without appropriate system design and manufacturer guidance.
Choosing a Superior Clay Chimney Pot
Once the flue and fireplace requirements are understood, architectural style, height, shape, and finish can help narrow the final choice.
The Superior Clay Corporation collection at Alfresco Depot includes compact models such as the Chimney Base, flexible multi-size options such as the Classic and Dry Top, mid-size designs such as the Virginian, Victorian, Hampshire, and Avon, and larger architectural chimney pots including the Large Governor, Wellington, and Nottingham.
Start with the dimensions that fit the chimney system, then compare styles and available decorative finishes to find the option that best complements the home.
When there is uncertainty about sizing or compatibility, consult the fireplace or chimney manufacturer, a qualified chimney professional, or Superior Clay before installation.
