Clean Out Door vs. Ash Dump Door: What's the Difference?

If you are replacing a component in a masonry fireplace, it can be easy to confuse a clean out door with an ash dump door. Both are associated with fireplace ash management, and some fireplace systems may include both components. However, they serve different purposes and are typically installed in different locations.

Understanding the difference between a fireplace clean out door and an ash dump door can help you identify the correct replacement before ordering. In this guide, we'll explain how each component works, where it is typically located, and how to determine which one you may need.

What Is an Ash Dump Door?

An ash dump door is typically located in the floor of a fireplace firebox. It provides an opening through which ash can be moved from the firebox into an ash pit or collection area below.

After the fireplace has cooled, ash can be swept through the opening and into the collection area beneath the fireplace. The ash can then be removed later through an appropriate access point.

Ash dump doors are typically designed to sit within the firebox floor and serve as the passage between the firebox and the ash collection area.

For a more detailed look at ash dump door sizes, materials, replacement options, and maintenance, read our Complete Guide to Fireplace Ash Dump Doors.

If you are looking for a replacement, compare our Black Ash Dump Door and Stainless Steel Ash Dump Door options with your existing installation.

What Is a Fireplace Clean Out Door?

A fireplace clean out door is an access door that provides entry to an ash pit, clean-out area, or lower section of a fireplace or chimney system.

Unlike an ash dump door, which is typically located inside the firebox and allows ash to move downward, a clean out door provides access to the lower area where accumulated ash and debris can be removed.

Depending on the fireplace design, a clean out door may be located near the base of the chimney, on an exterior wall, or in another accessible area below the fireplace.

In fireplace systems that include both components, the ash removal process may work like this:

1. Ash is swept through the ash dump opening inside the firebox.

2. The ash falls into an ash pit or collection area below.

3. The clean out door provides access to remove the accumulated ash and debris.

If you are looking for a replacement access door, explore our K&W Manufacturing Fire Magic Fireplace Clean Out Door.

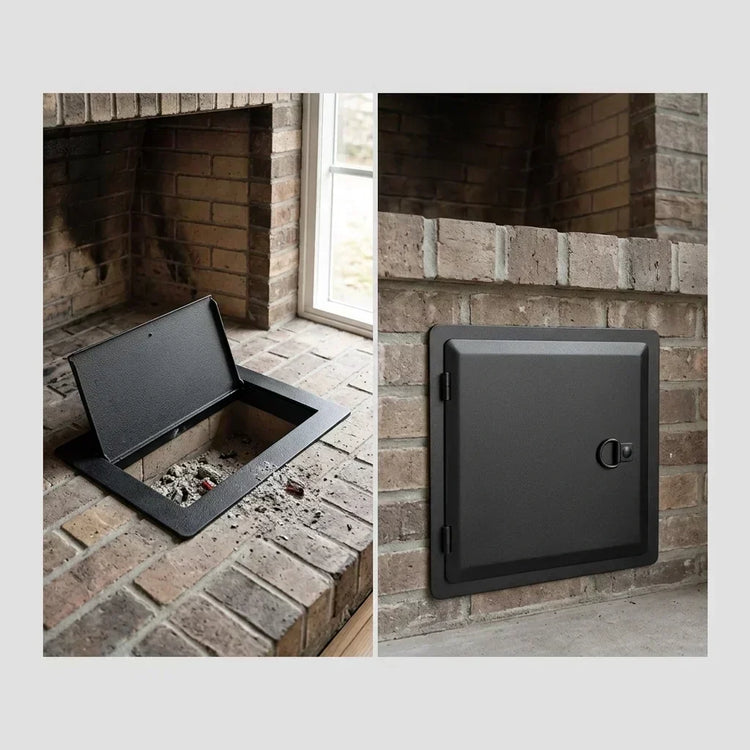

Clean Out Door vs. Ash Dump Door: The Key Differences

Although both components are associated with fireplace maintenance and ash removal, they perform different functions.

Feature	Clean Out Door	Ash Dump Door
Typical location	Near the ash pit, chimney base, or lower fireplace area	Inside the fireplace firebox
Primary purpose	Provides access for removing accumulated ash and debris	Allows ash to move from the firebox into the area below
Main function	Access and clean-out	Ash transfer
Typical position	Below or outside the firebox	Within the firebox floor
Replacement considerations	Opening and frame dimensions	Opening size, flange dimensions, and door design

In a traditional masonry fireplace with an ash pit system, the two components can work together rather than serving as alternatives to one another.

Is a Clean Out Door the Same as an Ash Dump Door?

No. A clean out door is not necessarily the same as an ash dump door.

The terminology can sometimes cause confusion because both components are involved in ash management. However, their locations and functions are generally different.

An ash dump door typically allows ash to move downward from the fireplace. A clean out door provides access to the lower area where accumulated ash and debris can be removed.

Some fireplace designs and product descriptions may use similar terminology, so it is important to identify the location and purpose of the existing component before purchasing a replacement.

How Do You Know Which Door You Need?

The easiest way to identify the correct replacement is to start with the location and function of the existing component.

You May Need an Ash Dump Door If:

• The door is located inside the fireplace firebox.

• It is installed in the floor or hearth area.

• Its purpose is to allow ash to move into a chamber or pit below.

• The existing component is a smaller hinged or pivot-style door.

If you need a replacement ash dump door, compare the dimensions and design of your existing door with options such as the K&W Manufacturing Fire Magic Ash Dump Door.

If this describes the component you need to replace, compare the dimensions, material, and design of your existing door with the available ash dump door options described earlier in this guide.

You May Need a Clean Out Door If:

• The door provides access to an ash pit or clean-out area.

• It is located near the bottom of the fireplace or chimney system.

• It opens into a space where accumulated ash or debris can be removed.

• The component is designed primarily as an access door rather than an opening in the firebox floor.

If this matches your existing component, a fireplace clean out door may be the appropriate replacement.

Can a Fireplace Have Both an Ash Dump Door and a Clean Out Door?

Yes. Some masonry fireplaces are designed with both components.

The ash dump door provides an opening through which ash moves from the firebox into an ash pit or collection area below. The clean out door provides access to that lower area when accumulated ash and debris need to be removed.

Because these components perform different roles within the same system, replacing one does not necessarily mean the other needs to be replaced.

Not every fireplace includes both components, however. The design can vary depending on the age and construction of the fireplace and chimney system.

How to Measure Before Ordering a Replacement

Before ordering a replacement, first identify which component you need to replace.

For an ash dump door, the existing opening and outside flange dimensions can be important when selecting the correct replacement. Our fireplace ash dump door guide provides more information about common sizes and replacement considerations.

For a clean out door, measure the existing opening and compare it with both the inner frame and outer frame dimensions listed by the manufacturer. These measurements can help determine whether a replacement door is compatible with your existing installation.

Do not assume that two products with similar outside dimensions will fit the same opening. Always compare the manufacturer's specifications with your existing installation before ordering.

Clean Out Door or Ash Dump Door: Which One Is Right for You?

The right choice depends primarily on the location and function of the component you need to replace.

Choose an ash dump door if you need a component installed within the fireplace that allows ash to move into an area below the firebox.

Choose a clean out door if you need an access door that allows you to reach and remove accumulated ash or debris from an ash pit or clean-out area.

If your fireplace includes both components, remember that they are designed to perform different functions. Identifying the location of the existing door is often the best first step toward choosing the correct replacement.

Frequently Asked Questions

What is the difference between a clean out door and an ash dump door? Are they the same?

An ash dump door is typically located inside the fireplace and allows ash to move into an area below the firebox. A clean out door provides access to that lower area so accumulated ash and debris can be removed.

Where is a fireplace clean out door usually located?

Depending on the fireplace design, a clean out door may be located near the base of the chimney or another accessible area below the fireplace.

Where is an ash dump door located?

An ash dump door is typically located inside the fireplace firebox, often in the floor or hearth area.

Can I replace a clean out door with an ash dump door?

In most cases, no. These components generally serve different functions and are designed for different locations. Identify the existing component and compare its dimensions and intended application before ordering a replacement.

Can a fireplace have both an ash dump door and a clean out door?

Yes. Some fireplace systems include both components. The ash dump door allows ash to move from the firebox into the collection area below, while the clean out door provides access for removing accumulated ash and debris.

Find the Right Fireplace Replacement Door

Before purchasing a replacement, identify the component you need and compare your existing installation with the manufacturer's specifications.

If you need a door installed inside the firebox for moving ash into the area below, compare the ash dump door options discussed in this guide and review our Complete Guide to Fireplace Ash Dump Doors for additional information.

If you need an access door for a fireplace or chimney clean-out area, explore the K&W Manufacturing Fire Magic Fireplace Clean Out Door and compare the available dimensions with your existing opening.

Choosing the correct component can make fireplace maintenance easier and help you select a replacement appropriate for your existing masonry fireplace system.
