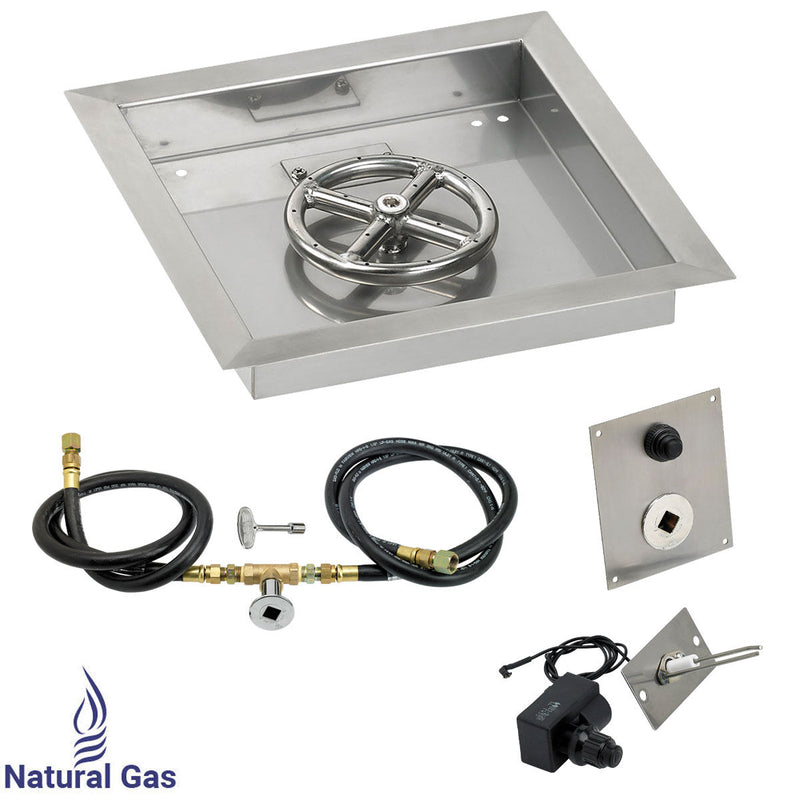

American Fire Products 12" Square Drop-In Pan with Spark Ignition Kit (6" Fire Pit Ring) - Natural Gas

Add warmth and elegance to your outdoor space with the American Fire Products 12" Square Drop-In Pan with Spark Ignition Kit (6" Fire Pit Ring) - Natural Gas. Designed for compact custom fire pit installations, this complete natural gas fire pit kit includes a durable stainless steel drop-in pan, a 6-inch stainless steel ring burner, and a reliable push-button spark ignition system. With the simple push of a button, you can enjoy beautiful flames and a welcoming outdoor atmosphere.

The innovative drop-in pan creates a false-bottom design that reduces the amount of fire glass required while maintaining a full and professional appearance. Crafted from premium 304 stainless steel, this kit is built to withstand outdoor environments and provide years of dependable performance.

Features

• Complete natural gas fire pit kit with push-button spark ignition
• 12" square stainless steel drop-in pan with integrated mounting flange
• 6" stainless steel fire pit ring burner with cross-bar flame distribution design
• Powerful burner system rated up to 88,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes two 5-foot gas hoses and chrome key valve with key
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help prevent whistling noises
• Built-in weep holes help prevent water accumulation
• Burner works best with 2" to 4" of fire glass
• Features a 1/2" gas inlet for easy installation
• Ideal for compact custom natural gas fire pit projects
• Backed by a 5-year manufacturer warranty
• Designed for outdoor, vented natural gas fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Square
• Fuel Type: Natural Gas
• Pan Dimensions: 12" L x 12" W x 2" D
• Flange Width: 1 1/4"
• Burner Type: Fire Pit Ring Burner
• Burner Size: 6"
• Gas Inlet: 1/2"
• Burner Heat Rating: 88,000 BTU/hr Maximum
• Fire Glass Capacity: 15 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 14 lbs
• Warranty: 5-Year Manufacturer Warranty
• Application: Outdoor, vented natural gas fire features only
• Included Components
  • 12" Square Drop-In Fire Pit Pan
  • 6" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • Two 5' Gas Hoses
  • Chrome Key Valve with Key
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
