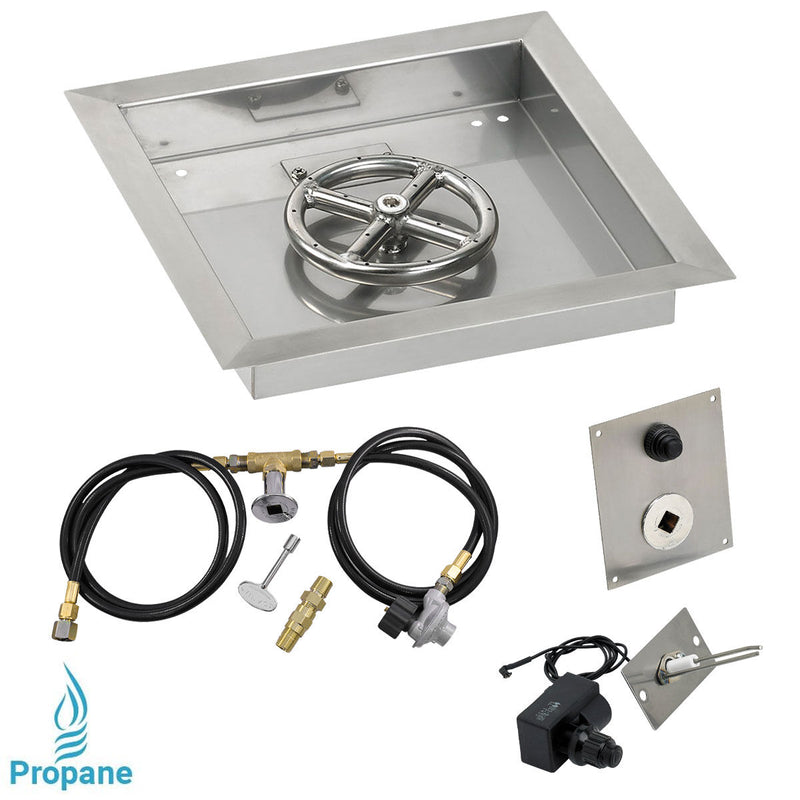

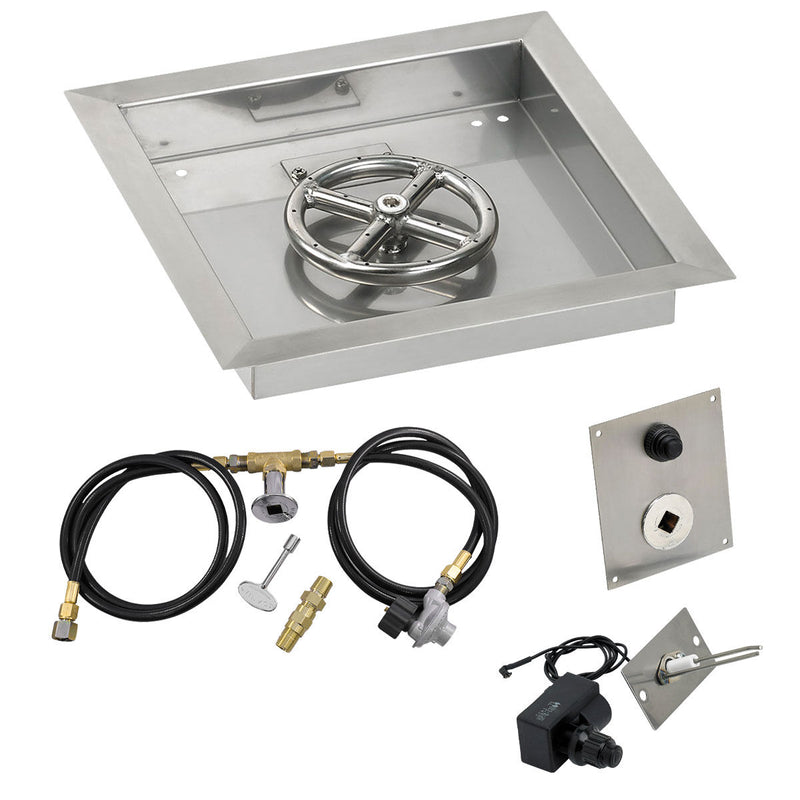

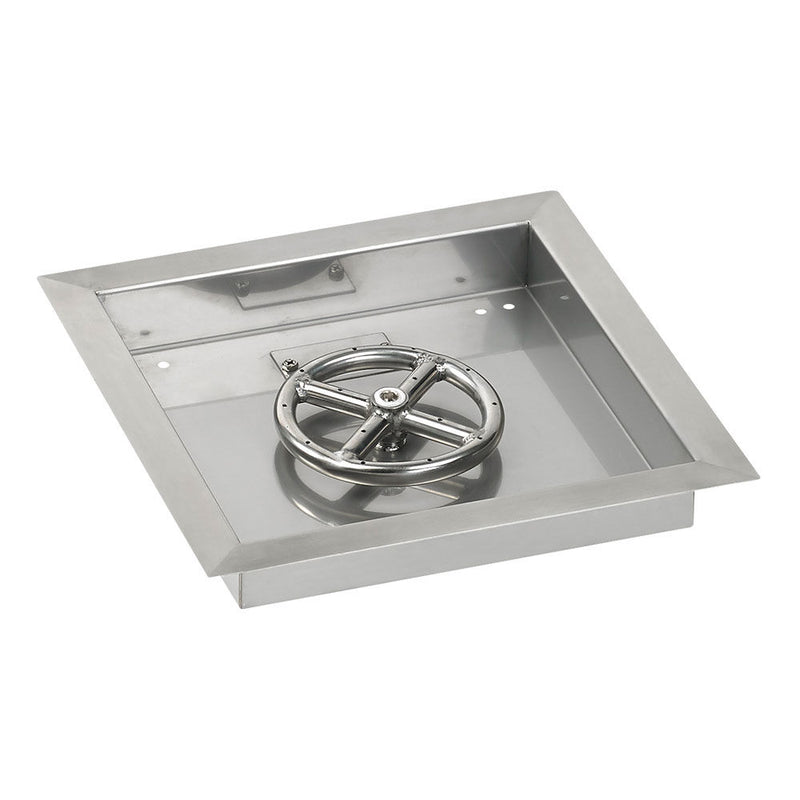

American Fire Products 12" Square Drop-In Pan with Spark Ignition Kit (6" Fire Pit Ring) - Propane

Create a compact and beautiful outdoor fire feature with the American Fire Products 12" Square Drop-In Pan with Spark Ignition Kit (6" Fire Pit Ring) - Propane. This all-in-one propane fire pit kit includes a durable stainless steel drop-in pan, a 6-inch stainless steel ring burner, and a reliable push-button spark ignition system. Designed for smaller custom fire pit projects, it delivers impressive flame performance with the convenience of push-button ignition.

The innovative drop-in pan features a false-bottom design that minimizes the amount of fire glass needed while maintaining a full and professional appearance. Constructed from premium 304 stainless steel, this kit is built to withstand outdoor environments while providing years of dependable performance.

Features

• Complete propane fire pit kit with push-button spark ignition
• 12" square stainless steel drop-in pan with integrated mounting flange
• 6" stainless steel fire pit ring burner with cross-bar flame distribution design
• Powerful burner system rated up to 88,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes 4' and 5' gas hoses, propane regulator, air-mixer, and chrome key valve with key
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help prevent whistling noises
• Built-in weep holes help prevent water accumulation
• Burner works best with 2" to 4" of fire glass
• Features a 1/2" gas inlet for simple installation
• Ideal for compact custom propane fire pit projects
• Designed for outdoor, vented propane gas fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Square
• Fuel Type: Propane
• Pan Dimensions: 12" L x 12" W x 2" D
• Flange Width: 1 1/4"
• Burner Type: Fire Pit Ring Burner
• Burner Size: 6"
• Gas Inlet: 1/2"
• Burner Heat Rating: 88,000 BTU/hr Maximum
• Fire Glass Capacity: 15 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 13 lbs
• Application: Outdoor, vented propane gas fire features only
• Included Components
  • 12" Square Drop-In Fire Pit Pan
  • 6" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' and 5' Gas Hoses
  • Propane Regulator
  • Air-Mixer
  • Chrome Key Valve with Key
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
