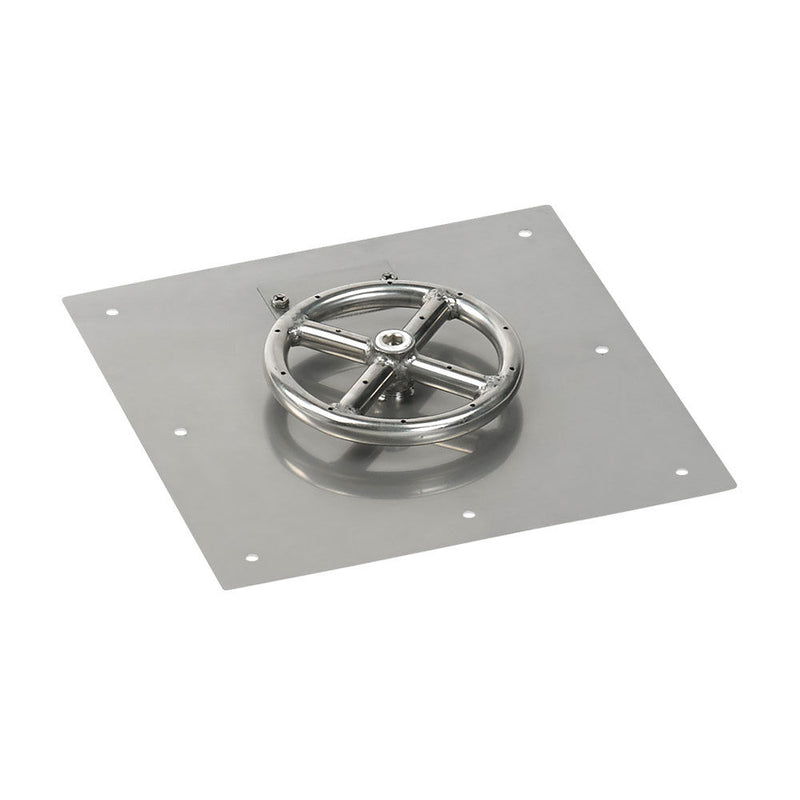

American Fire Products 12" Square Flat Pan with Spark Ignition Kit (6" Ring) - Propane

Create a beautiful and reliable outdoor fire feature with the American Fire Products 12" Square Flat Pan with Spark Ignition Kit (6" Fire Pit Ring) - Propane. Designed for permanent installation in custom propane fire pits, this complete kit includes a handcrafted stainless steel flat pan, a durable 6-inch stainless steel ring burner, and a convenient push-button spark ignition system for easy lighting.

The flat pan creates a false-bottom design that significantly reduces the amount of fire glass required while maintaining a full and attractive appearance. Manufactured from premium 304 stainless steel, this kit offers exceptional durability, corrosion resistance, and long-lasting performance in outdoor environments.

Features

• Complete propane fire pit kit with push-button spark ignition
• 12" square stainless steel flat pan designed for permanent installation
• 6" stainless steel fire pit ring burner with cross-bar flame distribution
• Powerful burner system rated up to 88,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes 4' gas hose, 5' gas hose, propane regulator, air mixer, and chrome key valve with key
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help eliminate whistling noises
• Built-in weep holes help prevent water accumulation
• Burner performs best with 2" to 4" of fire glass
• Features a 1/2" gas inlet for easy installation
• Designed for permanent installation in custom fire pit projects
• Ideal for outdoor, vented propane gas fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Square
• Pan Style: Flat Pan
• Fuel Type: Propane
• Pan Dimensions: 12" x 12"
• Burner Type: Fire Pit Ring Burner
• Burner Size: 6"
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Heat Rating: 88,000 BTU/hr Maximum
• Fire Glass Capacity: 15 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 10 lbs
• Application: Outdoor, vented propane gas fire features only

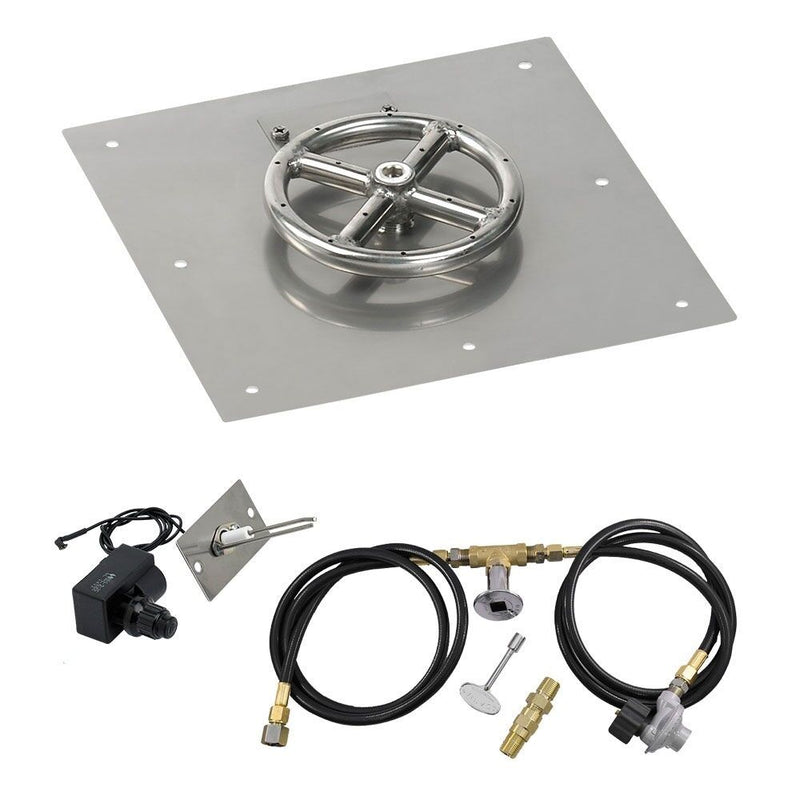

• Included Components
  • 12" Square Flat Fire Pit Pan
  • 6" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' Gas Hose
  • 5' Gas Hose
  • Propane Regulator
  • Air Mixer
  • Chrome Key Valve with Key
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
