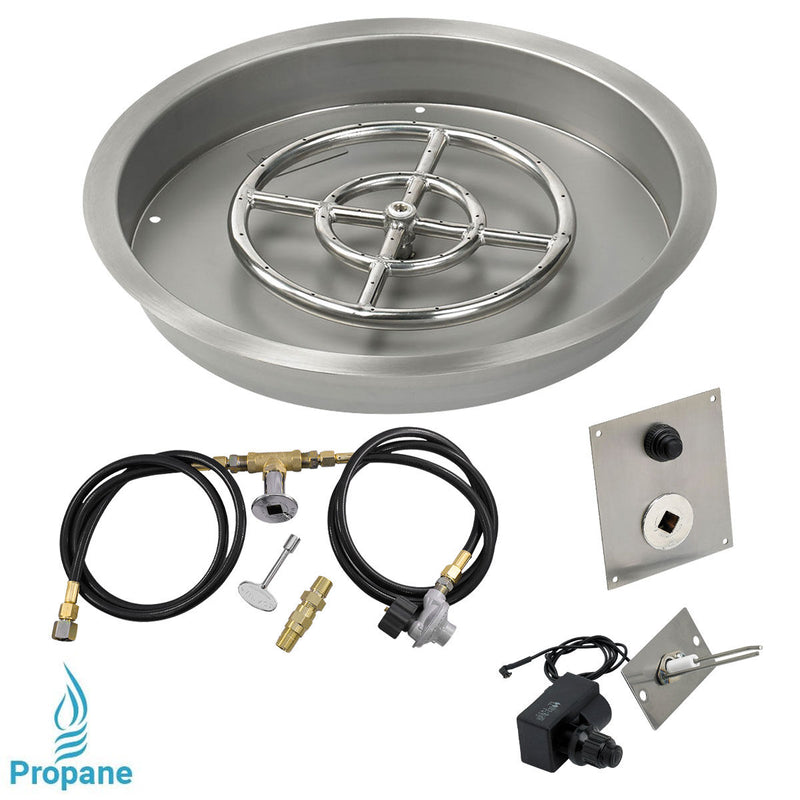

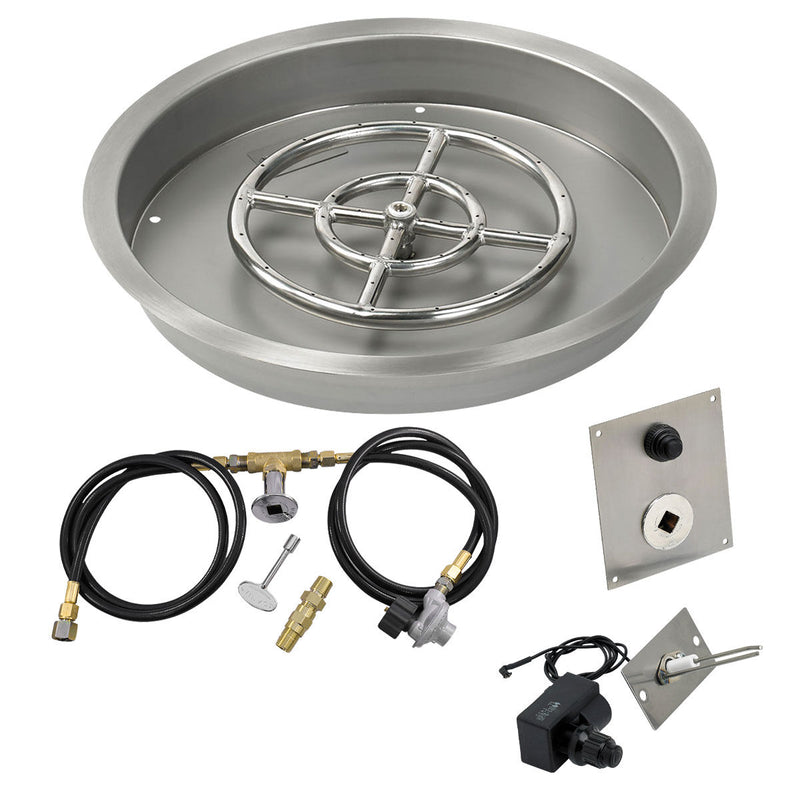

American Fire Products 19" Round Drop-In Pan with Spark Ignition Kit (12" Fire Pit Ring) - Propane

Enhance your outdoor fire feature with the American Fire Products 19" Round Drop-In Pan with Spark Ignition Kit (12" Fire Pit Ring) - Propane. Designed for compact propane fire pits, this complete system delivers reliable ignition, efficient gas flow, and a beautiful flame presentation. With a simple push-button spark ignition, starting your fire pit is quick, safe, and effortless.

Built from high-quality 304 stainless steel, this drop-in pan system is engineered for long-lasting outdoor durability. The included 12" ring burner ensures even flame distribution, while the false-bottom design reduces fire glass usage and enhances visual depth.

Features

• Complete propane fire pit kit with push-button spark ignition system
• Compact 19" round stainless steel drop-in pan with integrated lip
• Includes 12" 304 stainless steel ring burner
• Powerful burner system rated up to 92,000 BTU/hr
• Push-button ignitor with battery included for easy startup
• Includes gas hose, chrome key valve with key, air mixer, and regulator
• Made from premium 304 stainless steel for maximum durability
• False-bottom design reduces fire glass requirements
• Drilled burner ports help prevent whistling noise
• Built-in weep holes prevent water buildup inside the pan
• Designed for use with 2"–4" of fire glass
• Ideal for small to medium outdoor propane fire features
• For outdoor, vented propane gas fire pits only

Product Specifications

• Material: 304 Stainless Steel (hand crafted)
• Shape: Round
• Fuel Type: Propane
• Pan Diameter: 19"
• Burner Size: 12" Ring Burner
• Burner Type: Cross-bar stainless steel ring burner
• Gas Inlet: 1/2" bottom gas inlet
• Burner Heat Rating: 92,000 BTU/hr maximum
• Fire Glass Capacity: 27 lbs (not included)
• Depth: Standard drop-in pan profile
• Special Features: Drilled burner holes, built-in weep holes, air mixer included
• Weight: 17 lbs
• Application: Outdoor, vented propane fire features only
• Included Components

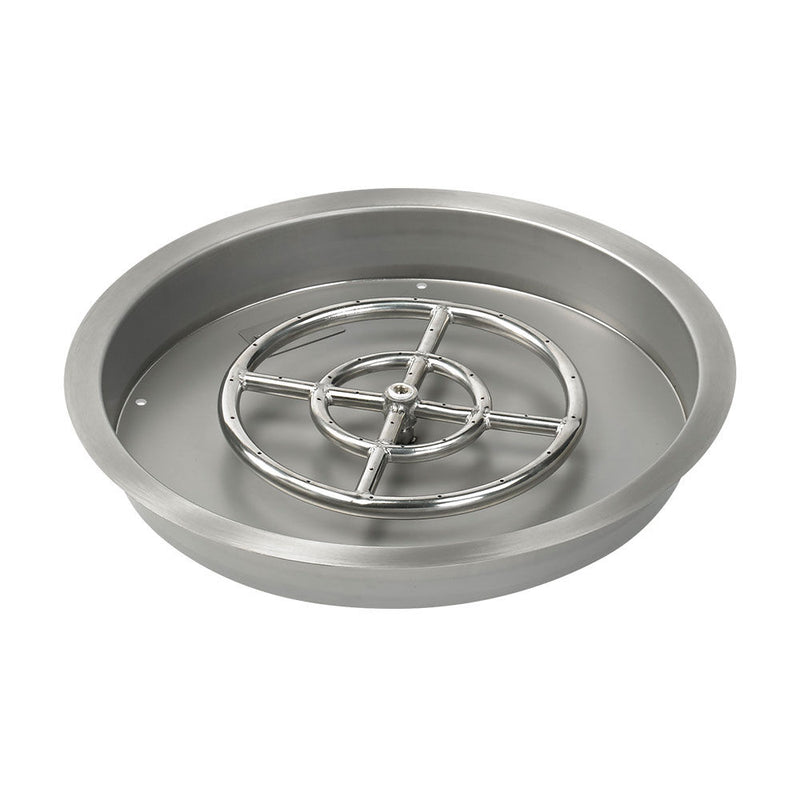

  • 19" Round Drop-In Fire Pit Pan
  • 12" Stainless Steel Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • Gas Hose (4' & 5')
  • Chrome Key Valve with Key
  • Air Mixer
  • Portable Propane Regulator
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
