American Fire Products 25" Round Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane

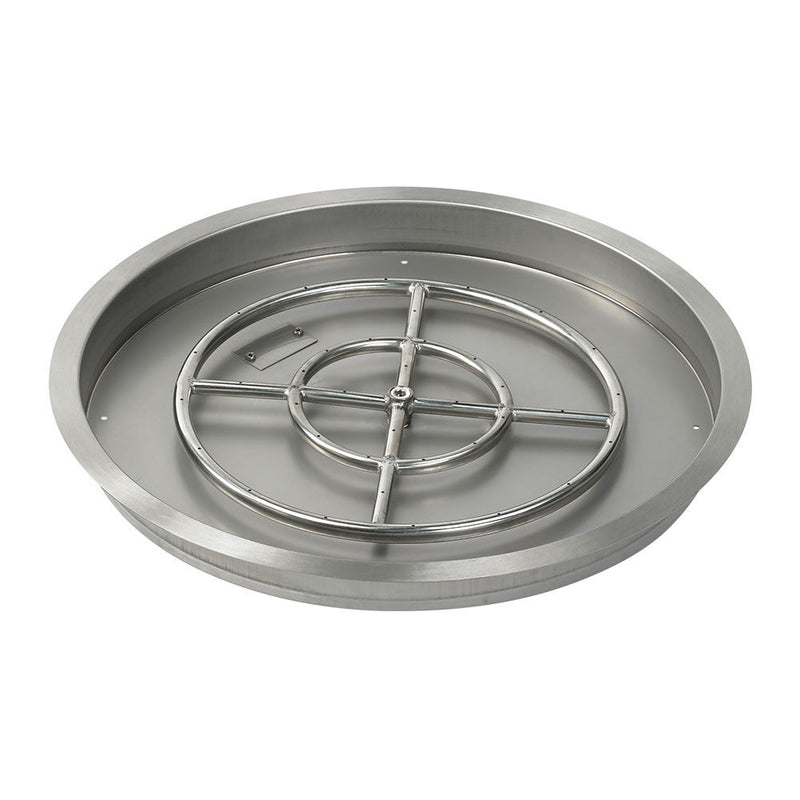

Create a beautiful and inviting outdoor gathering space with the American Fire Products 25" Round Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane. This complete fire pit burner kit includes a durable stainless steel round drop-in pan, an 18-inch fire pit ring burner, and a reliable push-button spark ignition system for quick and convenient lighting.

Designed for propane gas fire features, the drop-in pan creates a false bottom that minimizes the amount of fire glass required while maintaining a full, professional appearance. Crafted from premium 304 stainless steel, this kit delivers long-lasting performance, excellent flame distribution, and resistance to heat, moisture, and outdoor weather conditions.

Features

• Complete propane fire pit kit with push-button spark ignition
• 25" round stainless steel drop-in pan with integrated mounting flange
• 18" stainless steel fire pit ring burner with cross-bar design
• Powerful burner rated up to 147,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes 4-foot and 5-foot gas hoses, chrome key valve, and key
• Includes propane air mixer and portable propane tank regulator
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help eliminate whistling noises
• Built-in weep holes help prevent water accumulation
• Designed for use with 2" to 4" of fire glass
• Easy drop-in installation and maintenance
• For outdoor, vented propane fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Round
• Fuel Type: Propane
• Pan Diameter: 25"
• Burner Type: Fire Pit Ring Burner
• Burner Size: 18"
• Gas Inlet: 1/2"
• Burner Heat Rating: 147,000 BTU/hr Maximum
• Fire Glass Capacity: 48 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 21 lbs
• Warranty: 5-Year Manufacturer Warranty
• Application: Outdoor, vented propane gas fire features only

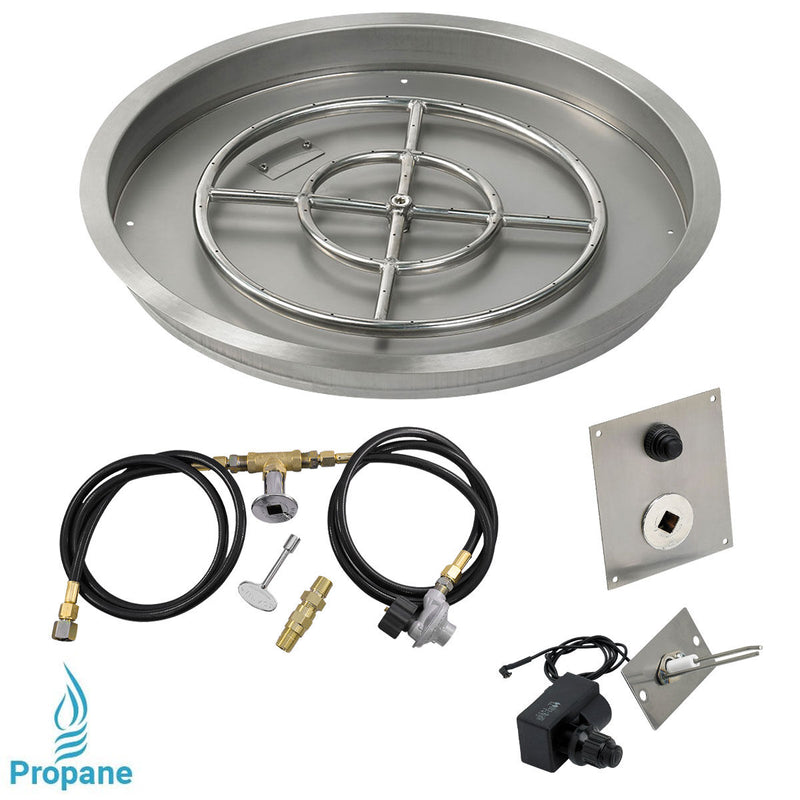

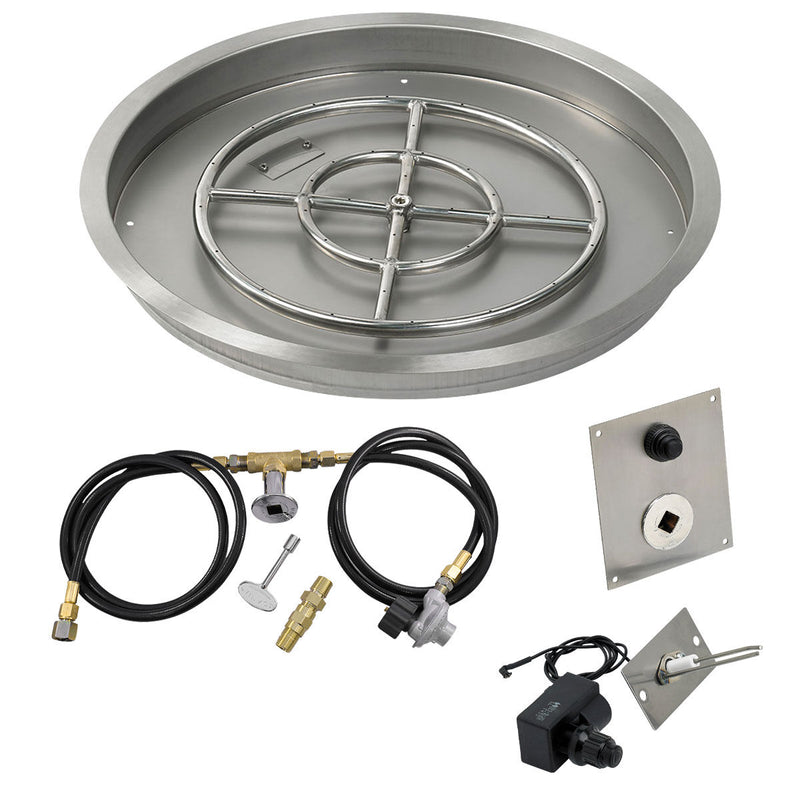

• Included Components
  • 25" Round Drop-In Fire Pit Pan
  • 18" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' Gas Hose
  • 5' Gas Hose
  • Chrome Key Valve with Key
  • Propane Air Mixer
  • Portable Propane Tank Regulator
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
