American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Natural Gas

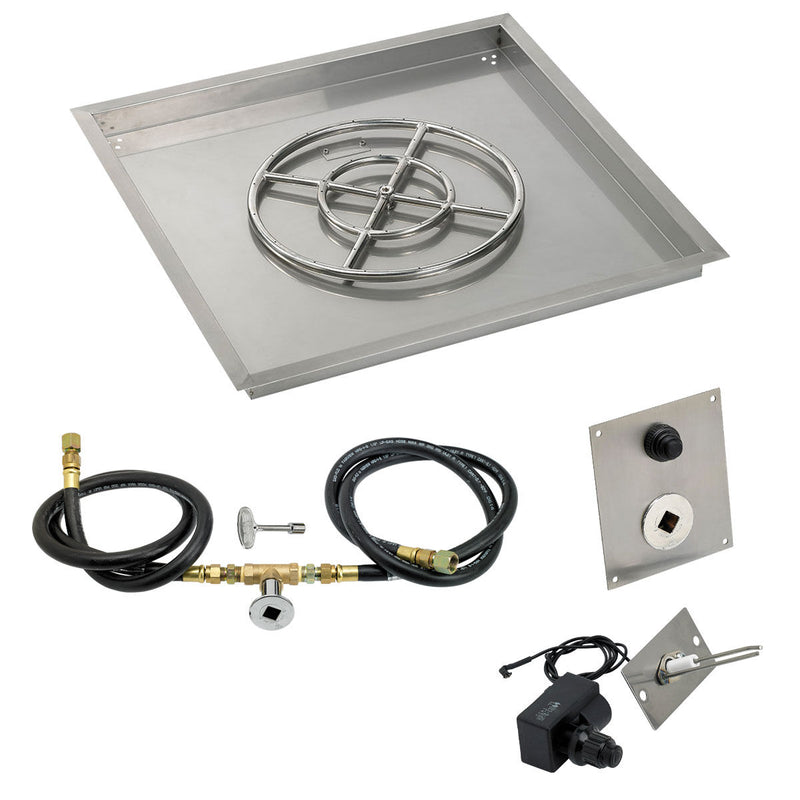

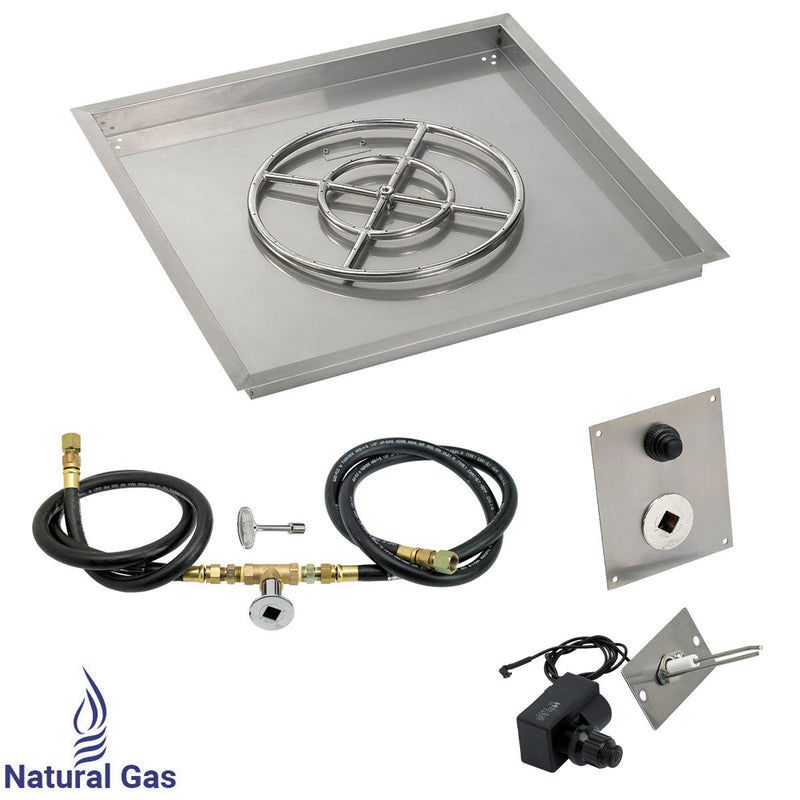

Create a warm and inviting outdoor gathering space with the American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Natural Gas. This complete fire pit kit includes a premium stainless steel drop-in pan, an 18-inch ring burner, and a dependable push-button spark ignition system for quick and effortless lighting.

Designed for natural gas fire features, the drop-in pan creates a false bottom that reduces the amount of fire glass needed while maintaining a full, professional appearance. Built from durable 304 stainless steel, this fire pit kit offers outstanding performance, excellent flame distribution, and long-lasting durability in outdoor environments.

Features

• Complete natural gas fire pit kit with push-button spark ignition

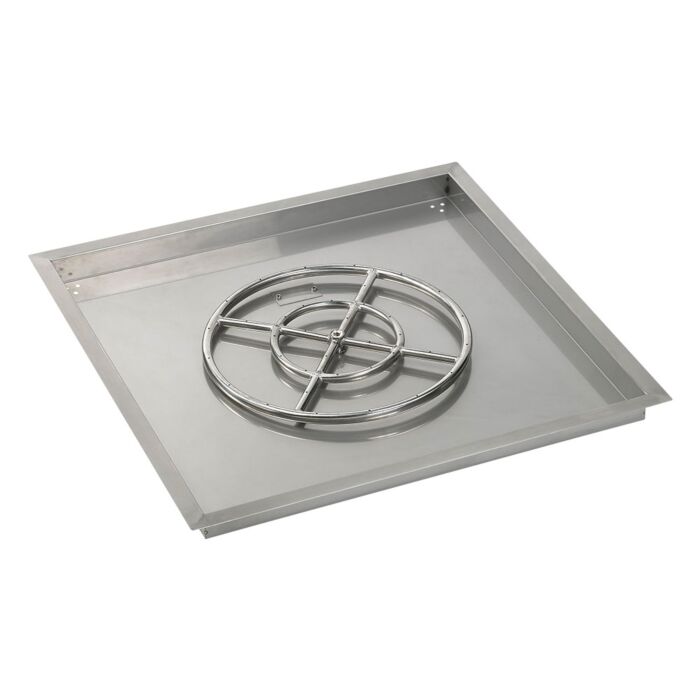

• 30" square stainless steel drop-in pan with integrated mounting flange
• 18" stainless steel fire pit ring burner with cross-bar design
• Burner system rated up to 147,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes two 5-foot gas hoses and chrome key valve with key
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help eliminate whistling noises
• Built-in weep holes help prevent water accumulation
• Includes 1/2" bottom gas inlet for easy installation
• Designed for use with 2" to 4" of fire glass
• Ideal for custom outdoor natural gas fire pit installations
• For outdoor, vented natural gas fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Square
• Fuel Type: Natural Gas
• Pan Dimensions: 30" L x 30" W x 2" D
• Flange Width: 1 1/4"
• Burner Type: 18" Fire Pit Ring Burner
• Burner Size: 18"
• Gas Inlet: 1/2"
• Burner Heat Rating: 147,000 BTU/hr Maximum
• Fire Glass Capacity: 94 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 32 lbs
• Application: Outdoor, vented natural gas fire features only
• Included Components
  • 30" Square Drop-In Fire Pit Pan
  • 18" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • Two 5' Gas Hoses
  • Chrome Key Valve with Key
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
