American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane

Create a beautiful and inviting outdoor gathering space with the American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane. This complete fire pit kit includes a premium stainless steel drop-in pan, an 18-inch ring burner, and a convenient push-button spark ignition system for quick and reliable startups.

Designed for propane fire features, the drop-in pan creates a false bottom that significantly reduces the amount of fire glass required while maintaining a full, professional appearance. Built from durable 304 stainless steel, this fire pit kit delivers long-lasting performance, excellent flame distribution, and reliable operation in outdoor environments.

Features

• Complete propane fire pit kit with push-button spark ignition
• 30" square stainless steel drop-in pan with integrated mounting flange
• 18" stainless steel fire pit ring burner with cross-bar design
• Burner system rated up to 147,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes 4-foot gas hose, 5-foot gas hose, propane regulator, chrome key valve with key, and air mixer
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help eliminate whistling noises
• Built-in weep holes help prevent water accumulation
• Includes propane air mixer for proper fuel-air mixture
• Includes portable propane tank regulator
• Designed for use with 2" to 4" of fire glass
• Ideal for custom outdoor propane fire pit installations
• For outdoor, vented propane fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Square
• Fuel Type: Propane
• Pan Dimensions: 30" L x 30" W x 2" D
• Flange Width: 1 1/4"
• Burner Type: 18" Fire Pit Ring Burner
• Burner Size: 18"
• Gas Inlet: 1/2"
• Burner Heat Rating: 147,000 BTU/hr Maximum
• Fire Glass Capacity: 94 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 31 lbs
• Application: Outdoor, vented propane gas fire features only

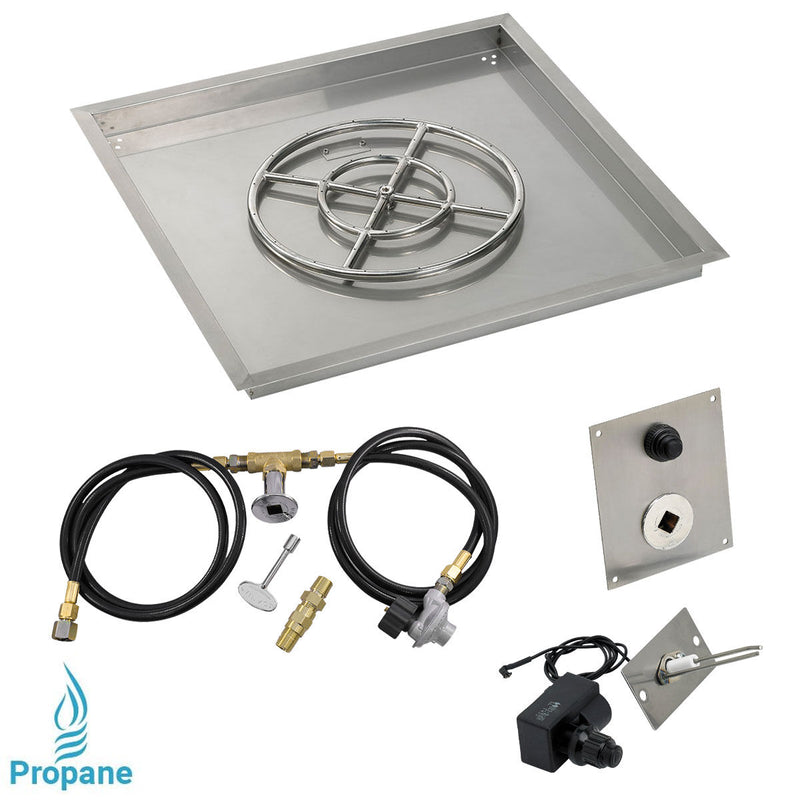

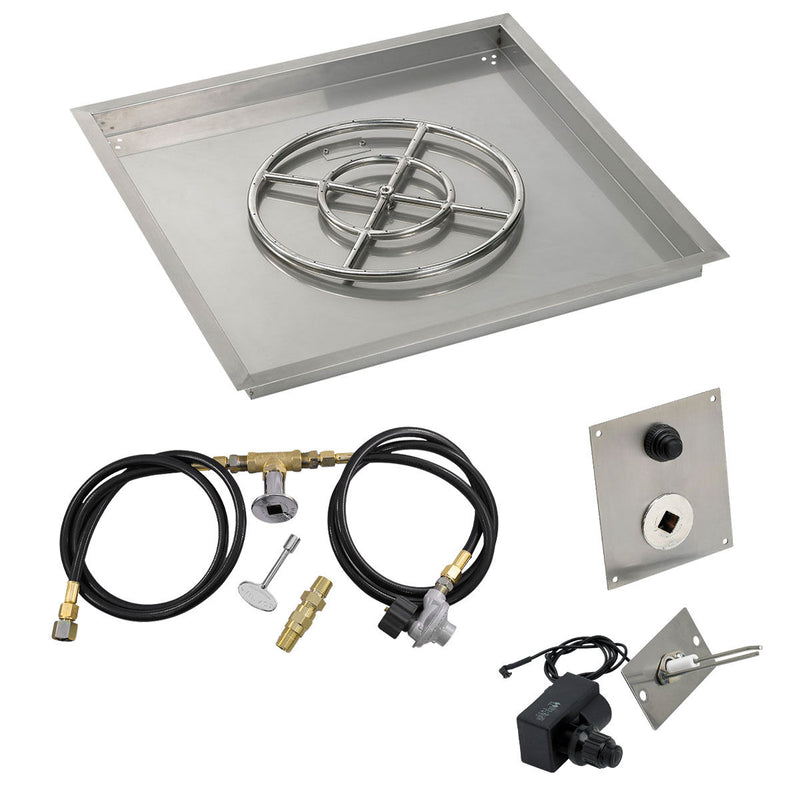

• Included Components
  • 30" Square Drop-In Fire Pit Pan
  • 18" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' Gas Hose
  • 5' Gas Hose
  • Propane Regulator
  • Chrome Key Valve with Key
  • Air Mixer
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
