American Fire Products 48"x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane

The American Fire Products 48" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane makes it easy to create a stunning linear fire feature with convenient push-button ignition. Designed for outdoor propane fire pits, this complete kit includes a 48" x 6" stainless steel drop-in pan with a built-in T-burner, propane installation accessories, and a reliable spark ignition system.

Crafted from 304 stainless steel, the drop-in pan features a built-in flange for simple installation and removal. Its false-bottom design reduces the amount of fire glass needed while maintaining a full, professional appearance. The built-in T-burner includes drilled burner ports to help prevent whistling and weep holes to allow water drainage, ensuring dependable performance in outdoor environments.

Features

• Complete propane fire pit kit with push-button spark ignition
• 48" x 6" stainless steel linear drop-in burner pan
• Built-in T-burner for consistent flame distribution
• Push-button spark ignitor with battery included
• Includes propane regulator, air mixer, gas hoses, and chrome key valve
• Durable handcrafted 304 stainless steel construction
• Built-in flange for easy drop-in installation
• False-bottom design reduces fire glass requirements
• Drilled burner holes help eliminate whistling
• Weep holes allow water drainage and prevent accumulation
• Designed for outdoor, vented propane fire features

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Dimensions: 48" L x 6" W x 2" D
• Flange: 1 1/4"
• Fuel Type: Propane
• Burner Type: Built-In T-Burner
• Burner Heat Rating: 120,000 BTU/hr Maximum
• Fire Glass Capacity: 40 lbs (not included)
• Gas Inlet: 1/2"
• Special Features: Drilled burner holes and weep holes
• Application: Outdoor, vented propane fire features only
• Product Weight: 15 lbs

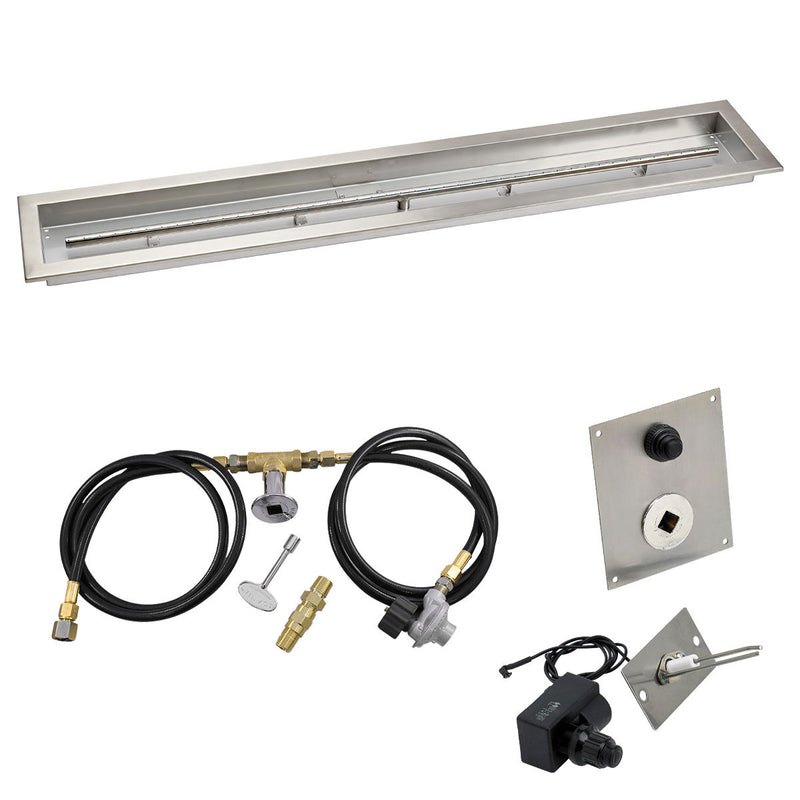

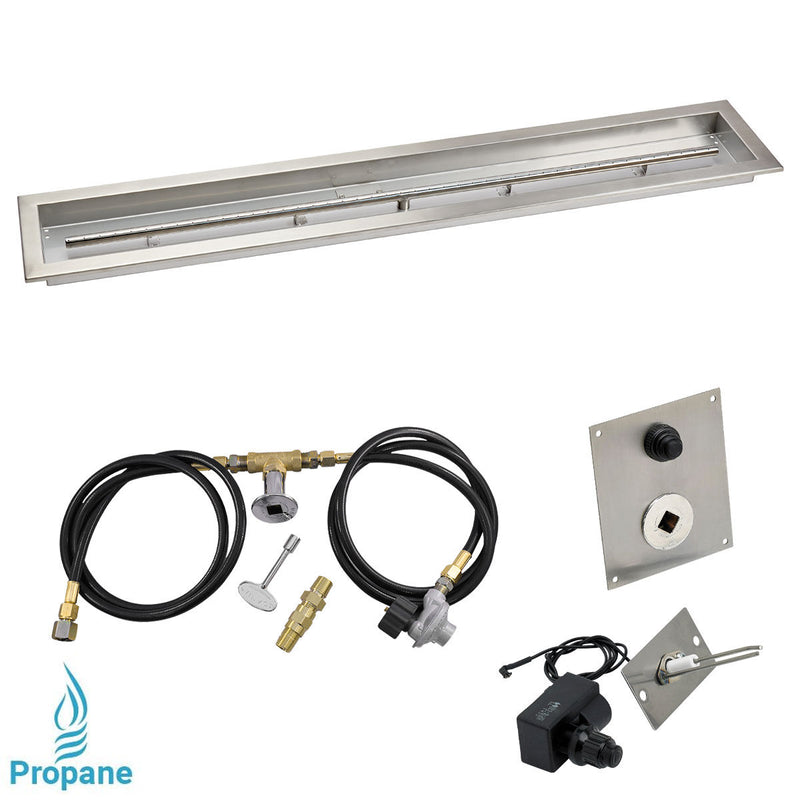

• Included Components
  • 48" x 6" Linear Channel Drop-In Pan
  • Built-In T-Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' Gas Hose
  • 5' Gas Hose
  • Propane Regulator
  • Chrome Key Valve with Key
  • Air Mixer
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
