American Fire Products 12" Round Stainless Steel Flat Pan with AWEIS System (6" Ring) - Whole House Propane

Create a beautiful and dependable outdoor fire feature with the American Fire Products 12" Round Stainless Steel Flat Pan with AWEIS System (6" Ring) - Whole House Propane. Designed for compact fire pit installations, this complete burner system combines a durable stainless steel flat pan, efficient 6" ring burner, and advanced electronic ignition technology for reliable operation and impressive flame performance.

The 12" round flat burner pan is crafted from 100% stainless steel, providing outstanding resistance to corrosion, extreme temperatures, and harsh outdoor conditions. Integrated weep holes help prevent water accumulation, ensuring long-lasting durability and performance.

At the center of the system is a 6" stainless steel ring burner capable of producing up to 88,000 BTU, delivering even flame distribution and efficient heat output. The included AWEIS (All Weather Electronic Ignition System) features hot surface ignition, automatic flame sensing, and weather-resistant performance for safe and reliable operation in whole house propane fire features.

Features

• Complete 12" round fire pit burner system with AWEIS electronic ignition
• Designed for whole house propane outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes 6" 304 stainless steel ring burner
• Advanced AWEIS electronic ignition system
• Reliable hot surface ignition with automatic flame sensing
• Burner delivers up to 88,000 BTU/hour
• Drilled burner ports help reduce whistling and burner noise
• Built-in weep holes prevent water accumulation
• Provides consistent and even flame distribution
• Compact design ideal for smaller fire pit installations
• Works best with 2"–4" of fire glass coverage
• Includes propane air mixer for whole house propane applications
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Recommended for certified NFI professional installation

Product Specifications

• Product Weight: 17 lbs
• Material: 100% Stainless Steel
• Color: Stainless Steel
• Pan Dimensions: 12" Round
• Burner Size: 6" Ring Burner
• Burner Material: 304 Stainless Steel (Handcrafted)
• Fuel Type: Whole House Propane
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet / Outlet Size: 1/2" FPT
• Burner Heat Rating: 88,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Ring Burner Features: Drilled burner holes to prevent whistling
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

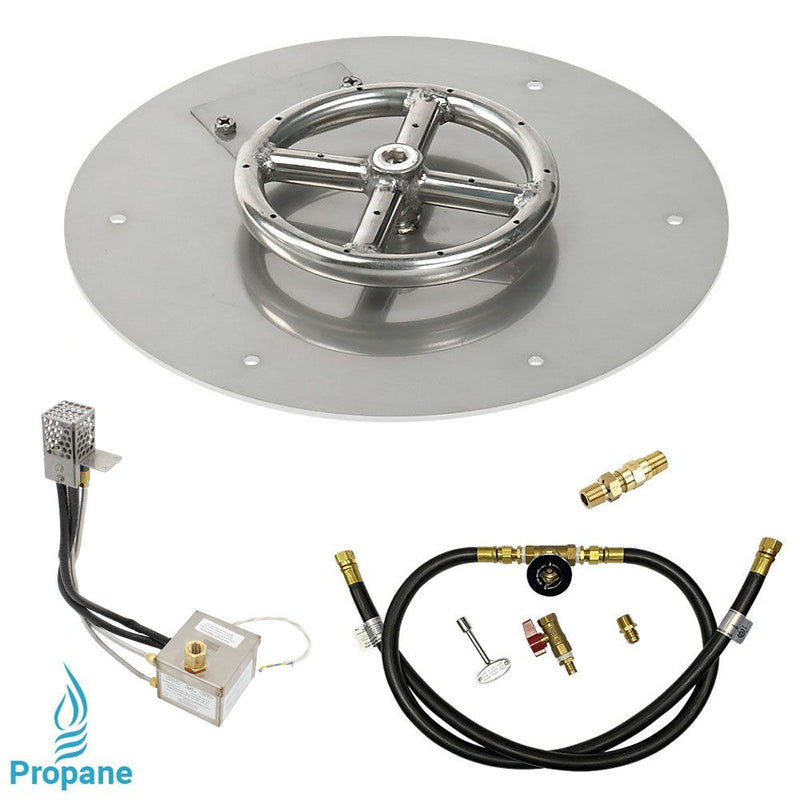

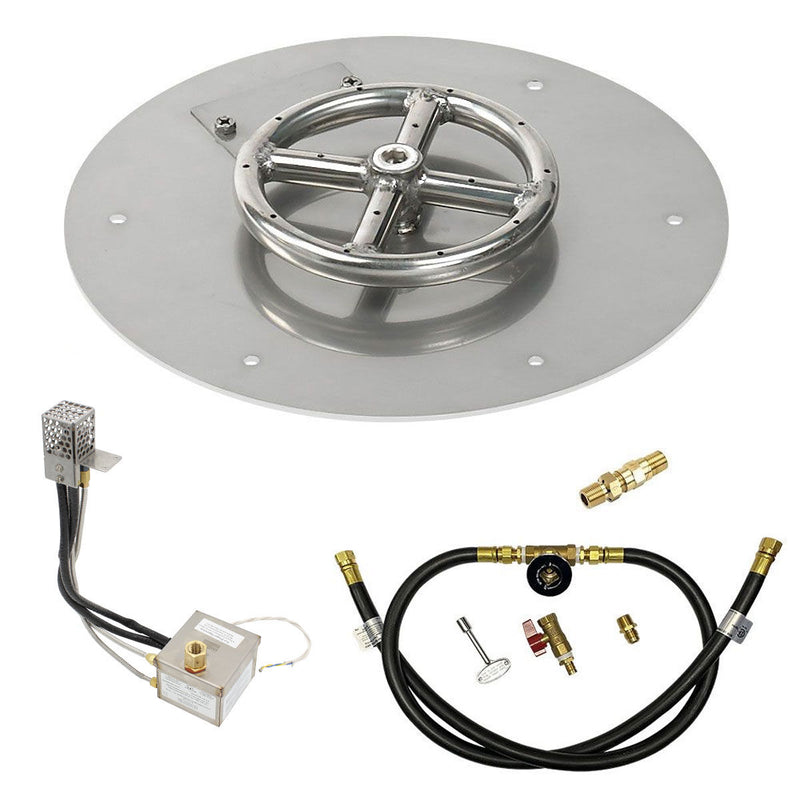

• Included Components
  • 12" Round Stainless Steel Flat Burner Pan
  • 6" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
