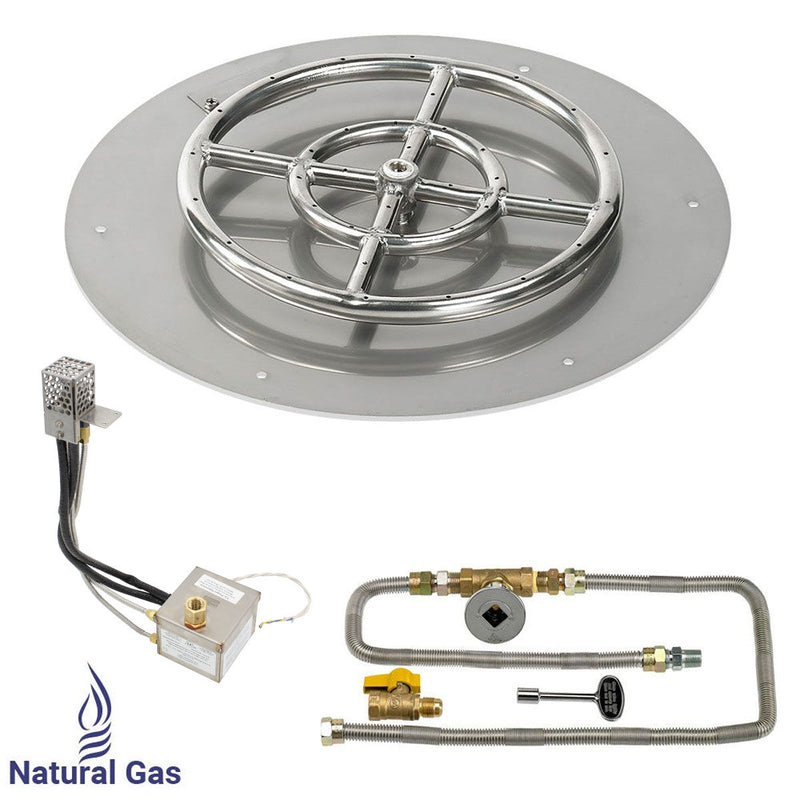

American Fire Products 18" Round Stainless Steel Flat Pan with AWEIS System (12" Ring) - Natural Gas

Enhance your outdoor fire feature with the American Fire Products 18" Round Stainless Steel Flat Pan with AWEIS System (12" Ring) - Natural Gas. Designed for durability, safety, and dependable performance, this complete fire pit burner kit combines a premium stainless steel flat pan, high-performance ring burner, and advanced electronic ignition system to create a beautiful and reliable flame display.

The 18" round flat burner pan is constructed from 100% stainless steel, offering exceptional resistance to corrosion, harsh weather conditions, and high temperatures. Built-in weep holes help prevent water accumulation and promote long-lasting outdoor performance.

Featuring a 12" stainless steel ring burner, this system produces up to 92,000 BTU of heat while delivering consistent flame distribution. The included AWEIS (All Weather Electronic Ignition System) provides dependable hot surface ignition, automatic flame monitoring, and enhanced safety for natural gas fire pit installations.

Features

• Complete 18" round fire pit burner system with AWEIS electronic ignition
• Designed for natural gas outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes 12" 304 stainless steel ring burner
• Advanced AWEIS electronic ignition system
• Reliable hot surface ignition with automatic flame sensing
• Burner delivers up to 92,000 BTU/hour
• Drilled burner ports help reduce whistling and burner noise
• Built-in weep holes prevent water accumulation
• Provides consistent and even flame distribution
• Works best with 2"–4" of fire glass coverage
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Compact ignition system ideal for fire features with limited installation space
• Recommended for certified NFI professional installation

Product Specifications

• Product Weight: 21 lbs
• Material: 100% Stainless Steel
• Color: Stainless Steel

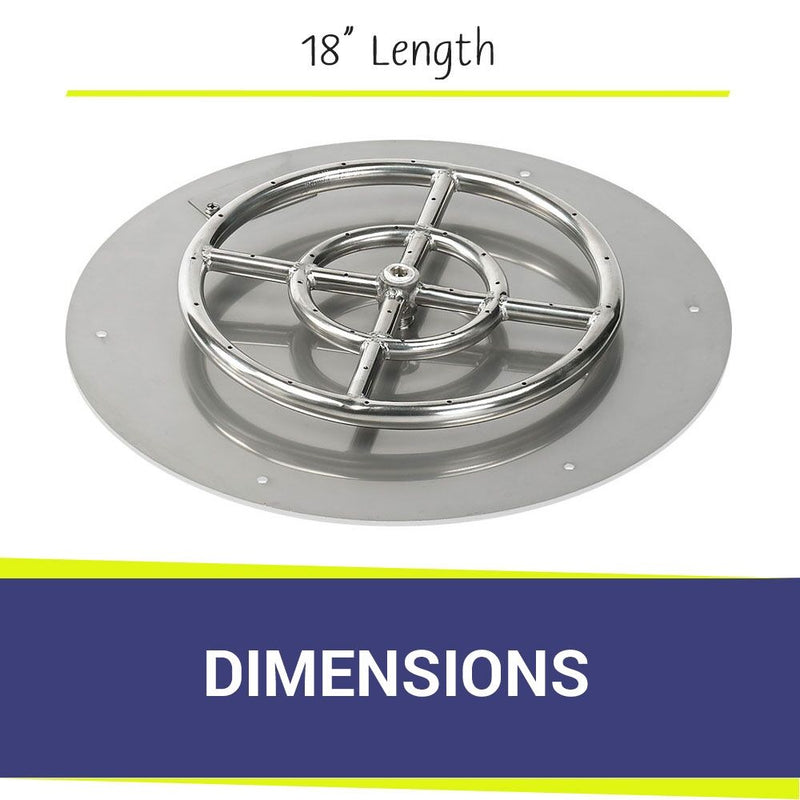

• Pan Dimensions: 18" Round
• Burner Size: 12" Ring Burner
• Burner Material: 304 Stainless Steel (Handcrafted)
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet / Outlet Size: 1/2" FPT
• Burner Heat Rating: 92,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Ring Burner Features: Drilled burner holes to prevent whistling
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

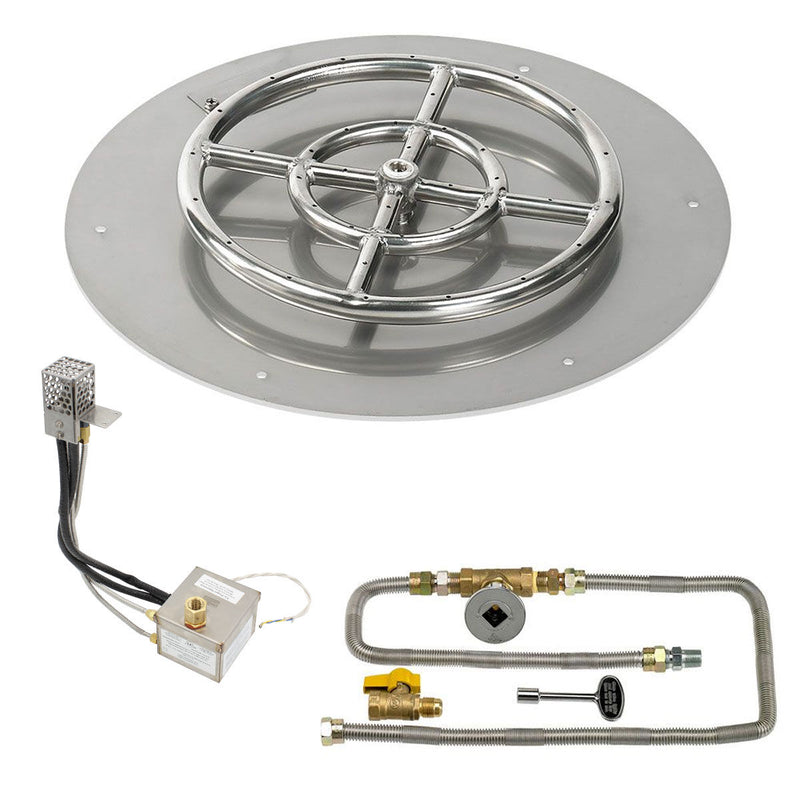

• Included Components
  • 18" Round Stainless Steel Flat Burner Pan
  • 12" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
