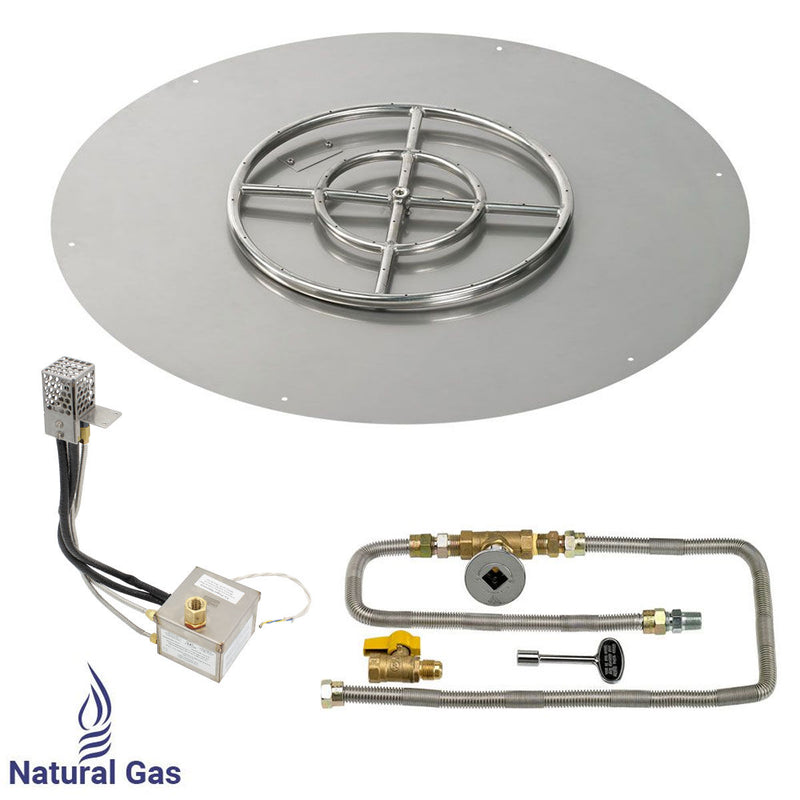

American Fire Products 30" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Natural Gas

Enhance your outdoor fire feature with the American Fire Products 30" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Natural Gas. This complete fire pit burner system is engineered for reliable ignition, strong flame performance, and long-lasting durability in outdoor, vented natural gas fire applications.

Built with a precision-designed stainless steel flat pan and a high-performance 18" ring burner, this system delivers consistent flame distribution and an efficient fire glass presentation. The integrated AWEIS (All Weather Electronic Ignition System) provides safe, automatic ignition with flame-sensing technology for dependable operation in all weather conditions.

The 30" stainless steel flat pan reduces the amount of fire glass required while creating a full, professional fire display. Constructed from premium stainless steel, it resists rust, corrosion, and heat damage, ensuring long-term performance in demanding outdoor environments. Built-in weep holes help prevent water buildup inside the pan.

The 18" stainless steel ring burner is engineered for smooth gas flow and even flame output. Its drilled burner ports reduce whistling noise and improve combustion efficiency, delivering a clean and visually balanced flame.

Features

• Complete 30" round fire pit burner system with AWEIS electronic ignition
• Designed for natural gas outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes 18" 304 stainless steel ring burner
• Advanced AWEIS electronic ignition system with flame sensing
• Safe hot surface ignition (glow plug) technology
• Produces up to 147,000 BTU/hour burner output
• Drilled burner ports reduce whistling and noise
• Built-in weep holes prevent water accumulation
• Efficient design reduces fire glass consumption
• Optimized flame performance with 2"–4" fire glass depth
• Includes full ignition and gas control components
• Recommended for certified NFI professional installation

Product Specifications

• Product Weight: 32 lbs
• Material: 100% Stainless Steel (Handcrafted)
• Color: Stainless Steel

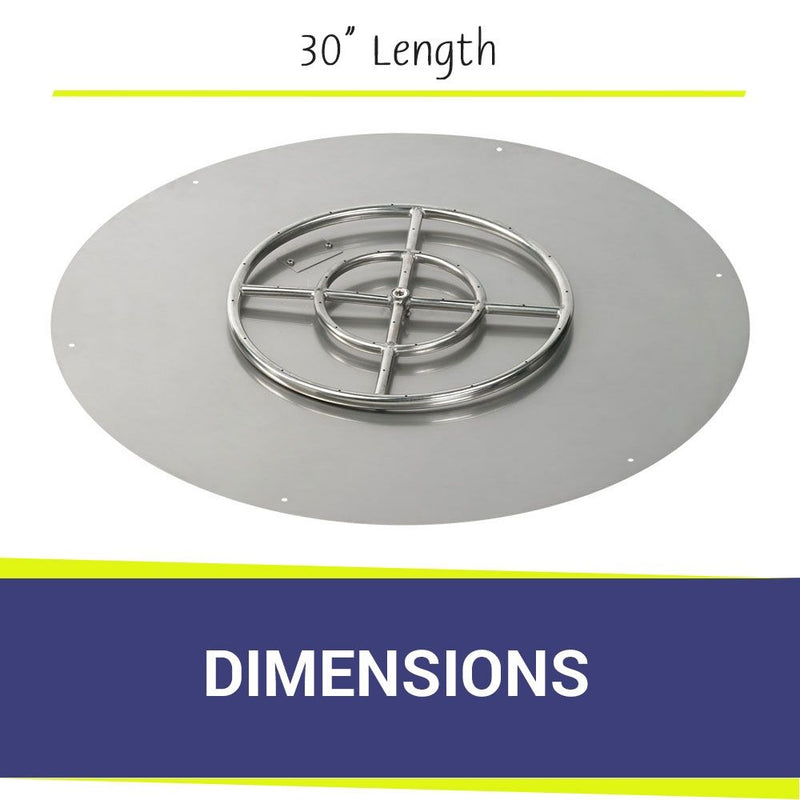

• Pan Dimensions: 30" Round
• Burner Size: 18" Ring Burner
• Burner Material: 304 Stainless Steel (Handcrafted)
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet / Outlet Size: 1/2" FPT
• Burner Heat Rating: 147,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Ring Burner Features: Drilled holes (not punched) to prevent whistling
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

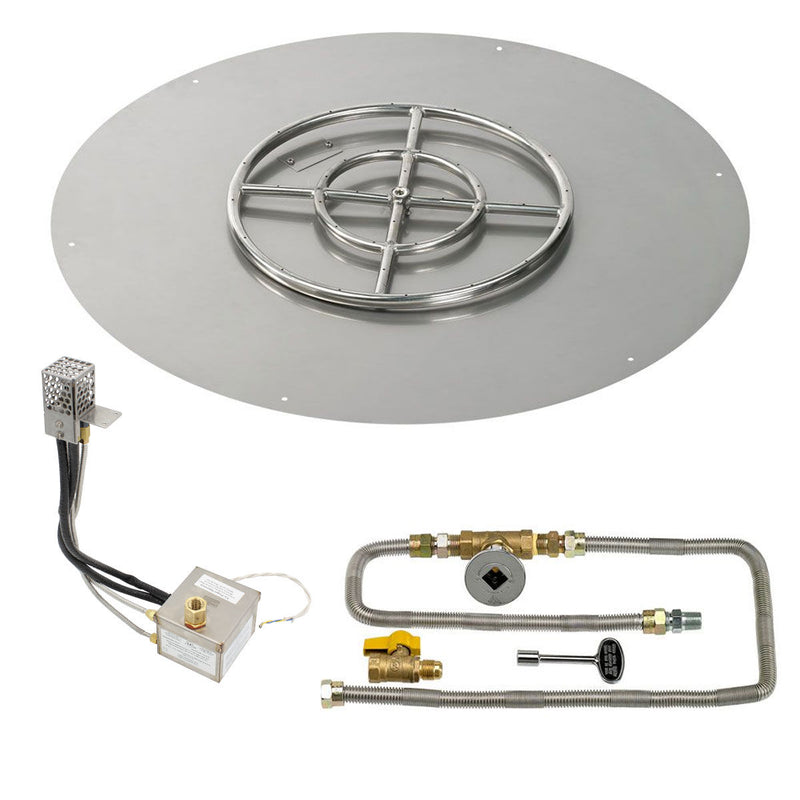

• Included Components
  • 30" Round Stainless Steel Flat Burner Pan
  • 18" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System (Natural Gas)
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
