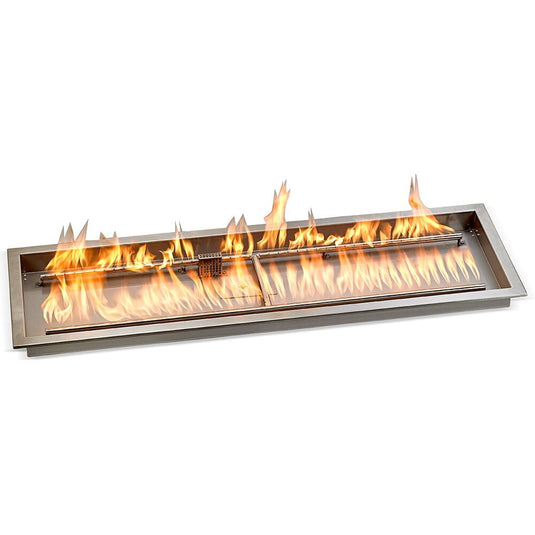

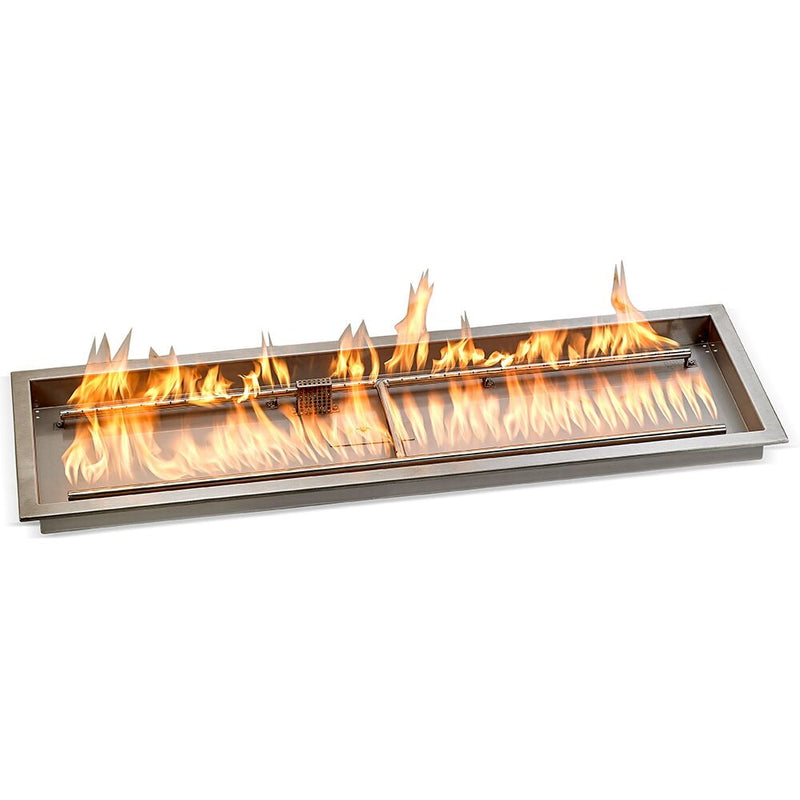

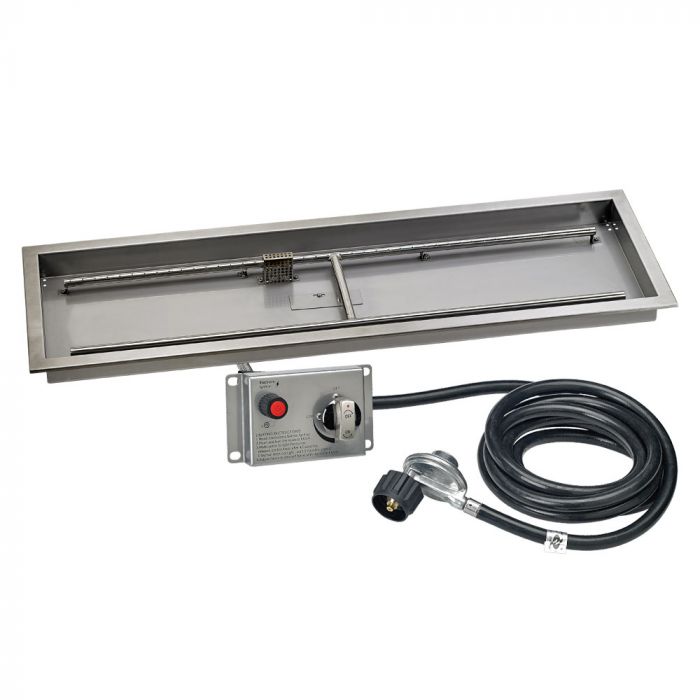

American Fire Products 48" x 14" Stainless Steel Rectangular Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified

Create a stunning outdoor fire feature with the American Fire Products 48" x 14" Stainless Steel Rectangular Drop-in Fire Pit Pan with Electric Ignition System Kit, CSA Certified. Designed for both residential and commercial applications, this complete fire pit burner system combines premium stainless steel construction, dependable ignition performance, and advanced safety features to deliver an impressive and reliable fire experience.

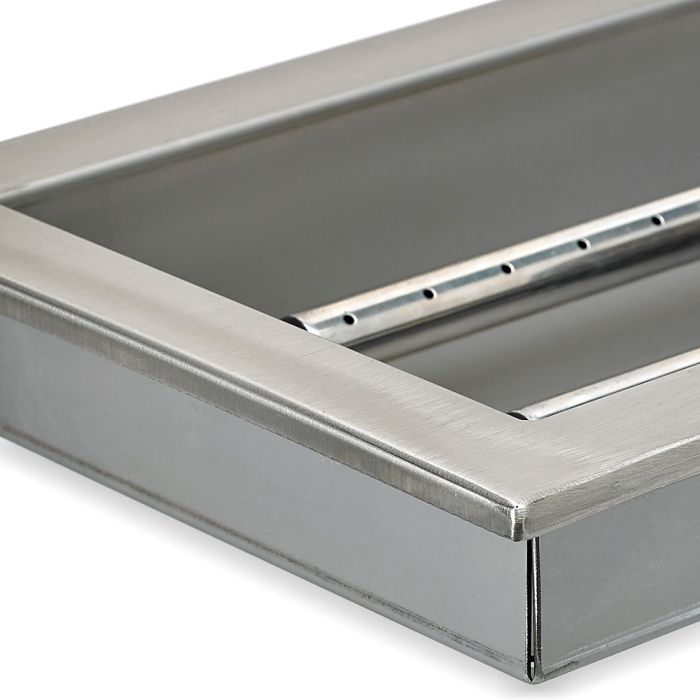

Constructed from handcrafted 304 stainless steel, the rectangular drop-in pan is engineered to withstand harsh outdoor conditions, resist corrosion, and provide years of dependable performance. The precision-drilled burner ports promote smooth flame distribution while minimizing unwanted whistling noises.

This CSA-certified fire pit system includes a push-button spark ignition system, flame-sensing thermocouple protection, and an adjustable flame control panel. If the flame is extinguished, the thermocouple automatically shuts off the gas supply for enhanced safety and peace of mind.

Shipped ready for propane installation and easily convertible to natural gas, this versatile fire pit kit is ideal for custom outdoor fire tables, backyard entertainment spaces, patios, and commercial landscape fire features.

Features

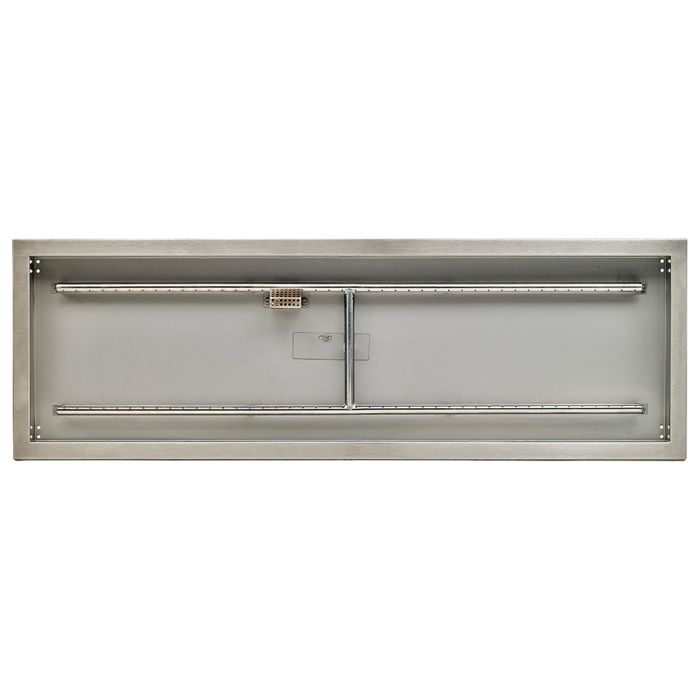

• Complete 48" x 14" rectangular drop-in fire pit burner system

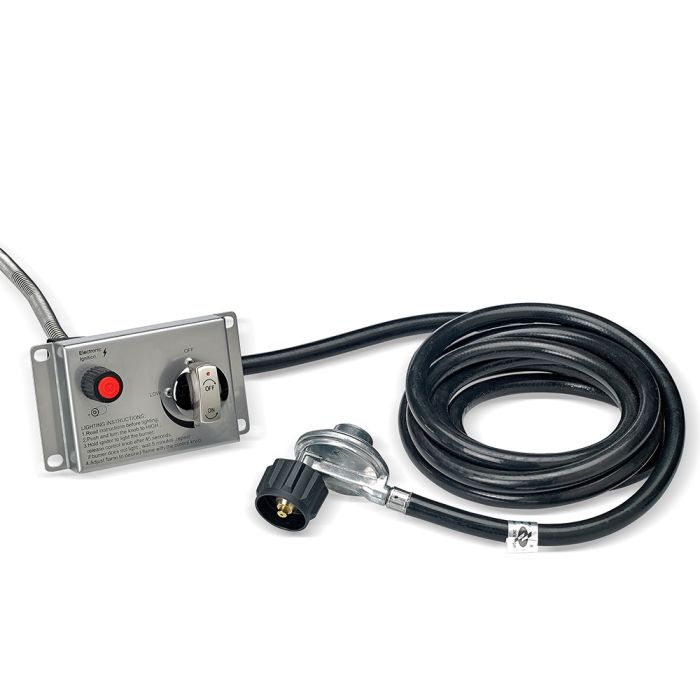

• Includes CSA Certified Electric Ignition System Kit
• Constructed from premium handcrafted 304 stainless steel
• Designed for outdoor vented natural gas or propane fire features
• Push-button spark ignition for fast and reliable startup
• Integrated thermocouple flame sensing safety system
• Automatic gas shut-off protection if flame is extinguished

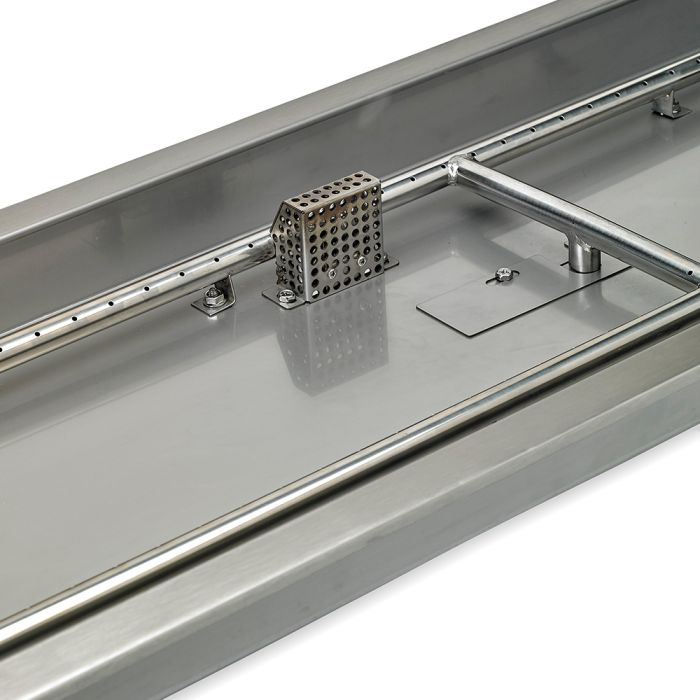

• Precision-drilled burner ports help reduce burner whistling
• Adjustable flame control for customized flame height
• Shipped ready for propane use and convertible to natural gas
• Ideal for fire tables, fire pits, patios, and outdoor living spaces
• CSA Certified for safety and performance compliance
• Recommended for certified NFI professional installation

Product Specifications

• Material: 100% 304 Stainless Steel (Handcrafted)

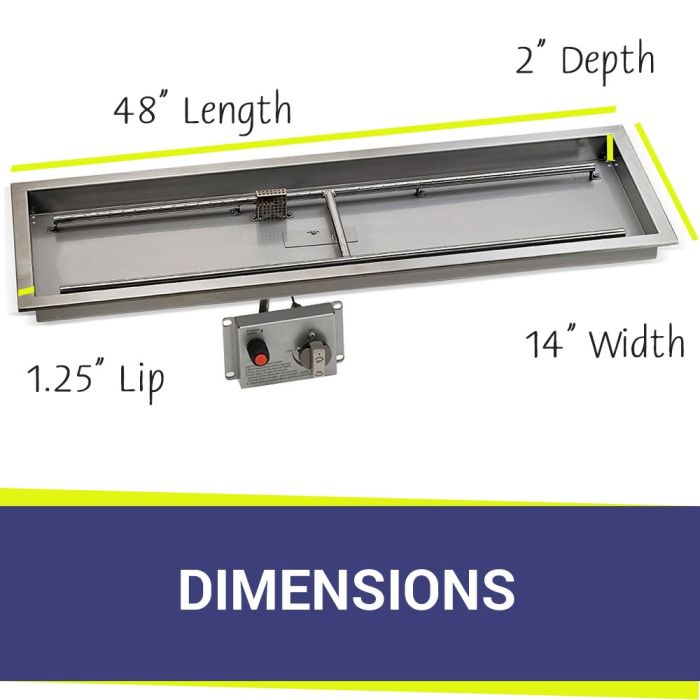

• Pan Dimensions: 48" x 14"
• Cutout Size: 49" x 15"

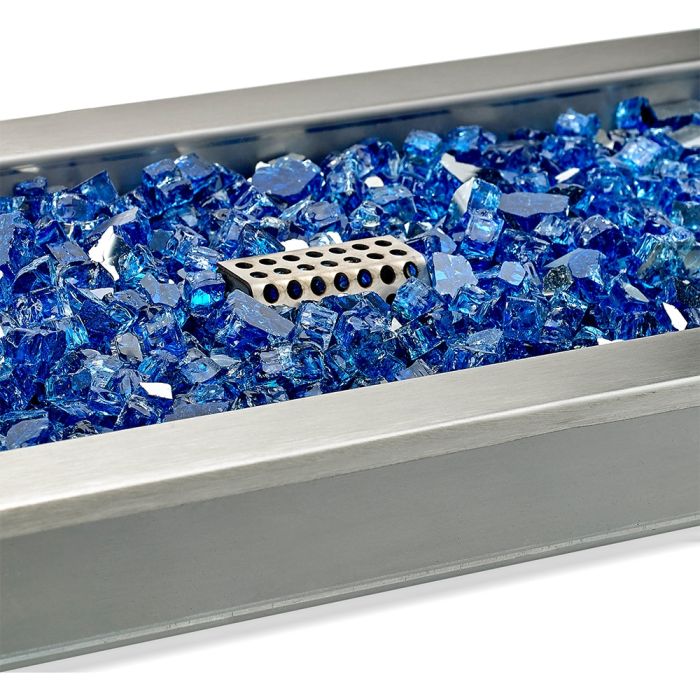

• Fire Glass Capacity: 80 lbs (not included)
• Burner Type: Rectangular Stainless Steel Burner
• Burner Features: Drilled burner holes (not punched) to prevent whistling
• Fuel Type: Propane (convertible to Natural Gas)
• Propane Heat Rating: 145,000 BTU/hour maximum

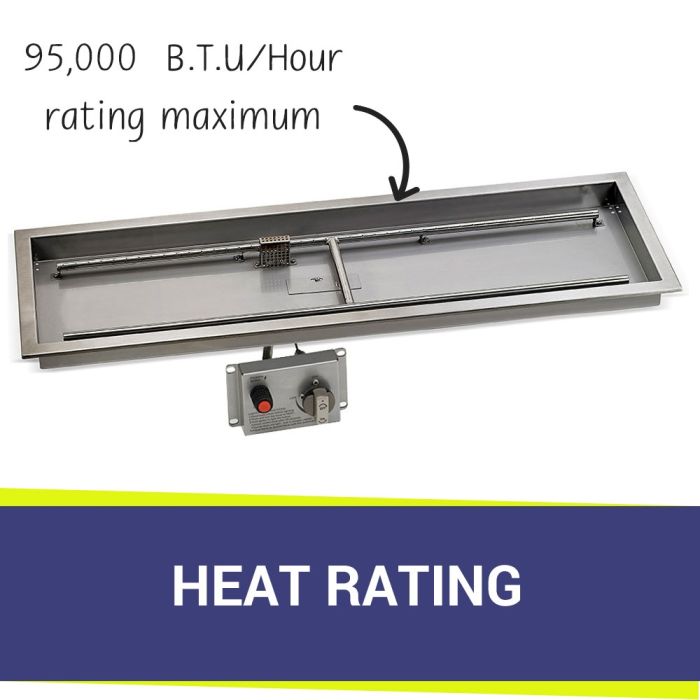

• Natural Gas Heat Rating: 95,000 BTU/hour maximum
• Ignition Type: Push Button Spark Ignition
• Ignition Sequence: Rapid-Fire Spark Ignition

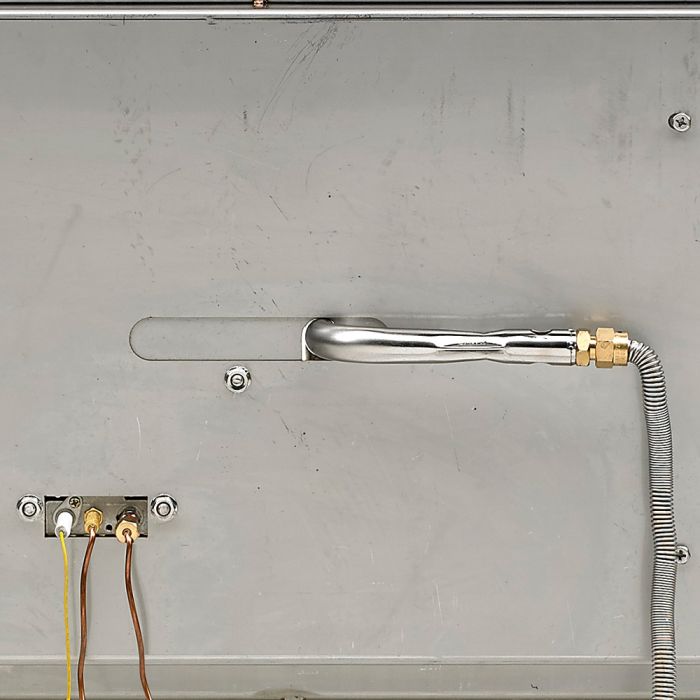

• Flame Sense: Thermocouple Automatic Gas Shut-Off
• Control System: Flame and Ignition Control Panel Included
• Battery Requirement: AA Battery
• Application: Outdoor vented natural gas or propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Certification: CSA Certified (ANSI Z21.97-2014 / CSA 2.41-2014 Outdoor Decorative Gas Appliance)
• Included Components
  • 48" x 14" Stainless Steel Rectangular Drop-In Fire Pit Pan

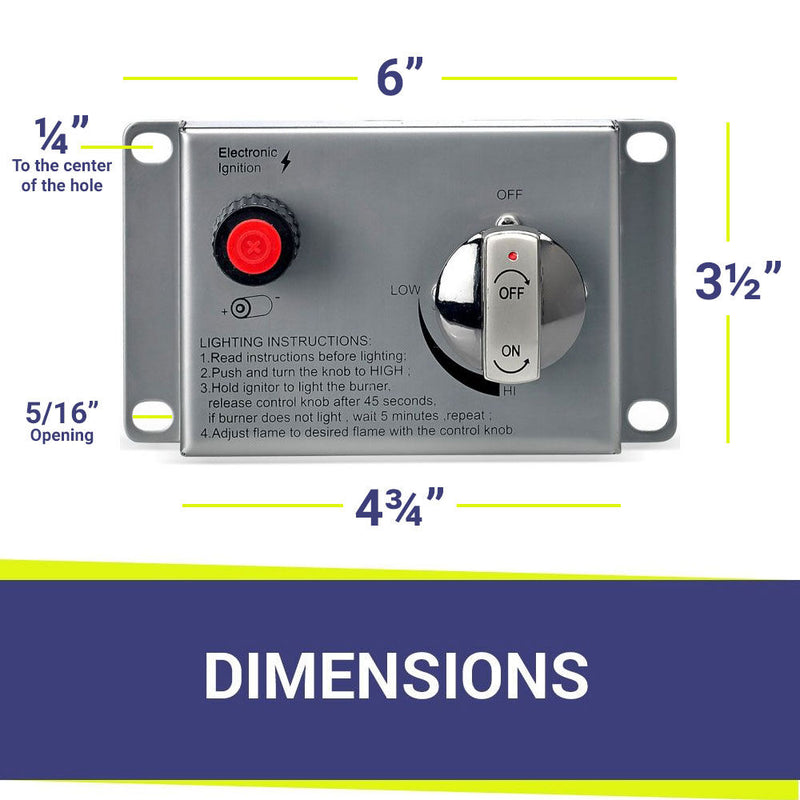

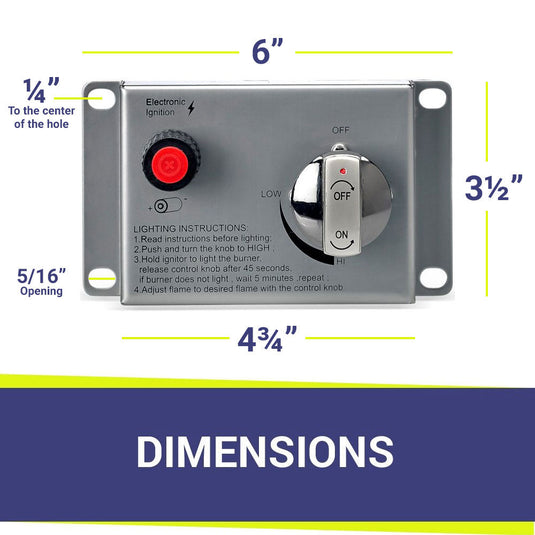

  • CSA Certified Ignition Control Panel
  • Flame Sensing Thermocouple Safety System

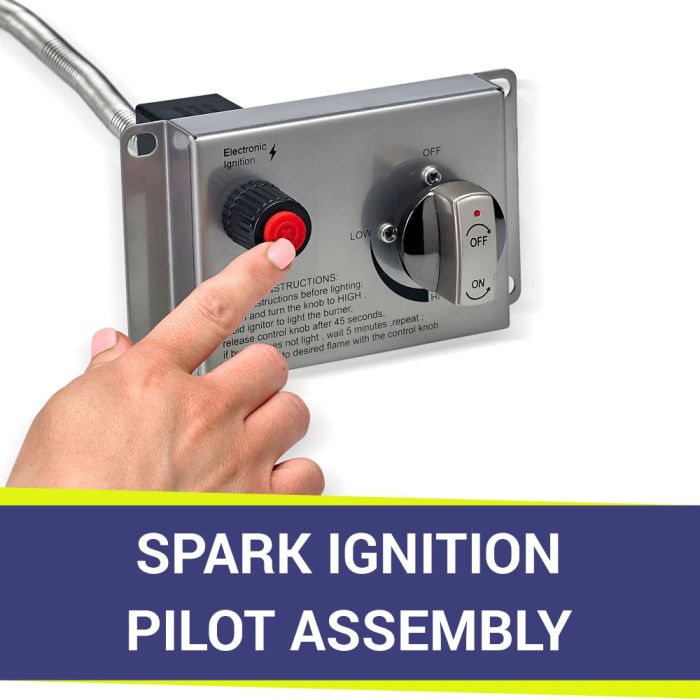

  • Push Button Rapid Spark Igniter
  • Adjustable Flame Control Assembly
  • Propane Gas Configuration (Natural Gas Convertible)
