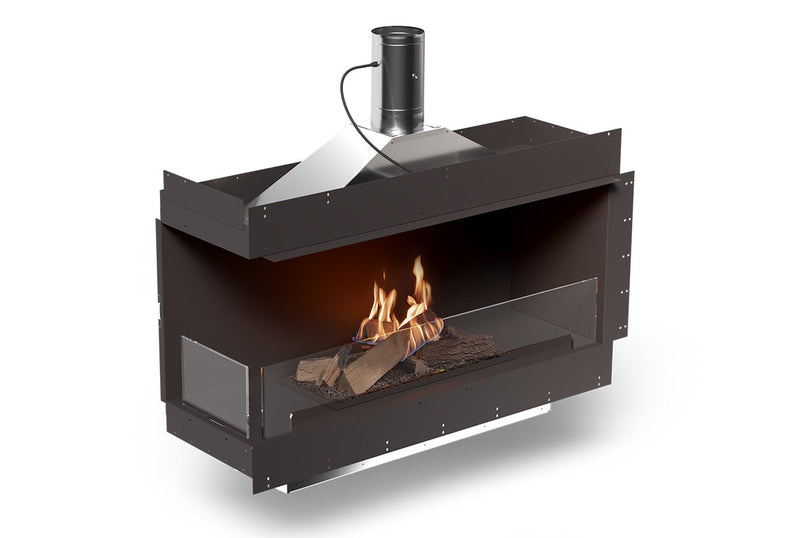

Planika Firebox 48” Left Corner Fireplace with FLA4 39” Logs and Flue Connection

The Planika Firebox 48” Left Corner Fireplace with FLA4 39” Logs and Flue Connection is a premium corner bioethanol fireplace designed to create a striking two-sided flame view in modern interiors. Powered by the advanced FLA4 39” Logs BEV® Burner, it delivers real, clean-burning flames with no smoke, ash, or chimney requirement thanks to Planika BEV® Technology.

The integrated flue connection system with built-in damper enhances installation flexibility while helping maintain indoor comfort by reducing unwanted air exchange. With its zero-clearance firebox design, this fireplace can be safely installed into combustible structures, including feature walls and media walls.

Controlled through the Planika BEV App, LCD touch panel, or optional remote, it offers full automation, 6-stage flame control, and smart safety monitoring—making it both a design statement and a high-performance heating solution.

Features

• Left corner design with elegant two-sided flame view
• Powered by FLA4 39” Logs BEV® Burner for real, clean flames
• Advanced BEV® Technology – no smoke, ash, or chimney required
• Integrated flue connection with damper for improved indoor comfort
• Zero-clearance firebox for safe installation in combustible structures
• Automatic refilling system with external pump for clean operation
• Full control via mobile app, LCD touch panel, or optional remote
• 6-stage flame height adjustment for precise ambiance control
• Built-in safety system: child lock, temperature monitoring, spillage detection, seismic sensors
• SHS smart home compatible
• Includes glass screens for added safety and stability
• Optional ceramic log decoration trays for a natural fireplace look

Product Specifications

• Fireplace Model: Firebox 48” Left Corner with Flue Connection
• Burner Model: FLA4 39” Logs BEV® Burner
• Fuel Type: Bioethanol 95–96.6%
• Fuel Tank Capacity: 5.5 L / 1.45 gal
• Maximum Burn Time: Up to 8 hours
• Maximum Heat Output: 7.0 kW / 23,885 BTU/h
• Flame Height Regulation: 6 levels
• Flue: Required (with connection and built-in damper)
• Zero-Clearance Firebox: Yes
• Air Change Rate: 1 room volume per hour
• Power Supply: 230 V / 115 V
• Finish: Black powder coating
• Materials: Steel, galvanized steel, tempered glass
• Installation: Indoor built-in use only
• Minimum Room Size: 70 m³ / 2,472 ft³
• Control Options: Planika BEV App (included), LCD touch panel (included), Remote (optional)
• Approx. Viewing Area: W: 1219 mm / 48” × H: 508 mm / 20” × D: 406 mm / 16”
• Warranty: 5 years

Downloads

• Techcard FLA4 39" [Download]
• Manual FLA4 [Download]
• Manual Tray with Stones [Download]
• Manual Tray with Logs [Download]
• Smart Home System (SHS) [Download]
