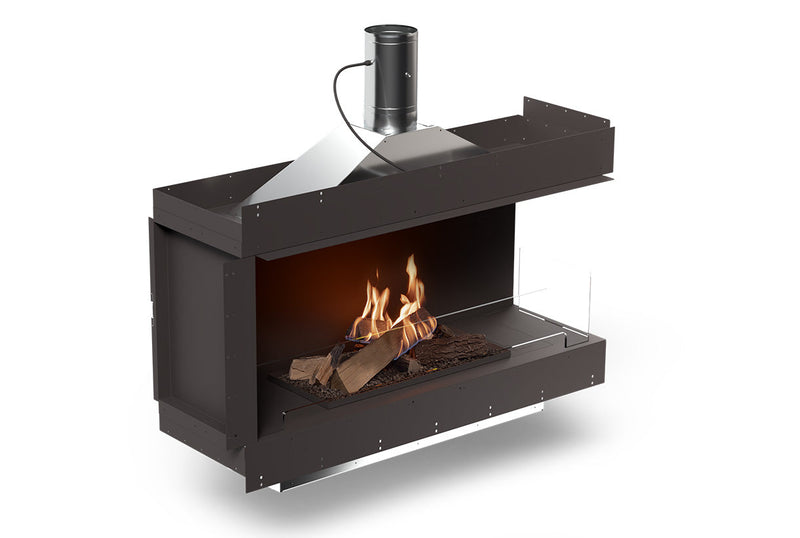

Planika Firebox 48” Right Corner Fireplace with FLA4 39” Logs and Flue Connection

The Planika Firebox 48” Right Corner Fireplace with FLA4 39” Logs and Flue Connection combines modern design with exceptional functionality. Featuring the FLA4 39” Logs BEV® Burner, this fireplace delivers real, clean-burning flames visible from two sides, creating a captivating focal point in any contemporary space.

The integrated flue connection with built-in damper ensures efficient airflow and temperature control, while the zero-clearance firebox allows safe installation in combustible structures or cabinetry. Operation is seamless via the Planika BEV App, LCD touch panel, or optional remote, with automatic refilling and comprehensive safety features for complete peace of mind.

Features

• Right corner design with two-sided flame view for striking visual impact
• Powered by FLA4 39” Logs BEV® Burner for real, clean flames
• BEV® Technology – smoke-free, ash-free, and chimney-free operation
• Flue connection with built-in damper for improved energy efficiency and comfort
• Zero-clearance firebox for safe integration into combustible materials
• Automatic refilling system with external pump for hassle-free operation
• Full control via mobile app, LCD touch panel, or optional remote
• 6-stage flame height adjustment for customized ambiance
• Advanced safety features: child lock, temperature monitoring, spillage detection, seismic sensors
• SHS smart home compatible
• Includes glass screens for enhanced safety
• Optional ceramic log trays for a natural, decorative fire effect

Product Specifications

• Fireplace Model: Firebox 48” Right Corner with Flue Connection
• Burner Model: FLA4 39” Logs BEV® Burner
• Fuel Type: Bioethanol 95–96.6%
• Fuel Tank Capacity: 5.5 L / 1.45 gal
• Maximum Burn Time: Up to 8 hours
• Maximum Heat Output: 7.0 kW / 23,885 BTU/h
• Flame Height Regulation: 6 levels
• Flue: Required (with connection and built-in damper)
• Zero-Clearance Firebox: Yes
• Air Change Rate: 1 room volume per hour
• Power Supply: 230 V / 115 V
• Finish: Black powder coating
• Materials: Steel, galvanized steel, tempered glass
• Installation: Indoor built-in use only
• Minimum Room Size: 70 m³ / 2,472 ft³
• Control Options: Planika BEV App (included), LCD touch panel (included), Remote (optional)
• Approx. Viewing Area: W: 1219 mm / 48” × H: 508 mm / 20” × D: 406 mm / 16”
• Warranty: 5 years

Downloads

• Techcard FLA4 39" [Download]
• Manual FLA4 [Download]
• Manual Tray with Stones [Download]
• Manual Tray with Logs [Download]
• Smart Home System (SHS) [Download]
