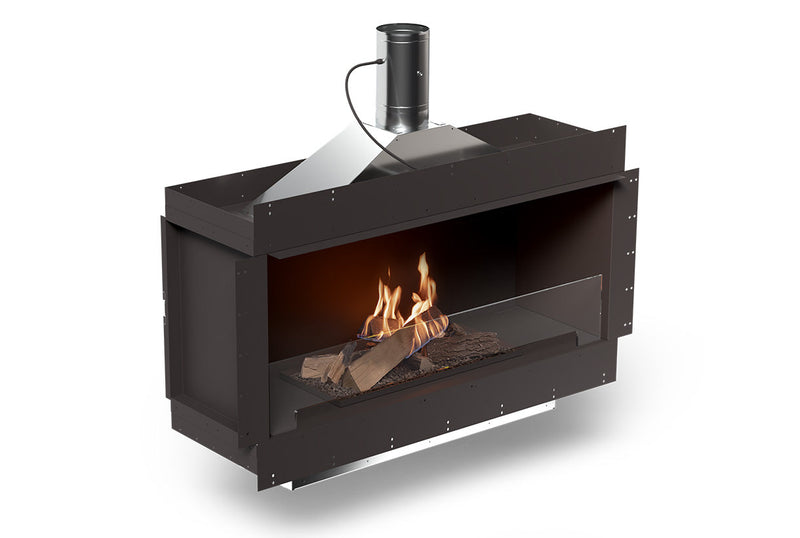

Planika Firebox 48” Single-Sided Fireplace with FLA4 39” Logs and Flue Connection

The Planika Firebox 48” Single-Sided with FLA4 39” Logs and flue connection is a luxury bioethanol fireplace combining modern design, panoramic flames, and versatile installation options. Equipped with the advanced FLA4 Logs Automatic BEV® Burner, it delivers clean-burning, real flames with zero smoke or ash.

The flue connection with a built-in damper ensures safe, efficient venting while preventing cold air from entering the room. Perfect for built-in or zero-clearance installations, this fireplace integrates beautifully into living rooms, media walls, or open-plan spaces. Control your flame height and monitor fuel levels via the LCD touch panel, Planika BEV App, or optional remote control, with automatic refilling for safe and convenient operation. Optional ceramic log trays enhance the natural aesthetic.

Features

• Single-sided design with striking panoramic flames
• Zero-clearance firebox for safe installation with combustibles and electronics
• FLA4 39” Logs BEV® Burner with clean-burning, real flames
• Flue connection included with built-in damper to prevent cold air entry
• Remote control, mobile app, and LCD touch panel for easy operation
• 6-stage flame height adjustment to set the perfect ambiance
• Automatic refilling system with external pump for spill-free operation
• Child lock, temperature monitoring, seismic sensors, and spillage detection for ultimate safety
• SHS compatible for smart home integration
• Glass screens included for protection and style
• Optional decorative ceramic log trays for a warm, natural look

Product Specifications

• Fireplace Model: Single-Sided with Flue Connection
• Burner Model: FLA4 39” Logs BEV® Burner
• Fuel Type: Bioethanol 95–96.6%
• Fuel Tank Capacity: 5.5 L / 1.45 gal
• Maximum Burn Time: Up to 8 hours
• Maximum Heat Output: 7.0 kW / 23,885 BTU/h
• Flame Height Regulation: 6 stages
• Flue: Required (connection included, built-in damper)
• Zero-Clearance Firebox: Yes
• Air Change Rate: 1 room volume per hour
• Power Supply: 230 V / 115 V
• Finish: Black powder coating
• Materials: Steel, galvanized steel, tempered glass
• Installation: Built-in, indoor use only
• Minimum Room Size: 70 m³ / 2,472 ft³
• Control Options: Planika BEV App (included), Touch panel (included), Remote control (optional)
• Approx. Viewing Area: W: 1219 mm / 48” × H: 508 mm / 20” × D: 406 mm / 16”
• Warranty: 5-year warranty

Downloads

• Techcard FLA4 39" [Download]
• Manual FLA4 [Download]
• Manual Tray with Stones [Download]
• Manual Tray with Logs [Download]
• Smart Home System (SHS) [Download]
