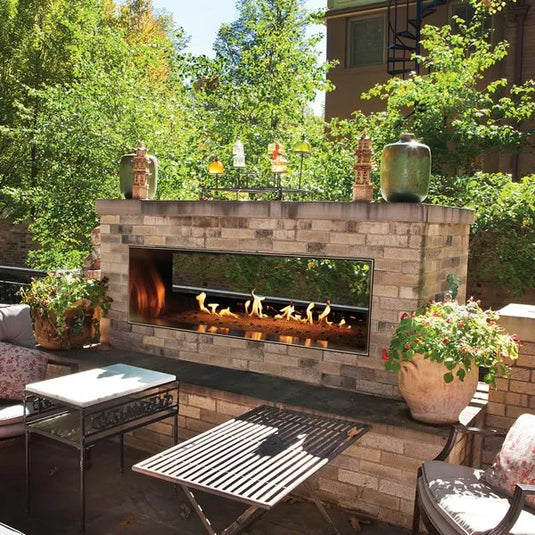

The Empire Carol Rose 60" Linear See-Through Outdoor Gas Fireplace creates a contemporary two-sided fire feature for outdoor living spaces. Its open see-through configuration provides a view of the linear flame display from both sides, making it well suited for outdoor room dividers, patios, covered porches, and other properly ventilated outdoor installations.
A stainless steel linear burner produces up to 65,000 BTU, while manual three-stage flame control allows the fire to be adjusted between high, medium, and low settings. Push-button electronic ignition uses an AA battery, and a thermocouple flame-sensing safety system shuts off the gas supply if the flame is lost.
Integrated multi-color LED lighting illuminates the decorative media from beneath the burner. The lighting system provides seven individual colors, adjustable brightness, and rapid or gradual automatic color cycling, allowing the fireplace to create visual interest with or without the burner operating.
The 60-inch Carol Rose See-Through Fireplace requires 10 sq. ft. of compatible decorative crushed glass, sold separately. Standard weather deflector glass panels are included to help protect the flame from wind, while optional taller deflector glass is available for more exposed locations.
Optional accessories include stainless steel weather doors, a stainless steel drain tray, taller wind-deflector glass panels, decorative accent media, gas supply timer components, and fuel conversion kits.
Features
- 60-inch linear see-through outdoor gas fireplace
- Two-sided fire presentation for outdoor installations
- Maximum heat output of 65,000 BTU
- Manual three-stage flame adjustment with high, medium, and low settings
- Electronic push-button ignition powered by an AA battery
- Thermocouple flame-sensing safety system
- Integrated multi-color LED lighting beneath the burner
- Seven selectable LED colors with adjustable brightness
- Rapid and gradual automatic LED color-cycle modes
- Weather deflector glass panels included
- High-grade stainless steel construction for outdoor applications
- Available for Natural Gas or Propane
- Designed and certified for outdoor use only
Product Specifications
- Brand: Empire Comfort Systems
- Collection: Carol Rose Coastal Collection
- Product Type: Linear See-Through Outdoor Gas Fireplace
- Nominal Size: 60"
- Natural Gas Model: OLL60SP12SN
- Propane Model: OLL60SP12SP
- Installation Configuration: See-Through / Two-Sided
- Fuel Type: Natural Gas or Propane
- Maximum Input: 65,000 BTU/h
- Minimum Input – Natural Gas: 39,000 BTU/h
- Minimum Input – Propane: 37,000 BTU/h
- Ignition: Manual Electronic Ignition with AA Battery
- Flame Control: High / Medium / Low
- Gas Inlet: 1/2" NPT

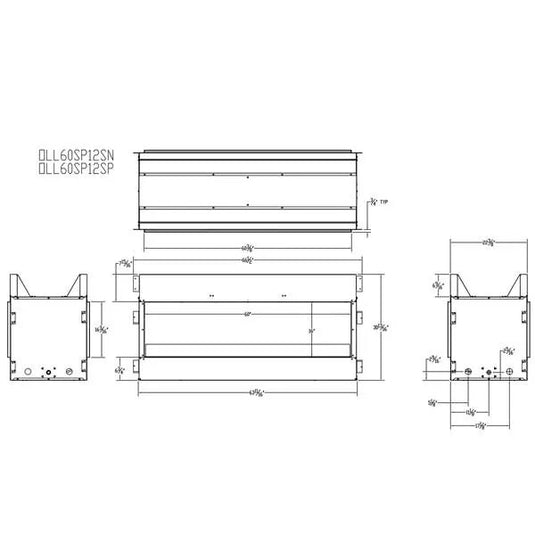

- Fireplace Opening: 60"W x 16 3/16"H
- Maximum Firebox Face Width: 63 3/4"
- Maximum Firebox Face Height: 30 7/8"
- Maximum Firebox Depth: 22 1/2"

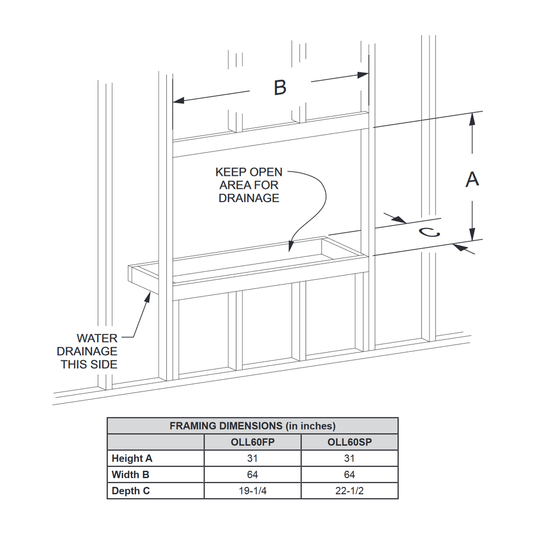

- Minimum Framing Width: 64"
- Minimum Framing Height: 31"
- Minimum Framing Depth: 22 1/2"
- Listed Weight: 296 lb
- Required Media: 10 sq. ft. of compatible decorative crushed glass
- Electrical Requirement: 120V GFI power supply for LED lighting
- Certification: ANSI Z21.97 / CSA 2.41 for Outdoor Gas Fireplaces
- Installation Location: Outdoor use only
Required to Complete
10 sq. ft. of compatible decorative crushed glass is required and sold separately. Select the required crushed glass media when configuring the fireplace.
Installation Notes
This fireplace is intended for outdoor installation in a properly ventilated area and must not be installed in an enclosed building, garage, or other enclosed space. Water drainage must be provided beneath the fireplace. An optional stainless steel drain tray is available, or another suitable drainage method must be incorporated into the installation.
Always follow the current Empire installation instructions and applicable local codes. Installation and gas connections should be completed by a qualified professional.
Downloads
- Empire OLL60FP/SP Installation & Owner's Manual [Download]
- Empire OLL60SP 60" See-Through Fireplace Specification Sheet [Download]
