The HEATSTRIP® Classic is a premium, slimline electric radiant heater designed for both indoor and protected outdoor spaces. With its sleek black design, energy-efficient operation, and corrosion-resistant build, it provides gentle, effective warmth in areas such as alfresco spaces, pergolas, patios, cafés, and hard-to-heat indoor environments. Available in two powerful models—2400W and 3200W—this heater ensures reliable performance in residential and commercial settings.
Features
- Sleek and unobtrusive black front profile complements any space.
- Efficient electric radiant heating for protected alfresco areas, patios, and indoor spaces.
- Two models available: X-THH2400US-A (2400W) & X-THH3200US-A (3200W).
- Corrosion-resistant for durability in various environments.
- Ideal mounting height: 2.1m – 2.5m (7 – 8ft); maximum height: 2.7m (9ft).
- Multiple mounting options: ceiling, angled wall mount, flush mount, suspended via chains or poles.
- Spot heating for optimal warmth in specific areas.
- IP55-rated construction for durability.
- Warranty: 3 years residential, 1 year commercial.
Product Specifications
| Model | Voltage (V) | Power (W) | Current (A) | Dimensions (mm/in) | Weight (kg/lb) | Connection | Heating Area (m²/ft²) |
|---|---|---|---|---|---|---|---|
| X-THH2400US-A | 240 | 2400 | 10 | 1364 x 165 x 48mm (53.7 x 6.5 x 1.9in) | 7kg (15lb) | Gang Box | 4-5m² (43-54ft²) |
| X-THH3200US-A | 240 | 3200 | 13.3 | 1774 x 165 x 48mm (69.8 x 6.5 x 1.9in) | 9kg (20lb) | Gang Box | 5-6m² (54-65ft²) |

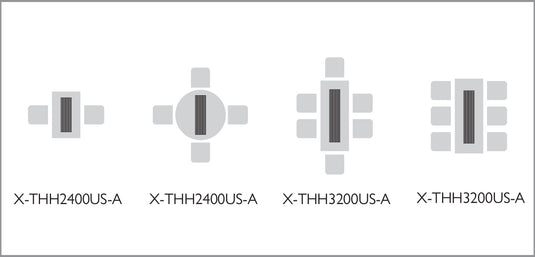

Positioning
For optimal heating, HEATSTRIP® Classic should be positioned to spot heat areas such as dining tables, seating areas, or workspaces. The heater works best when mounted at an ideal height of 2.1m – 2.5m (7 – 8ft) and in a protected outdoor space with minimal wind exposure. Café blinds, walls, or enclosures help enhance heat retention.
Coverage Based on Installation Environment:
| Model | Indoor Protected (m²/ft²) | Outdoor Enclosed (m²/ft²) | Outdoor Exposed (m²/ft²) |
|---|---|---|---|
| X-THH2400US-A | 6m² / 64.6ft² | 4.8m² / 51.7ft² | 4m² / 43ft² |
| X-THH3200US-A | 8m² / 86.1ft² | 6.4m² / 68.9ft² | 5.3m² / 57ft² |
For higher mounting positions (above 2.5m), it’s recommended to use chains or extension poles to bring the heater within the ideal range.
Mounting Options
- Ceiling-mounted (ideal placement for even heat distribution).
- Angled wall-mounted (for targeted spot heating).
- Flush-mounted (seamless integration into ceilings).
- Suspended via chains or poles (for height adjustments).
- Mounted end-to-end or in pairs for extended coverage.
Ensure optimal performance by maintaining the recommended mounting height and considering additional accessories like chains or extension poles for higher installations.
Downloads
- Heatstrip Brochure [Download]
- Classic X-THHUS-A Product Manual [Download]
- Flush Mount Manual [Download]
