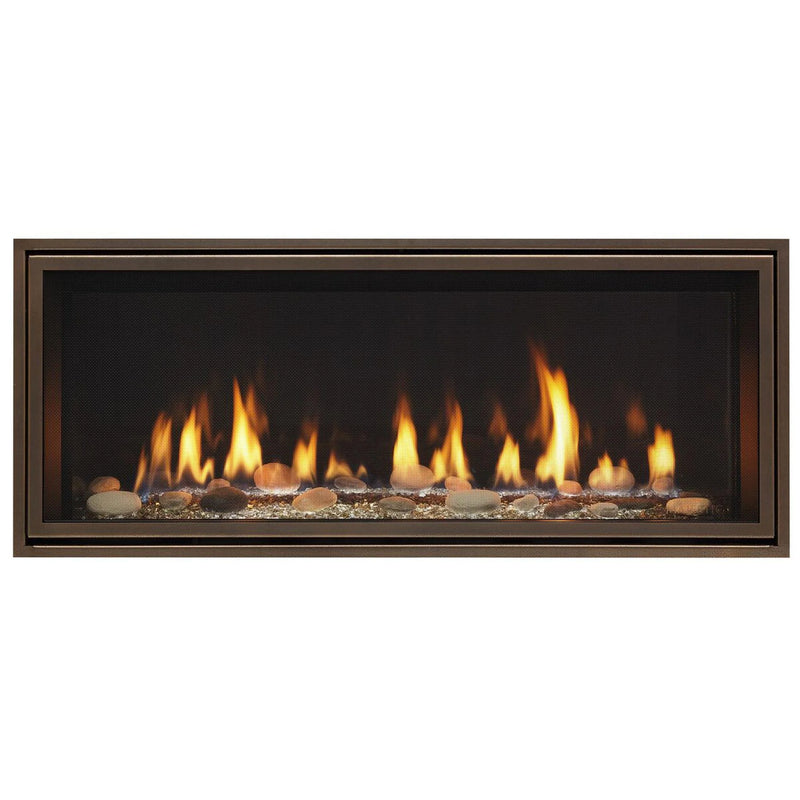

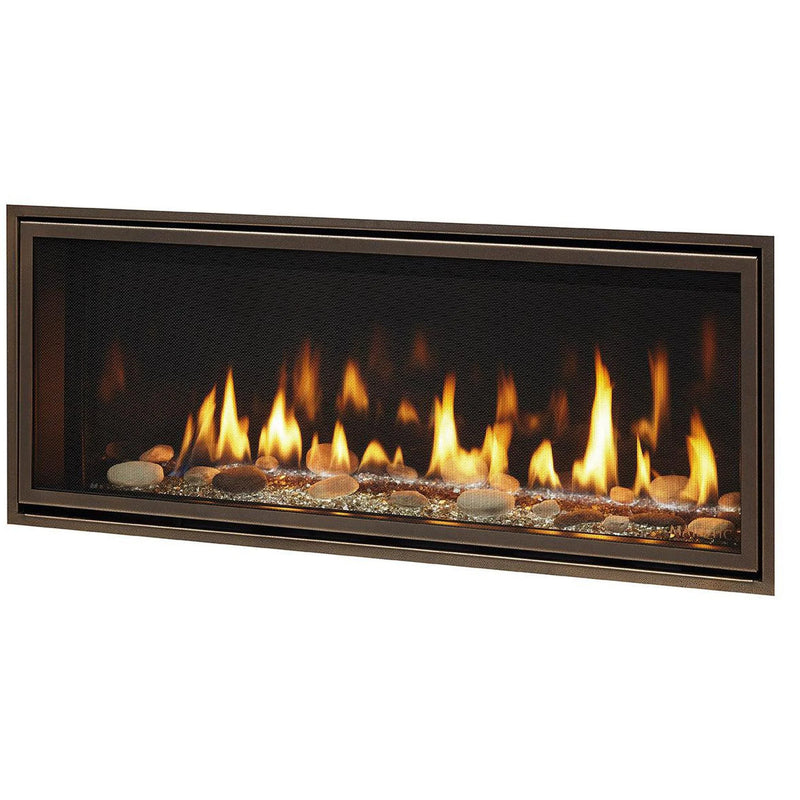

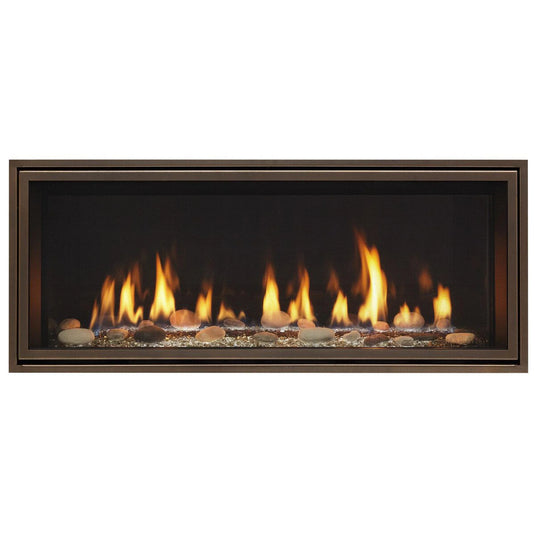

Majestic Echelon II 36" Linear Contemporary Direct Vent Natural Gas Fireplace With IntelliFire Touch Ignition System

Create unforgettable moments at home with the Majestic Echelon II 36" Linear Direct Vent Gas Fireplace, a contemporary centerpiece designed for modern living. This premium fireplace combines active flames, LED-illuminated glass media, and advanced IntelliFire Touch® technology to deliver both stunning visuals and effortless control.

The Echelon II series offers a sleek, linear profile with crystal-clear ceramic glass and integrated dimmable LED lighting that enhances the ember bed—even when the fire is off. With customizable interior options and smart ignition control, this fireplace provides elegance, ambiance, and reliable performance year-round. Whether relaxing alone or entertaining guests, the Echelon II transforms your living space into a sophisticated retreat.

Note: Not available for sale in Rhode Island.

Key Features

• Linear Contemporary Design – Sleek, modern profile ideal for today’s interiors
• Direct Vent Technology – Safely and efficiently vents combustion exhaust outdoors
• IntelliFire Touch® Ignition System – Advanced electronic ignition with smart control options
• RC400 Remote Control Included – Touchscreen remote for flame, lighting, and system control
• LED Ember Bed Glow – Dimmable LED lights create a brilliant glass-enhanced ambiance
• Battery Backup – Ensures reliable operation during power outages
• Bronze Glass Media Included – Adds warmth and contemporary visual appeal
• Customizable Interior Options – Compatible with reflective glass panels, driftwood logs, stones, and glass media
• Optional Heat Management Systems – Direct warmth to additional areas of the home
• Single-Sided or See-Through Options Available – Echelon II series flexibility (36" single-sided model listed here)

Product Specifications

• Model: Echelon II 36 Rev C
• Item Number: ECHEL36IN-C
• Fuel Type: Natural Gas (Propane convertible)
• Viewing Area: 35-1/2" W × 12-1/2" H
• BTU Input:
  • 30,000 BTU (Natural Gas)
  • 27,000 BTU (Propane)
• Heating Capacity: Up to 700 sq. ft.
• Unit Width: 46-3/16"
• Unit Height: 41-3/4"
• Unit Depth: 17-1/8"
• Framing Height: 42"
• Framing Depth: 18-1/4"
• Framing Front Width: 48-1/4"
• Framing Back Width: 48-1/4"

What’s Included

• Fireplace unit
• Clear LED dimmable lighting system
• RC400 IntelliFire Touch® remote control
• Battery backup system
• Ceramic glass
• Standard bronze glass media
• IntelliFire Touch® electronic ignition system

Not Included (Required or Optional – Sold Separately)

• Non-operable fireplace fronts (required to complete installation)
• LP (propane) conversion kit
• Interior liner kits
• Heat management systems
• Header & riser
• Linear legs
• Additional controls, remotes, or wall switches
• Venting components
• Media Requirements (If Changing Media)
  • Crushed Glass: 3 bags
  • Natural Stones: 2 bags
  • Log Set & Stones: 1 bag of stone

Venting Information

• Requires 8" DVP vent pipe
• Minimum 18" vertical vent required before attaching a 90° elbow
• Approved for use with PVLP-SLP, PVI-SLP-B, and PVV-SLP systems
• Power vent wire harness and IFT-RC400 remote required for approved power vent configurations (sold separately)
• Refer to the installation manual for complete venting requirements

Downloads

• Echelon II Series Brochure [Download]
• Echelon II Series Installation Manual [Download]
• Echelon II Series Owner's Manual [Download]
• Warranty Guide [Download]
• ECHEL36IN-C Service Parts [Download]
• ECHEL36IN-C Architect Guide [Download]
• HEAT-OUT-GAS - Installation Instructions [Download]
• HEAT-ZONE-GAS - Installation Instructions [Download]
• Heat-Zone-Gas Adapter - Installation Instructions [Download]
• Ducted Passive Heat Kit (Front Discharge) - Installation Instructions [Download]

• Ducted Passive Heat Kit (Side Discharge) - Installation Instructions [Download]
• Passive Heat Trim Kit (PH-SIDETRIM) - Installation Instructions [Download]
• Passive Heat Kit (PH-FRONT / PH-SIDE) - Installation Instructions [Download]

• Power Vent Low Profile (PVLP-SLP) - Installation Instructions [Download]
