Create a dedicated space for high-temperature searing in your outdoor kitchen with the Napoleon Built-In 700 Series 10-Inch Single Infrared Burner. Available in natural gas and propane configurations, this compact drop-in burner gives you an additional cooking surface for steaks, chops, and other foods that benefit from intense heat. Its matte black cover adds a distinctive finishing touch to a custom outdoor cooking station.
Powered by Napoleon's infrared SIZZLE ZONE system, the burner delivers 10,000 BTUs and can reach temperatures up to 1,800°F. The separate cooking surface makes it possible to sear food at high heat while using your main grill for other dishes. A 7.5 mm stainless steel WAVE cooking grid provides a sturdy cooking surface with Napoleon's signature curved pattern.
The burner combines stainless steel construction with a streamlined built-in design that fits naturally into outdoor kitchen countertops. JETFIRE ignition makes startup convenient, while the illuminated SafetyGlow control knob changes from blue to red when the burner is operating. Choose the natural gas or propane model to match your outdoor kitchen's fuel supply and enjoy the convenience of a dedicated infrared searing station.

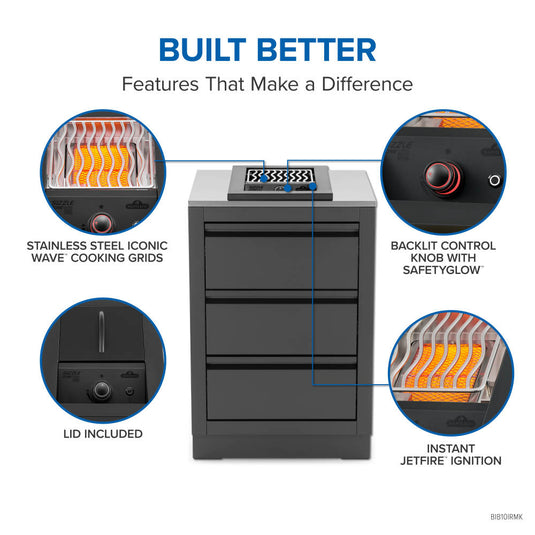

Features

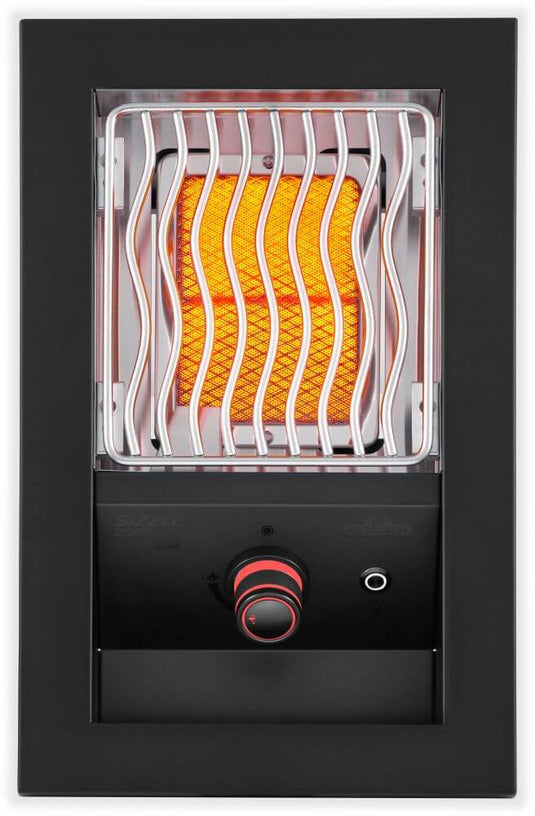

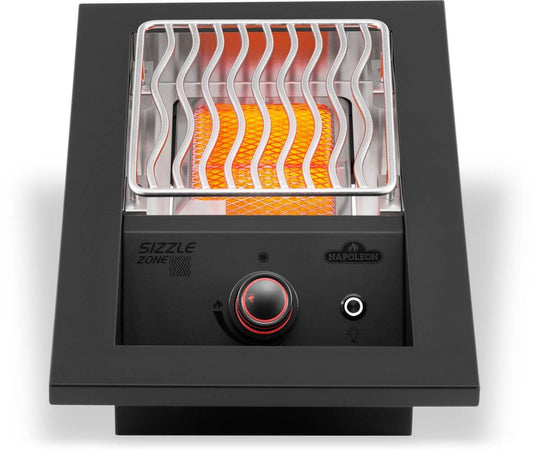

- Infrared SIZZLE ZONE Burner: Creates a dedicated high-heat cooking area for searing meat and preparing other grilled dishes.
- 10,000 BTU Heat Output: Delivers concentrated cooking power through a single infrared burner.
- Temperatures Up to 1,800°F: Provides the intense heat needed for rapid, high-temperature searing.
- Two Fuel Options: Available in separate natural gas and propane configurations to suit different outdoor kitchen setups.

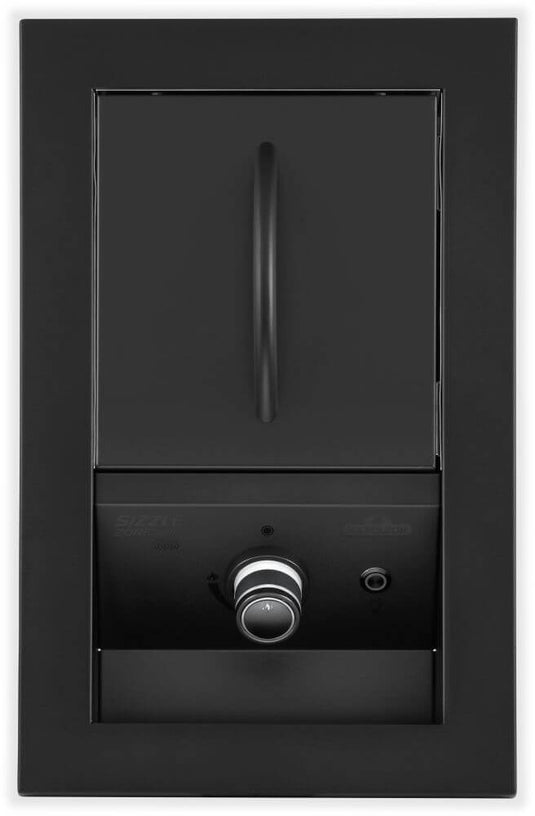

- Matte Black Cover: Adds a coordinated finishing touch to modern outdoor cooking installations.
- Stainless Steel Construction: Combines durable materials with a design intended for outdoor kitchen integration.

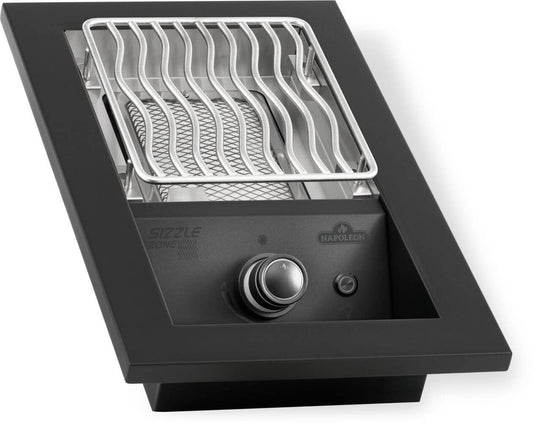

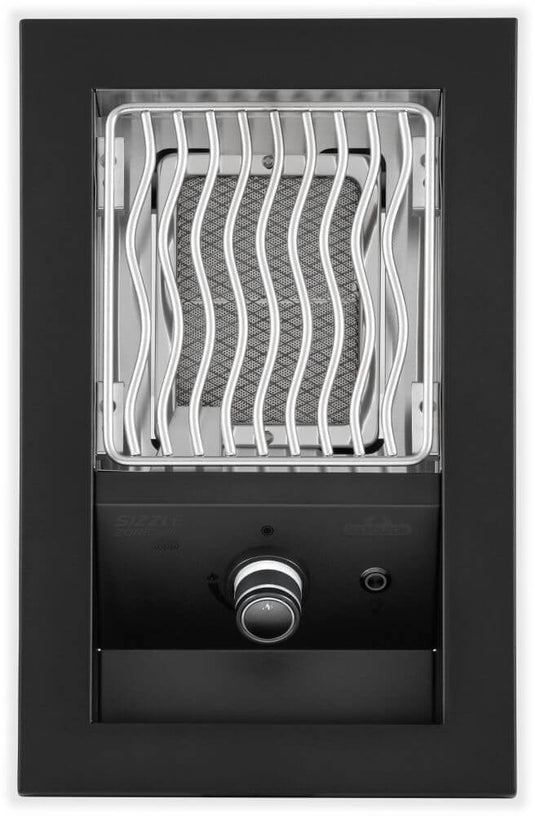

- 7.5 mm Stainless Steel WAVE Grid: Offers a durable cooking surface with Napoleon's distinctive grid pattern.
- JETFIRE Ignition: Supports convenient one-handed burner startup.
- SafetyGlow Control Knob: Illuminates blue and changes to red when the burner is in operation.
- Built-In Drop-In Design: Designed for installation within a properly prepared outdoor kitchen countertop.
- Streamlined Trim: Provides a neat transition between the burner and surrounding countertop.
- Additional Cooking Flexibility: Keeps the main grill available for lower-temperature cooking while using the infrared burner for searing.
Available Fuel Options
This Napoleon Built-In 700 Series Single Infrared Burner is available in two fuel configurations:
- Natural Gas – BIB10IRNMK: Designed for outdoor kitchens with a suitable natural gas connection.
- Propane – BIB10IRPMK: Designed for outdoor kitchens using an appropriate propane supply.
Important: Select the fuel type that matches your installation before ordering. Natural gas and propane models are separate configurations and should not be treated as interchangeable.
Installation and Electrical Requirements
This burner is designed for built-in installation in a properly constructed outdoor kitchen. Follow Napoleon's applicable installation instructions for countertop openings, clearances, ventilation, gas connections, and electrical requirements.
Power Supply Note: When a Built-In 700 Series burner is installed without a Napoleon Built-In 700 Series grill, the N370-1091-SER power supply kit is required to operate the illuminated control knob.
Product Specifications
- Brand: Napoleon
- Series: Built-In 700 Series
- Product Type: Built-In Infrared Side Burner
- Burner Configuration: Single Infrared Burner
- Natural Gas SKU: BIB10IRNMK
- Propane SKU: BIB10IRPMK
- Fuel Options: Natural Gas or Propane
- Heat Output: 10,000 BTU
- Maximum Advertised Temperature: Up to 1,800°F
- Main Cooking Area: 9" x 10.5"
- Manufacturer-Listed Total Cooking Area: 93 Square Inches
- Cooking Grid: 7.5 mm Stainless Steel WAVE Grid
- Infrared Technology: SIZZLE ZONE
- Ignition System: JETFIRE
- Control Knob: Backlit with SafetyGlow
- Construction: Stainless Steel
- Cover Finish: Matte Black

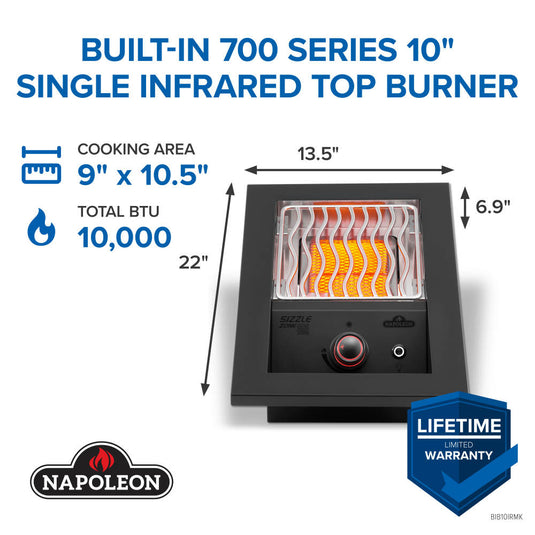

- Overall Width: 13.50 Inches
- Overall Depth: 22 Inches
- Overall Height: 6.90 Inches
- Packaging Weight: 21.50 lbs
- Installation Type: Built-In / Drop-In
- Manufacturer Warranty: Lifetime Limited Warranty
Downloads
- Napoleon Built-In 700 Series Assembly Guide [Download]
