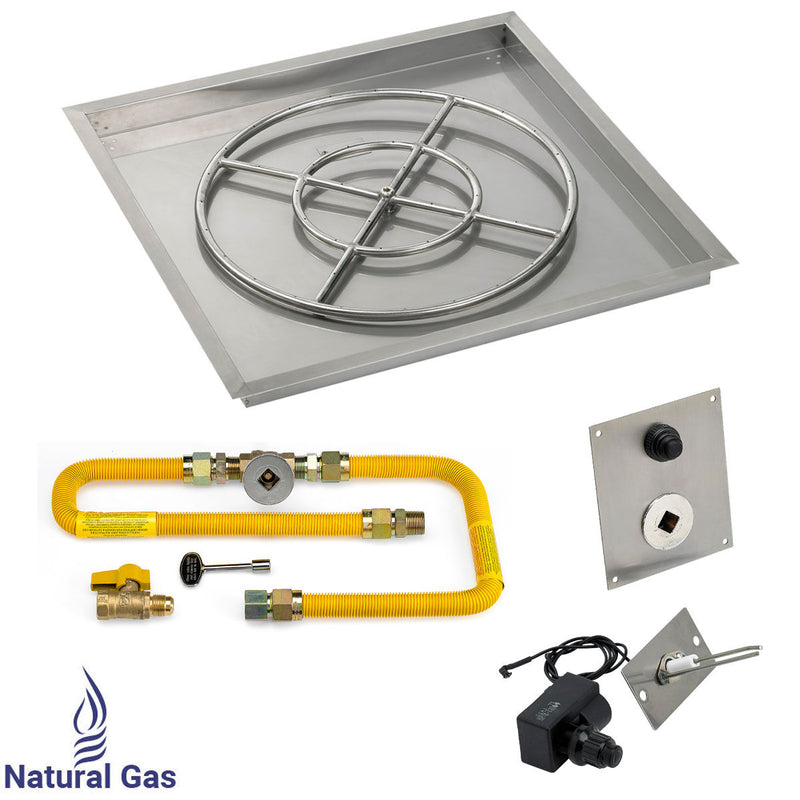

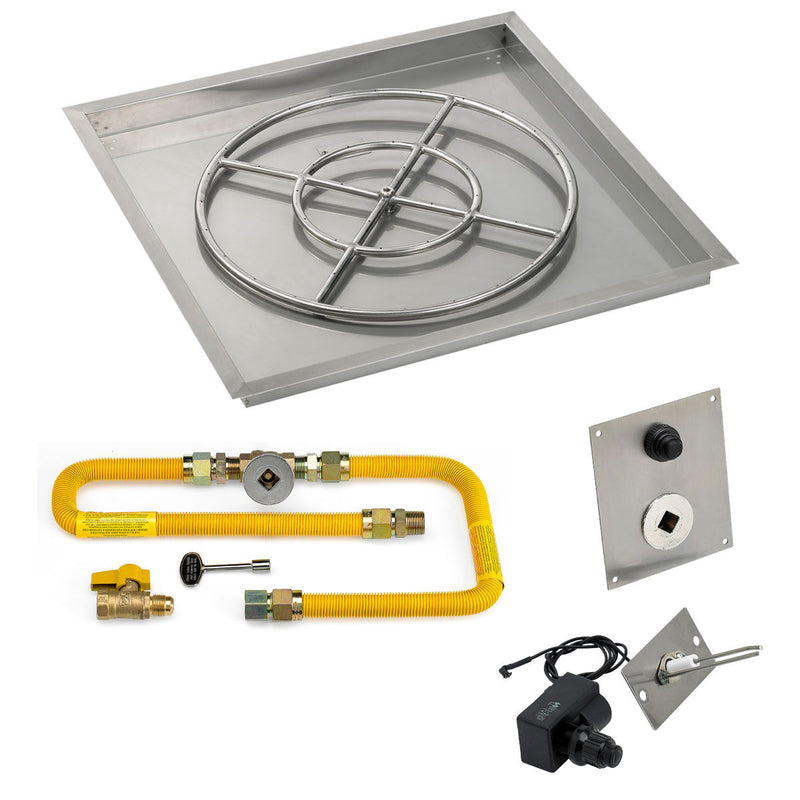

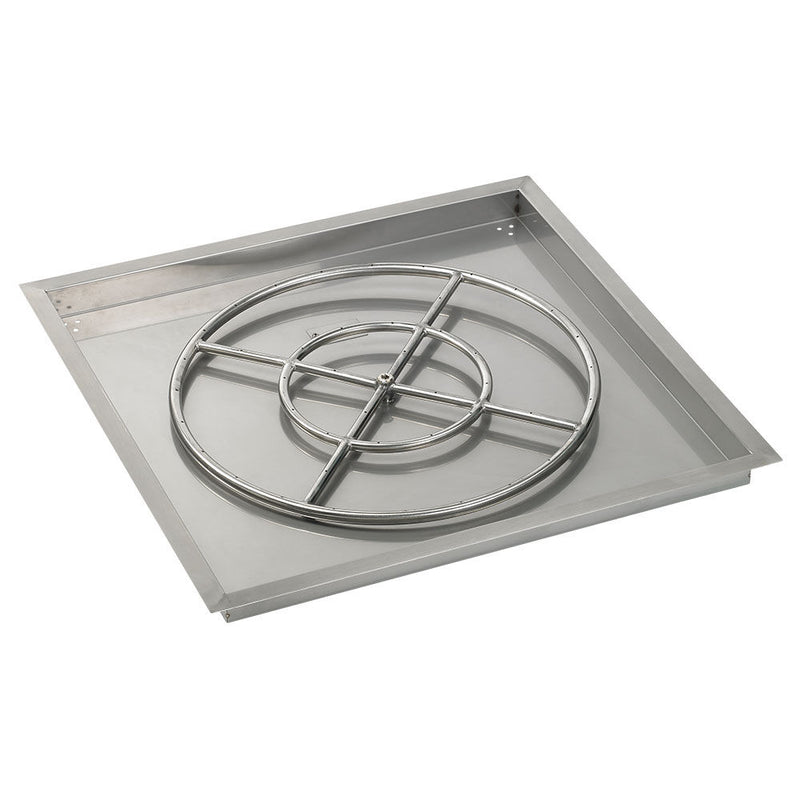

American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (24" Fire Pit Ring) - Natural Gas

Create a stunning outdoor centerpiece with the American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (24" Fire Pit Ring) - Natural Gas High Capacity. Designed for high-capacity natural gas fire features, this complete kit includes a premium stainless steel drop-in pan, a powerful 24-inch ring burner, and a reliable push-button spark ignition system. With a simple push of a button, you can enjoy beautiful flames and a welcoming atmosphere for outdoor gatherings.

The innovative drop-in pan creates a false bottom that reduces fire glass requirements while maintaining a full, professional appearance. Constructed from durable 304 stainless steel and engineered for long-term outdoor performance, this kit delivers exceptional reliability, flame quality, and ease of installation.

Features

• Complete natural gas fire pit kit with push-button spark ignition
• 30" square stainless steel drop-in pan with integrated flange
• 24" stainless steel fire pit ring burner with cross-bar design
• High-capacity burner system rated up to 297,000 BTU/hr
• Push-button spark ignitor with battery included
• Includes two 5-foot gas hoses and chrome key valve with key
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help prevent whistling noises
• Built-in weep holes help prevent water accumulation
• Ring burner features a 3/4" gas inlet for high-capacity installations
• Designed for use with 2" to 4" of fire glass
• Ideal for custom outdoor fire pits
• For outdoor, vented natural gas fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Square
• Fuel Type: Natural Gas
• Pan Dimensions: 30" L x 30" W x 2" D
• Flange Width: 1 1/4"
• Burner Type: 24" Fire Pit Ring Burner
• Burner Size: 24"
• Gas Inlet: 3/4"
• Burner Heat Rating: 297,000 BTU/hr Maximum
• Fire Glass Capacity: 94 lbs (not included)
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 34 lbs
• Application: Outdoor, vented natural gas fire features only
• Included Components
  • 30" Square Drop-In Fire Pit Pan
  • 24" Stainless Steel Fire Pit Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • Two 5' Gas Hoses
  • Chrome Key Valve with Key
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
