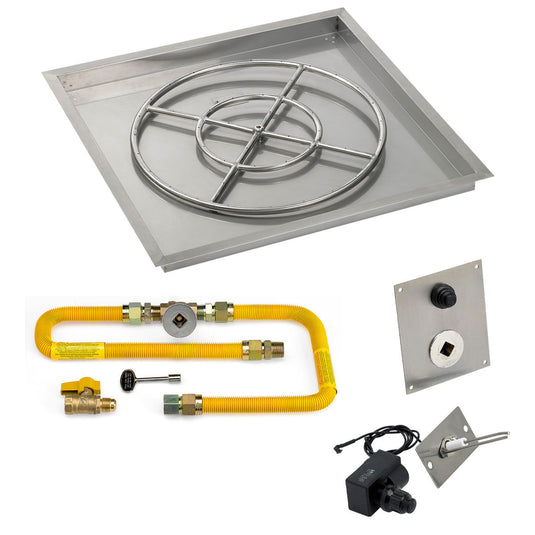

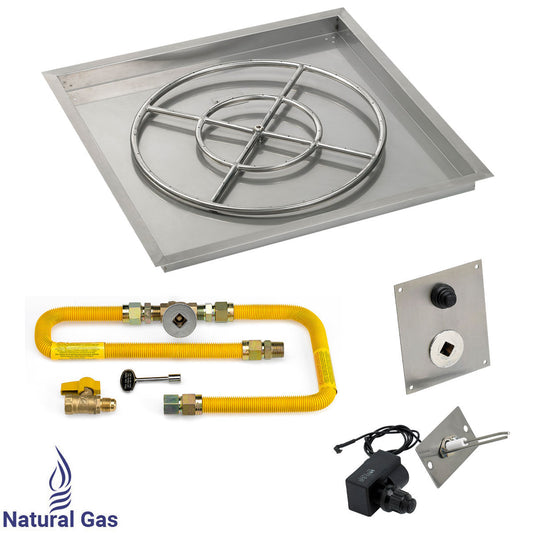

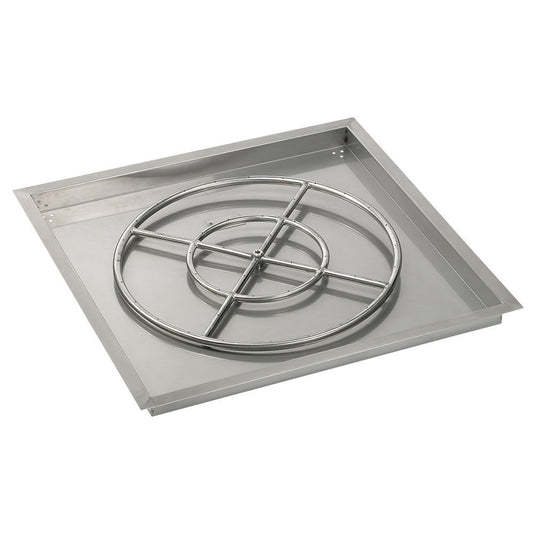

Create a stunning outdoor centerpiece with the American Fire Products 30" Square Drop-In Pan with Spark Ignition Kit (24" Fire Pit Ring) - Natural Gas High Capacity. Designed for high-capacity natural gas fire features, this complete kit includes a premium stainless steel drop-in pan, a powerful 24-inch ring burner, and a reliable push-button spark ignition system. With a simple push of a button, you can enjoy beautiful flames and a welcoming atmosphere for outdoor gatherings.
The innovative drop-in pan creates a false bottom that reduces fire glass requirements while maintaining a full, professional appearance. Constructed from durable 304 stainless steel and engineered for long-term outdoor performance, this kit delivers exceptional reliability, flame quality, and ease of installation.
Features
- Complete natural gas fire pit kit with push-button spark ignition
- 30" square stainless steel drop-in pan with integrated flange
- 24" stainless steel fire pit ring burner with cross-bar design
- High-capacity burner system rated up to 297,000 BTU/hr
- Push-button spark ignitor with battery included
- Includes two 5-foot gas hoses and chrome key valve with key
- Constructed from premium 304 stainless steel
- False-bottom design reduces fire glass requirements
- Drilled burner ports help prevent whistling noises
- Built-in weep holes help prevent water accumulation
- Ring burner features a 3/4" gas inlet for high-capacity installations
- Designed for use with 2" to 4" of fire glass
- Ideal for custom outdoor fire pits
- For outdoor, vented natural gas fire features only
Product Specifications
- Material: Handcrafted 304 Stainless Steel
- Shape: Square
- Fuel Type: Natural Gas
- Pan Dimensions: 30" L x 30" W x 2" D
- Flange Width: 1 1/4"
- Burner Type: 24" Fire Pit Ring Burner
- Burner Size: 24"
- Gas Inlet: 3/4"
- Burner Heat Rating: 297,000 BTU/hr Maximum
- Fire Glass Capacity: 94 lbs (not included)
- Special Features: Drilled burner holes and built-in weep holes
- Product Weight: 34 lbs
- Application: Outdoor, vented natural gas fire features only
-
Included Components
- 30" Square Drop-In Fire Pit Pan
- 24" Stainless Steel Fire Pit Ring Burner
- Push-Button Spark Ignitor (Battery Included)
- Two 5' Gas Hoses
- Chrome Key Valve with Key
-
Optional Accessory
- Push Button Ignitor Mounting Plate
Downloads
- American Fire Products Cutout Size & Recommended Fire Ring [Download]
- FIRE GLASS CALCULATOR
- LAVA ROCK CALCULATOR
