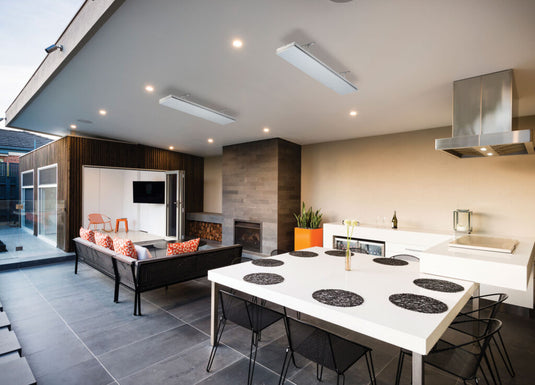

The HEATSTRIP® Classic White Slimline Electric Radiant Heater provides targeted warmth for indoor and protected outdoor spaces. Its distinctive off-white finish is designed to complement white and light-colored ceilings, making it a discreet heating option for covered patios, sheltered pergolas, alfresco dining areas, cafés, and hard-to-heat indoor rooms.
Available in 2400W and 3200W models, this 240V electric radiant heater is designed for residential and commercial spot heating. Its slim profile allows it to sit above seating, dining, or work areas without taking up floor space.
Features
- Off-white finish designed to complement white and light-colored ceilings.
- Electric radiant spot heating for indoor rooms and protected outdoor living areas.

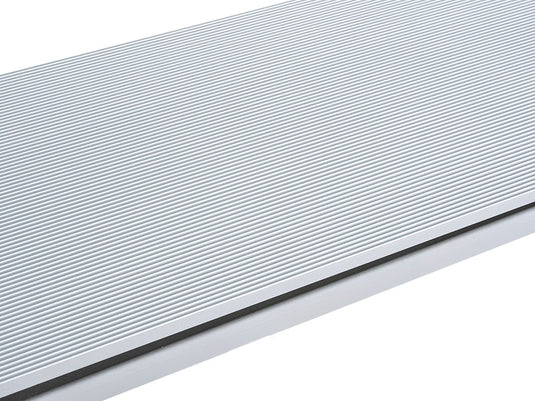

- High-temperature ceramic-coated extruded alloy construction with a corrosion-resistant design.
- IP55-rated construction.
- Two models: X-THH2400US-AW — 2400W and X-THH3200US-AW — 3200W.
- A pair of ZBRAK-113W adjustable mounting brackets is included for standard ceiling or angled wall mounting.
- Compatible with optional flush-mount and suspended installation accessories.
- Manufacturer warranty: 3 years for residential use and 2 years for commercial use, subject to the manufacturer's warranty terms.
Product Specifications
| Specification | 2400W Model | 3200W Model |
|---|---|---|
| Model number | X-THH2400US-AW | X-THH3200US-AW |
| Power | 2400W | 3200W |
| Voltage | 240V | 240V |
| Frequency / phase | 50–60Hz, single phase | 50–60Hz, single phase |
| Current | 10A | 13.3A |
| Heater dimensions — L × W × H | 1364 × 165 × 48mm | 1774 × 165 × 48mm |
| Approximate dimensions — inches | 53.7 × 6.5 × 1.9in | 69.8 × 6.5 × 1.9in |
| Approximate weight | 7kg / 15lb | 9kg / 20lb |
| Electrical connection | Hardwired via electrical connection box | Hardwired via electrical connection box |
| Manufacturer-listed heating area | 43–54ft² / 4–5m² | 54–65ft² / 5–6m² |
Heating-area ranges are general manufacturer estimates. Installation-specific coverage is outlined below.
Which HEATSTRIP Classic White Model Should I Choose?
The 2400W model is the shorter option for smaller spot-heating zones. The 3200W model has a longer heating surface and a larger radiant footprint, making it an option for a larger seating or dining zone where sufficient mounting space is available.
Choose according to the area people will occupy, rather than the total size of the patio alone. Mounting height, wind exposure, enclosure, and heater placement all affect the heating result.
Both models require a 240V hardwired electrical connection; they are not standard 120V plug-in heaters.
Coverage Based on Installation Environment
HEATSTRIP publishes the following approximate coverage figures for direct overhead mounting:
| Model | Indoor Protected | Outdoor Enclosed | Outdoor Exposed |
|---|---|---|---|
| X-THH2400US-AW — 2400W | 65ft² | 52ft² | 43ft² |
| X-THH3200US-AW — 3200W | 86ft² | 69ft² | 57ft² |
These figures are planning estimates, not guaranteed coverage. The manufacturer notes that angled wall mounting can reduce heating coverage by up to 40% compared with direct overhead mounting.
For outdoor use, position the heater in a protected area wherever possible. Walls, screens, or café blinds can reduce wind exposure and improve comfort within the heated zone.
Positioning and Installation

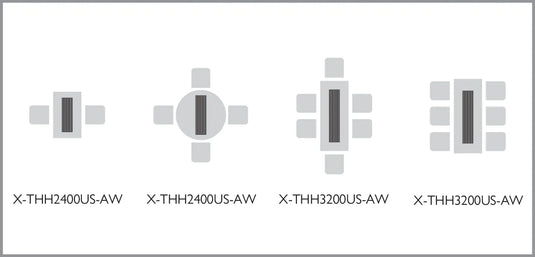

For effective spot heating, position the heater directly above the dining table, seating area, or workspace whenever possible.
The manufacturer's recommended mounting height is 2.3–2.5m, approximately 7.5–8.2ft. The maximum recommended height is 2.7m, approximately 8.9ft, in a fully protected or enclosed outdoor environment.
Country-specific minimum installation heights and clearance requirements must also be followed. For Canadian installations, the product manual specifies a minimum height of 8ft above ground level.
A licensed electrical professional must complete the fixed electrical installation and confirm the required mounting clearances, electrical supply, and applicable local requirements. Follow the model-specific product manual and the instructions for any mounting accessories.
Mounting Options
- Ceiling mounting: Install directly overhead using the included adjustable brackets.
- Angled wall mounting: Direct warmth toward an occupied area, allowing for the reduced coverage associated with this position.
- Flush mounting: Use a compatible flush-mount enclosure selected for the heater model.
- Suspended mounting: Use compatible extension poles or suitable chain/wire suspension hardware to lower the heater from a higher mounting position.
Multiple heaters can also be arranged end-to-end for longer occupied areas, provided all installation clearances are maintained.
Flush-mount enclosures and extension poles are optional accessories. Chains and wires are not included.
For a separate model with built-in remote and app control, explore the HEATSTRIP Classic White with Remote + App.
Use the model-specific product manual and applicable accessory instructions for installation and safety requirements. The brochure provides a general overview of the product range.
Downloads
- Heatstrip Brochure [Download]
- Classic X-THHUS-AW Product Manual [Download]
- Flush Mount Manual [Download]
- Extension Pole Manual [Download]
- ZBRAK-113W Manual [Download]
