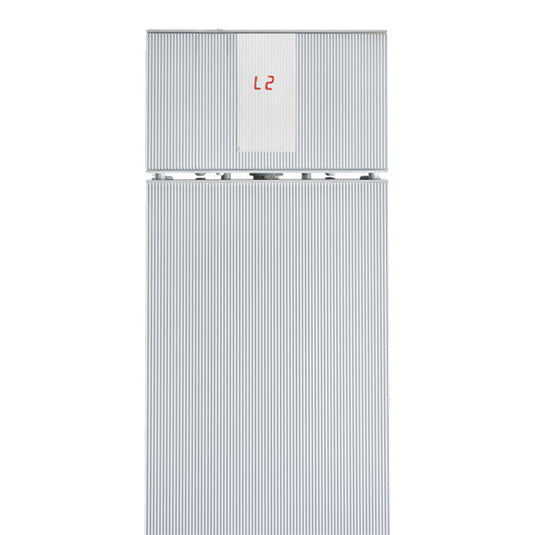

The HEATSTRIP® Classic with Remote & App White Smart Electric Radiant Heater combines a slim, low-profile design with built-in smart controls and a distinctive off-white finish designed to complement white and light-colored ceilings.

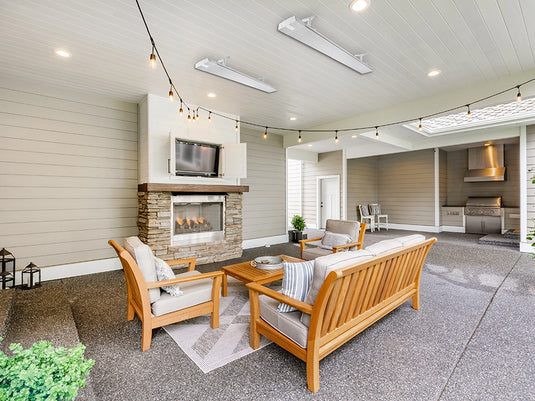

Ideal for indoor and protected outdoor spaces, it provides targeted radiant heating for covered patios, balconies, porches, verandahs, alfresco dining areas, cafés, and hard-to-heat indoor environments.
Available in 2400W and 3200W models, the HEATSTRIP Classic White with Remote & App can be operated using the included handheld remote or compatible mobile app, with Wi-Fi and Bluetooth connectivity and support for compatible Google and Amazon smart-home platforms.
Features
- Distinctive off-white finish designed to complement white and light-colored ceilings.
- Built-in remote and app control for convenient heater operation.
- Wi-Fi and Bluetooth connectivity.
- Compatible with supported Google and Amazon smart-home platforms.
- Three adjustable heat levels: L1, L2, and L3.
- Adjustable 1–24 hour countdown timer.
- Two models available: X-THH2400-AAW (2400W) and X-THH3200-AAW (3200W).
- High-temperature ceramic-coated extruded alloy construction.
- IP55-rated protection from water ingress.
- A pair of ZBRAK-113W adjustable mounting brackets is included.
- Standard brackets allow ceiling or angled wall mounting with parallel, 22.5°, and 45° positions.
- Compatible with optional flush-mount and suspended installation accessories.
- Manufacturer warranty: 3 years residential and 2 years commercial, subject to the manufacturer's warranty terms.
Product Specifications
| Specification | X-THH2400-AAW | X-THH3200-AAW |
|---|---|---|
| Power | 2400W | 3200W |
| Voltage | 240V | 240V |
| Current | 10A | 13.3A |
| Frequency / Phase | 50–60Hz, single phase | 50–60Hz, single phase |
| Dimensions | 1371 × 165 × 48mm (53 31/32 × 6 1/2 × 1 7/8in) | 1780 × 165 × 48mm (70 1/16 × 6 1/2 × 1 7/8in) |
| Weight | 7kg / 15lb | 9kg / 20lb |
| Connection | Gang Box / fixed electrical installation | Gang Box / fixed electrical installation |
| Manufacturer-Listed Heating Area | 4–5m² / 43–54ft² | 5–6m² / 54–65ft² |
| Protection Rating | IP55 | IP55 |
| Approval | ETL | ETL |
Both models require a 240V fixed electrical installation and should be installed by a qualified electrical professional in accordance with applicable electrical codes.
Smart Control & Remote Functions
The included handheld remote allows direct control of the heater without requiring the mobile app.
- Select between three heat levels: L1, L2, and L3.
- Set a 1–24 hour countdown timer.
- Turn the heater on or off using the remote.
- Connect the heater to the TuyaSmart app using Wi-Fi.
- Use compatible smart-home integrations where supported.
The remote requires line-of-sight operation. The manufacturer states that it can operate at distances greater than 8m when used in a straight line, although range may decrease when used at an angle.
The remote itself is not weather-rated and should be kept away from wet locations.
Which HEATSTRIP Classic White with Remote & App Model Should I Choose?
The X-THH2400-AAW (2400W) has a manufacturer-listed heating area of approximately 43–54ft² and is suited to smaller spot-heating zones.
The longer X-THH3200-AAW (3200W) provides an approximate heating area of 54–65ft² and creates a larger radiant footprint for longer dining, seating, or work areas.
Both models operate at the same surface temperature. The main difference is heater length and radiant footprint, so the 3200W model covers a larger area rather than simply producing a higher surface temperature.
Actual heating performance depends on mounting height, heater orientation, wind exposure, enclosure, and the position of occupants within the radiant footprint.
Coverage Based on Installation Environment
For direct overhead mounting, HEATSTRIP provides the following approximate coverage figures:
| Model | Indoor Protected | Outdoor Enclosed | Outdoor Exposed |
|---|---|---|---|
| X-THH2400-AAW | 6m² / 65ft² | 4.8m² / 52ft² | 3.9m² / 43ft² |
| X-THH3200-AAW | 8m² / 86ft² | 6.4m² / 69ft² | 5.2m² / 57ft² |
These figures are approximate planning guides. Angled wall mounting can reduce heating coverage by up to 40% compared with direct overhead mounting.
For protected outdoor installations, walls, screens, or café blinds can help reduce wind exposure and improve heating effectiveness.
Positioning
For effective spot heating, position the HEATSTRIP® Classic with Remote & App White directly above the occupied area whenever possible, such as over a dining table, seating area, or workstation.
The manufacturer's recommended mounting height is 2.3–2.5m (approximately 7.5–8.2ft). The maximum recommended mounting height is 2.7m (approximately 8.9ft) in a fully protected or enclosed outdoor environment.
The US & Canada product manual also specifies country-specific minimum installation heights:
- United States: minimum 6ft (1.8m) above ground level.
- Canada: minimum 8ft (2.4m) above ground level.
Installation must follow the current product manual, required clearances, and all applicable local electrical and building codes.
Mounting Options
The included ZBRAK-113W adjustable mounting brackets support standard ceiling and angled wall installations.
Available mounting configurations include:
- Ceiling-mounted directly above the heated area.
- Angled wall-mounted for targeted radiant heating.
- Flush-mounted using a compatible optional flush-mount enclosure.
- Suspended installation using compatible extension poles or suitable chain/wire hardware.
- Beam or pole mounting where permitted by the installation instructions.
- Multiple heaters installed end-to-end for longer occupied areas.
For mounting positions above the recommended range, compatible extension poles can be used to lower the heater closer to the ideal mounting height.
Chain/wire is not included.
Prefer the same off-white Classic design without built-in remote and app controls? View the HEATSTRIP Classic White Slimline Electric Radiant Heater.
Downloads
- Heatstrip Brochure [Download]
- X-THH-AAW Product Manual [Download]
- X-THH-AA Flush Mounting Manual [Download]
- White Extension Pole Manual [Download]
- ZBRAK-113W Manual [Download]
