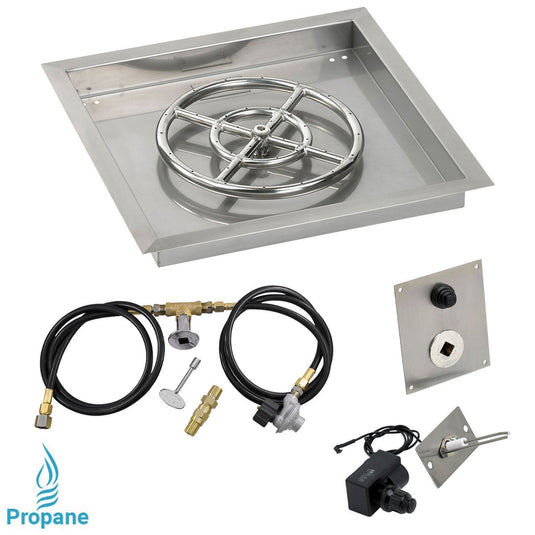

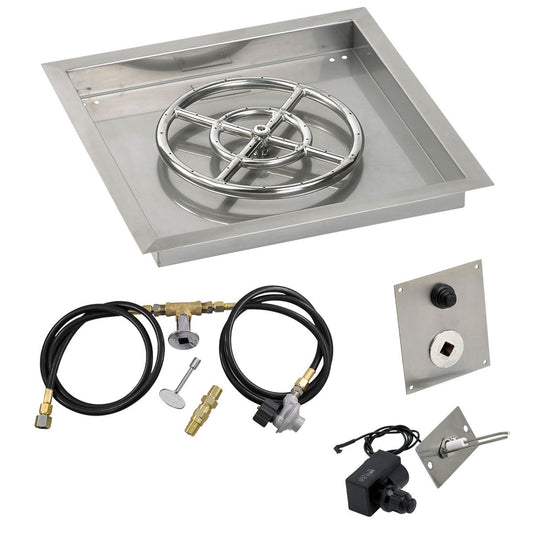

Create a warm and inviting outdoor atmosphere with the American Fire Products 18" Square Drop-In Pan with Spark Ignition Kit (12" Fire Pit Ring) - Propane. This compact propane fire pit kit includes a durable stainless steel drop-in pan, a 12-inch stainless steel ring burner, and a convenient push-button spark ignition system. Enjoy vibrant flames and cozy outdoor gatherings with the simple push of a button.
The drop-in pan features a false-bottom design that reduces fire glass requirements while maintaining a professional look. Constructed from high-quality 304 stainless steel, this kit offers long-lasting durability, easy installation, and exceptional flame performance for your custom propane fire feature.
Features
- Complete propane fire pit kit with push-button spark ignition
- 18" square stainless steel drop-in pan with integrated mounting flange
- 12" stainless steel fire pit ring burner with cross-bar design for even flame distribution
- Reliable burner system rated up to 92,000 BTU/hr
- Push-button spark ignitor with battery included
- Includes 4' and 5' gas hoses, propane regulator, air-mixer, and chrome key valve with key
- Constructed from premium 304 stainless steel for durability
- False-bottom design reduces fire glass usage
- Drilled burner holes prevent whistling noises
- Built-in weep holes help prevent water accumulation
- Burner works best with 2" to 4" of fire glass
- Features a 1/2" gas inlet for easy propane connection
- Ideal for small custom outdoor propane fire pits
- For outdoor, vented propane gas fire features only
Product Specifications
- Material: Handcrafted 304 Stainless Steel
- Shape: Square
- Fuel Type: Propane
- Pan Dimensions: 18" L x 18" W x 2" D
- Flange Width: 1 1/4"
- Burner Type: Fire Pit Ring Burner
- Burner Size: 12"
- Gas Inlet: 1/2"
- Burner Heat Rating: 92,000 BTU/hr Maximum
- Fire Glass Capacity: 34 lbs (not included)
- Special Features: Drilled burner holes and built-in weep holes
- Product Weight: 19 lbs
- Application: Outdoor, vented propane gas fire features only
-
Included Components

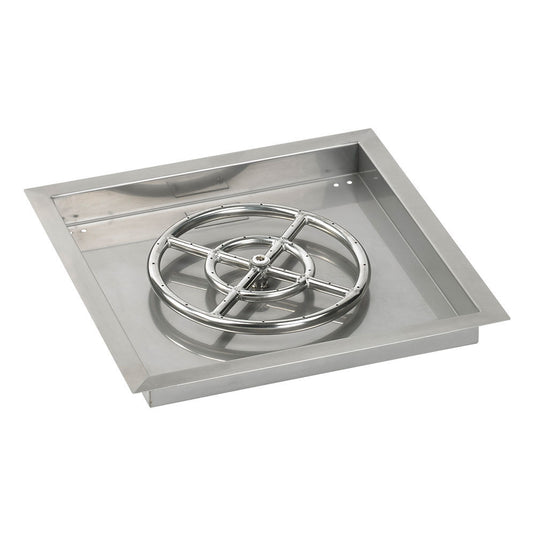

- 18" Square Drop-In Fire Pit Pan
- 12" Stainless Steel Fire Pit Ring Burner
- Push-Button Spark Ignitor (Battery Included)
- 4' and 5' Gas Hoses
- Propane Regulator
- Air-Mixer
- Chrome Key Valve with Key
-
Optional Accessory
- Push Button Ignitor Mounting Plate
Downloads
- American Fire Products Cutout Size & Recommended Fire Ring [Download]
