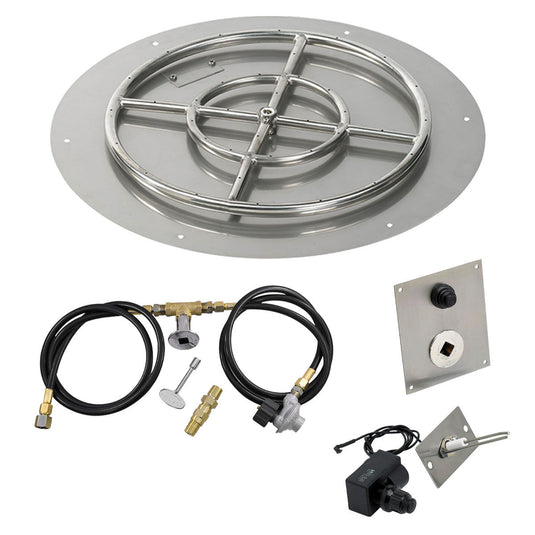

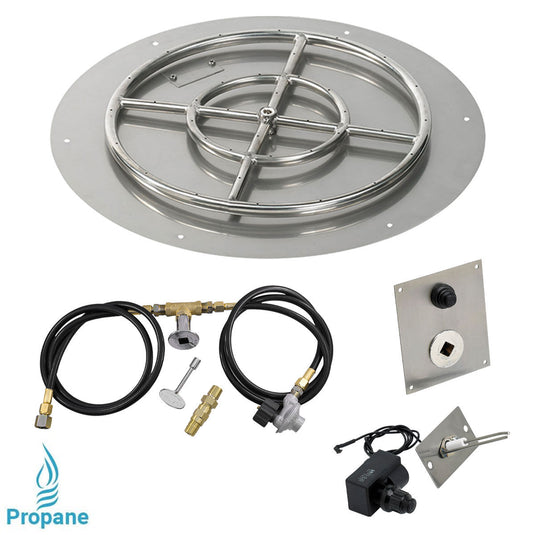

American Fire Products 24" Round Flat Pan with Spark Ignition Kit (18" Ring) - Propane

Enhance your outdoor living space with the American Fire Products 24" Round Flat Pan with Spark Ignition Kit (18" Ring) - Propane. This complete fire pit burner kit combines a durable 24-inch round flat stainless steel burner pan, an 18-inch stainless steel ring burner, and a convenient push-button spark ignition system for reliable lighting with the push of a button.

Designed for propane fire pit applications, the flat pan creates a false bottom that reduces the amount of fire glass needed while maintaining a full and professional appearance. Manufactured from premium 304 stainless steel, this kit is built to withstand outdoor conditions while delivering consistent flame performance and long-lasting durability.

Features

• Complete propane fire pit kit with push-button spark ignition

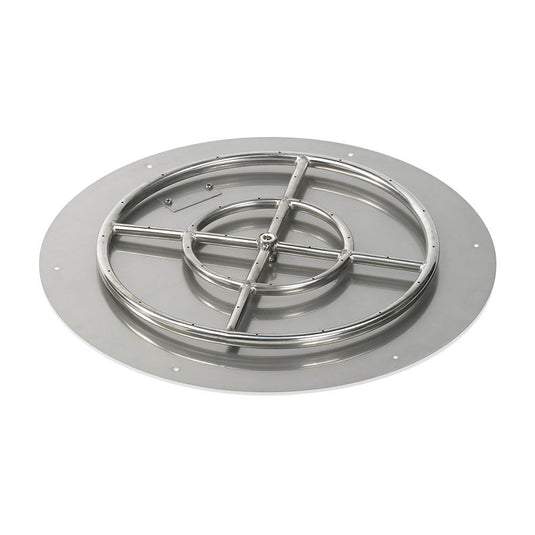

• 24" round flat stainless steel burner pan for custom fire pit installations
• 18" stainless steel ring burner with cross-bar design for even flame distribution
• 147,000 BTU maximum heat output
• Push-button spark ignitor with battery included
• Includes 4-foot and 5-foot gas hoses
• Includes chrome key valve with key
• Includes propane air mixer and portable propane tank regulator
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help eliminate whistling noises
• Built-in weep holes help prevent water accumulation
• Designed for use with 2" to 4" of fire glass
• Corrosion-resistant construction for long-term outdoor use
• For outdoor, vented propane fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Round
• Fuel Type: Propane
• Pan Diameter: 24"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Gas Inlet: 1/2"
• Burner Heat Rating: 147,000 BTU/hr Maximum
• Ignition Type: Push-Button Spark Ignition
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 16.75 lbs
• Application: Outdoor, vented propane fire features only
• Included Components
  • 24" Round Flat Fire Pit Pan
  • 18" Stainless Steel Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' Gas Hose
  • 5' Gas Hose
  • Chrome Key Valve with Key
  • Propane Air Mixer
  • Portable Propane Tank Regulator
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
