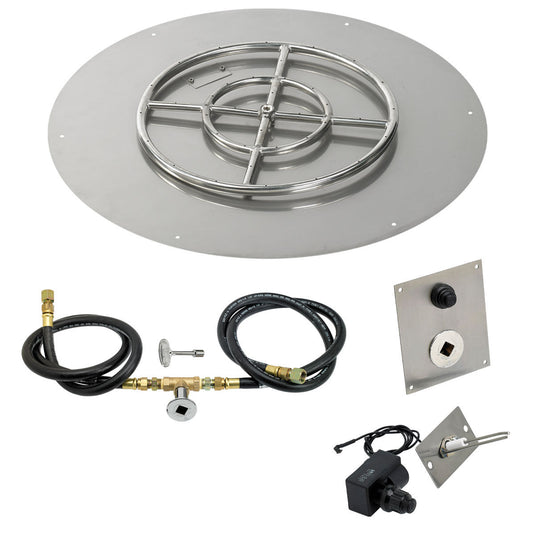

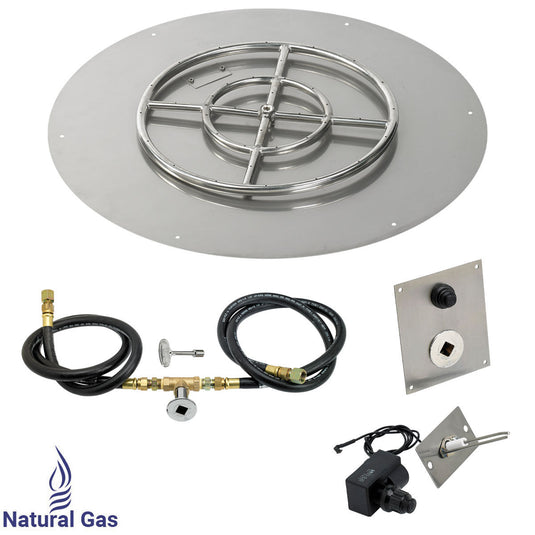

American Fire Products 30" Round Flat Pan with Spark Ignition Kit (18" Ring) - Natural Gas

Create a beautiful and inviting outdoor fire feature with the American Fire Products 30" Round Flat Pan with Spark Ignition Kit (18" Ring) - Natural Gas. This complete fire pit kit includes a durable 30-inch round flat stainless steel burner pan, an 18-inch stainless steel ring burner, and a dependable push-button spark ignition system for quick and convenient lighting.

Designed for custom natural gas fire pit installations, the flat pan creates a false bottom that reduces the amount of fire glass required while maintaining a full, professional appearance. Constructed from premium 304 stainless steel, this kit offers excellent durability, corrosion resistance, and long-lasting outdoor performance.

Features

• Complete natural gas fire pit kit with push-button spark ignition
• 30" round flat stainless steel burner pan for custom fire pit installations
• 18" stainless steel ring burner with cross-bar design for even flame distribution
• 147,000 BTU maximum heat output
• Push-button spark ignitor with battery included
• Includes two 5-foot gas hoses
• Includes chrome key valve with key
• Constructed from premium 304 stainless steel
• False-bottom design reduces fire glass requirements
• Drilled burner ports help eliminate whistling noises
• Built-in weep holes help prevent water accumulation
• Designed for use with 2" to 4" of fire glass
• Corrosion-resistant construction for long-term outdoor use
• For outdoor, vented natural gas fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Shape: Round
• Fuel Type: Natural Gas
• Pan Diameter: 30"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Gas Inlet: 1/2"
• Burner Heat Rating: 147,000 BTU/hr Maximum
• Ignition Type: Push-Button Spark Ignition
• Special Features: Drilled burner holes and built-in weep holes
• Product Weight: 17 lbs
• Application: Outdoor, vented natural gas fire features only
• Included Components
  • 30" Round Flat Fire Pit Pan
  • 18" Stainless Steel Ring Burner
  • Push-Button Spark Ignitor (Battery Included)
  • Two 5' Gas Hoses
  • Chrome Key Valve with Key
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
