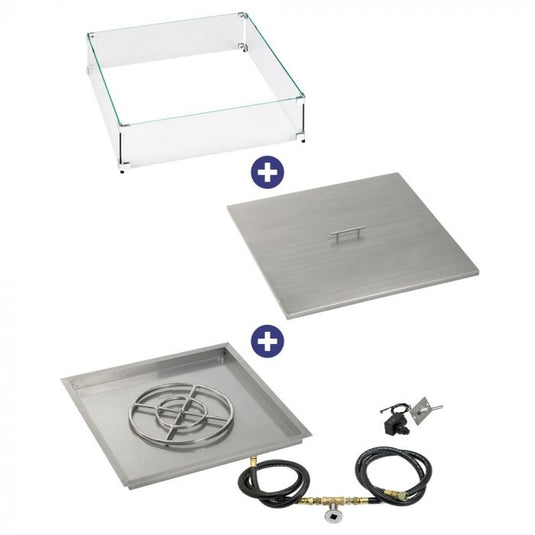

30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Natural Gas Bundle

30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Natural Gas Bundle

Experience the warmth of a cozy fire with cherished friends and family during the chilly winter nights! Setting up a fire pit is now effortless for your customers, who can easily create their DIY fire display with our 30" square drop-in pan featuring a natural gas spark ignition kit. With just the push of a button, your customers and their guests can revel in a brilliant flame and delightful conversations.

Features

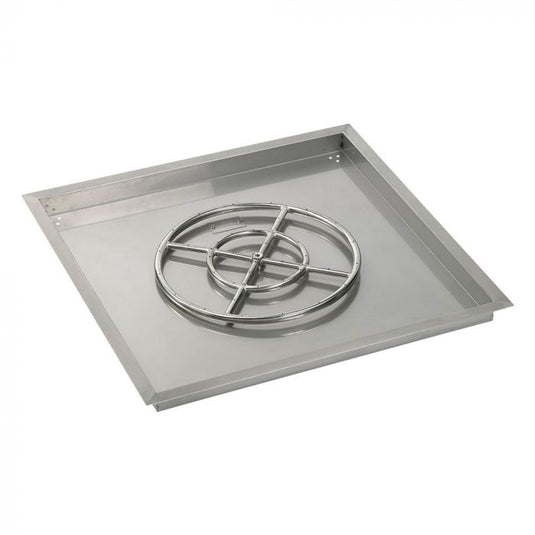

• 30" Square Drop-in Burner Pan:

  • Designed with a convenient 'lip' for easy installation and removal in square-shaped fire pits.
  • Significantly reduces the need for fire glass, creating a false bottom for a visually full appearance.
  • Crafted from 100% stainless steel for exceptional durability against extreme heat and harsh weather.
  • Built-in drilled weep holes prevent water accumulation.

• 18" Ring Burner:

  • Constructed with high-grade 304 stainless steel, ensuring durability under extreme heat and severe weather conditions.
  • Crossbar design enhances flame distribution for an engaging display.
  • Drilled holes, not punched, prevent loud whistling noises; optimal performance under 2 - 4 inches of fire glass.

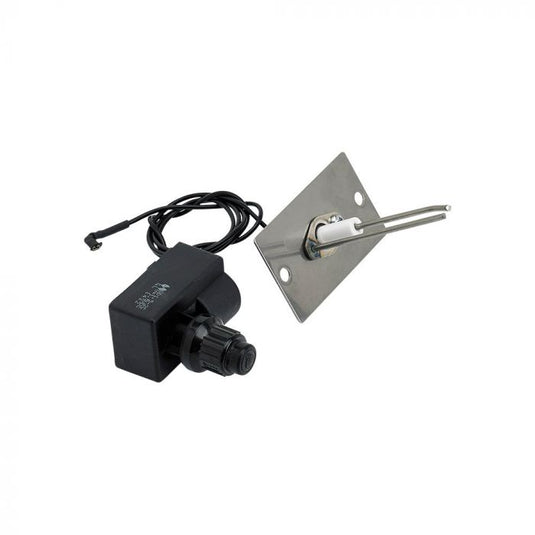

• Push Button Spark Ignitor:

  • Battery included for seamless ignition with the push of a button.

• Fire Pit Connection Accessories:

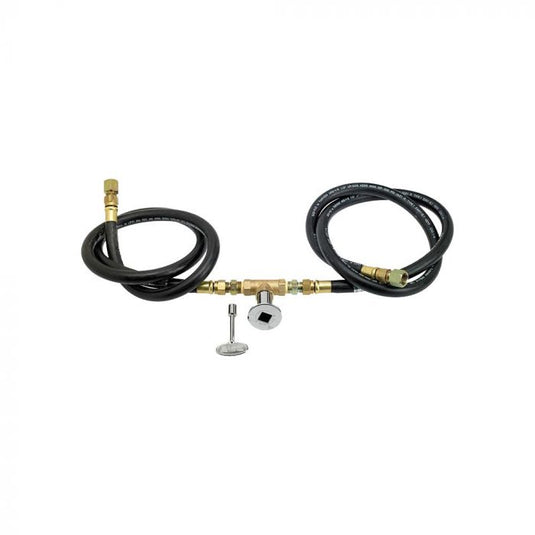

  • Gas hose (5' and 5'), chrome key valve with key for convenient control.

• Optional Accessory:

  • Push Button Ignitor Mounting Plate facilitates the placement of the key valve and spark ignitor button.

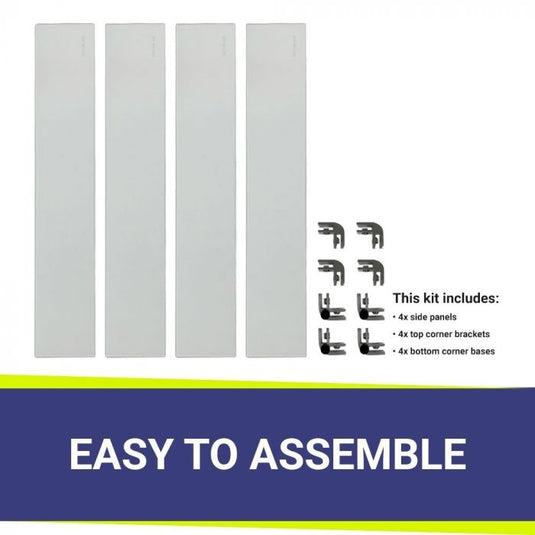

• Square Flame Guard Features:

  • Offers an additional safety barrier, maintaining a central flame during evening breezes.
  • Elevates the fire's elegance by reflecting flames on tempered glass surfaces.
  • Crafted from heat-resistant tempered glass with polished edges; designed for compatibility with any fire pit.

  Square Burner Cover Features:

  • Proudly introducing Fire Pit Pan Covers to complement and safeguard your investment.
  • Crafted from high-quality .304 stainless steel with a smooth brushed finish and a robust chrome handle.
  • Designed to protect and enhance corresponding drop-in pans; a recommended addition for preserving your fire feature investment.

Product Specifications

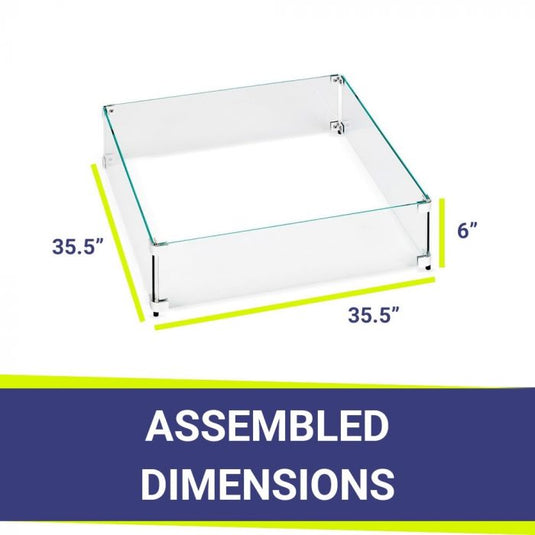

• Flame Guard Specifications

  • Clear Tempered Glass Panels
  • Polished Aluminum Fire-Resistant Brackets
  • Assembled size: 35.5" x 35.5" x 6"

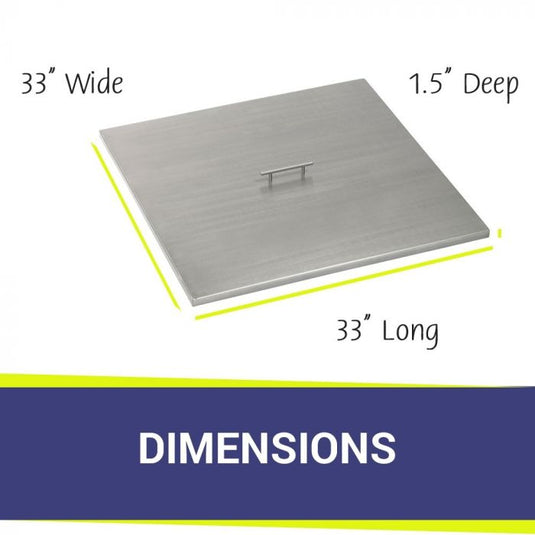

• Burner Cover Specifications

  • High quality .304 stainless steel
  • Smooth brushed finish heavy duty handle
  • Actual size: 33" x 33" x 1.5"

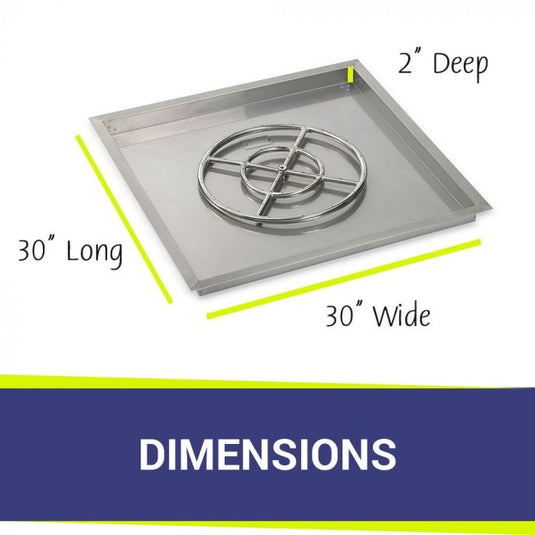

• Fire Pit Pan Specifications

  • Product Weight: 32.00 lbs
  • Material: 304 Stainless Steel (hand crafted)
  • Dimensions: 30" L x 30" W x 2" D x 1 1/4" Flange
  • Ring Burner Features: Drilled holes (not punched) in order to prevent whistling
  • Burner size: 18"
  • Fire glass capacity: 94 lbs of fire glass required (not included)
  • Includes: 1/2 bottom gas inlet for easy installation

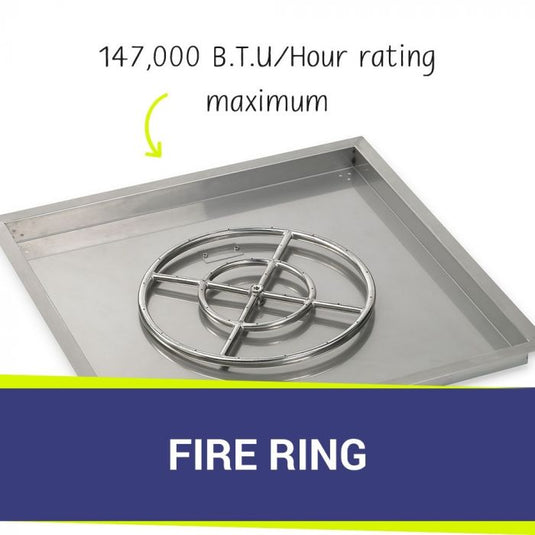

  • Burner Heat rating: 147,000 B.T.U/Hour rating maximum
  • For use in: To be used in outdoor, vented, natural gas fire features ONLY

Downloads

• 30" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Natural Gas Bundle  [Download]
