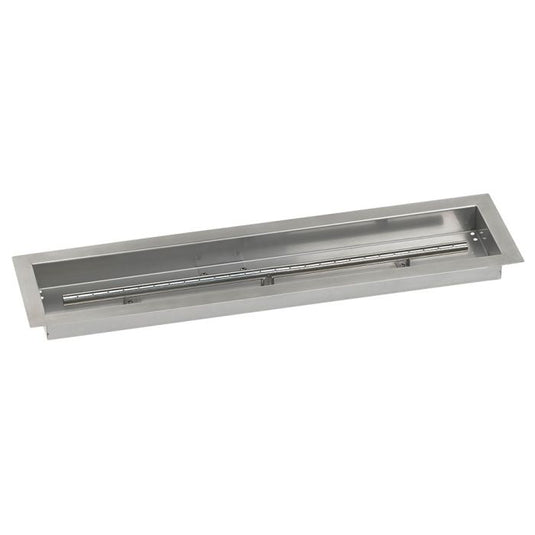

American Fire Products 30"x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane

The American Fire Products 30" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane is a compact and efficient solution for building a modern propane linear fire feature. Designed for smaller fire pits and tight installations, this kit includes a 30" x 6" stainless steel drop-in pan with built-in T-burner, a push-button spark ignition system, and all essential gas connection components for a complete setup.

Made from high-quality 304 stainless steel, this drop-in pan delivers excellent durability and long-term outdoor performance. The integrated false-bottom design reduces fire glass usage while maintaining a full, professional appearance. The drilled burner ports help prevent whistling, while built-in weep holes allow proper drainage for safe operation.

Features

• Complete propane fire pit kit with push-button spark ignition system
• 30" x 6" stainless steel linear drop-in burner pan with built-in T-burner
• Push-button spark ignitor with battery included for easy ignition
• Includes 4' and 5' gas hoses, regulator, chrome key valve with key, and air mixer
• Made from durable 304 stainless steel for outdoor use
• Built-in lip for easy drop-in installation and removal
• False-bottom design reduces fire glass requirements
• Drilled burner holes help prevent whistling
• Weep holes allow proper water drainage
• Designed for outdoor, vented propane fire features only

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Dimensions: 30" L x 6" W x 2" D
• Flange: 1 1/4"
• Fuel Type: Propane
• Burner Type: Built-In T-Burner
• Burner Heat Rating: 60,000 BTU/hr Maximum
• Fire Glass Capacity: 20 lbs (not included)
• Gas Inlet: 1/2"
• Special Features: Drilled burner holes and weep holes
• Application: Outdoor, vented propane fire features only
• Product Weight: 13 lbs

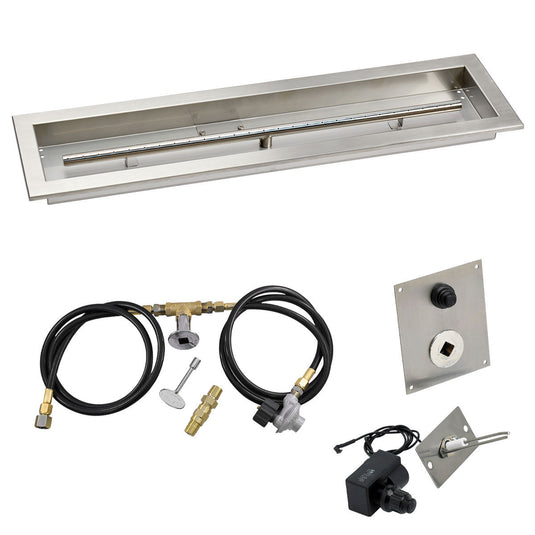

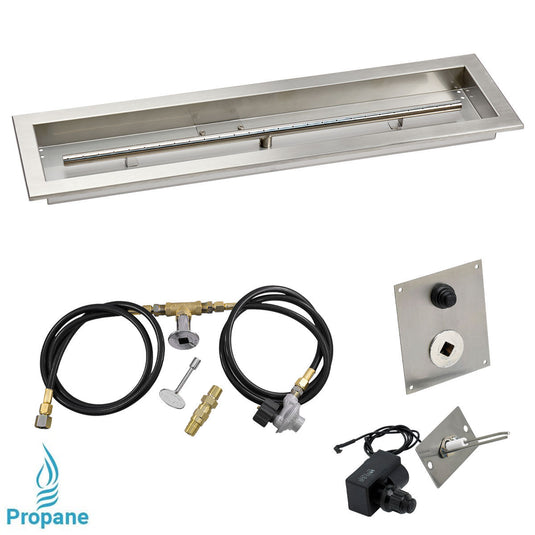

• Included Components
  • 30" x 6" Linear Channel Drop-In Pan
  • Built-In T-Burner
  • Push-Button Spark Ignitor (Battery Included)
  • 4' Gas Hose
  • 5' Gas Hose
  • Regulator
  • Chrome Key Valve with Key
  • Air Mixer
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
