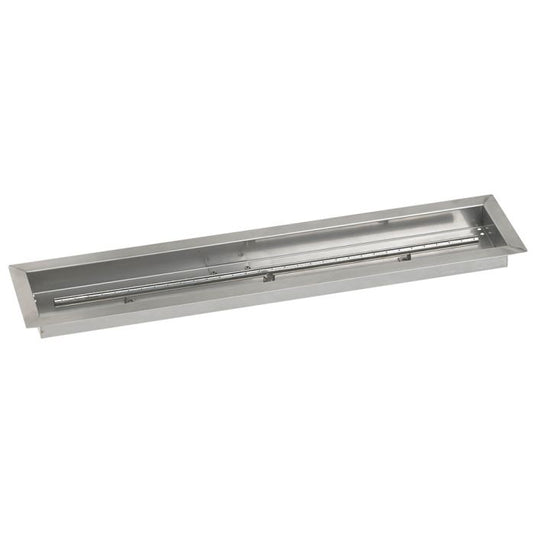

American Fire Products 36"x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane

Upgrade your outdoor space with the American Fire Products 36" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane. Perfect for creating a cozy, inviting fire feature, this stainless steel linear burner pan delivers a reliable flame and an easy-to-use push-button ignition. Designed for propane fire pits, this drop-in pan includes everything needed for a professional, DIY fire pit installation with minimal effort.

Constructed from high-quality 304 stainless steel, the linear drop-in pan features a built-in T-burner, drilled burner holes, and weep holes for water drainage. Its false-bottom design reduces the amount of fire glass needed while maintaining the look of a full fire pit.

Features

• Complete propane fire pit kit with push-button spark ignition
• 36" x 6" stainless steel linear drop-in burner pan
• Built-in T-burner for even flame distribution
• Push-button spark ignitor with battery included
• Includes 4' and 5' gas hoses, regulator, chrome key valve with key, and air-mixer
• Durable handcrafted 304 stainless steel construction
• Built-in lip for easy drop-in installation and removal
• False-bottom design reduces fire glass requirements
• Drilled burner holes prevent whistling noises
• Weep holes allow water drainage
• Designed for outdoor, vented propane gas fire features

Product Specifications

• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Dimensions: 36" L x 6" W x 2" D
• Flange: 1 1/4"
• Fuel Type: Propane
• Burner Type: Built-In T-Burner
• Burner Heat Rating: 65,000 BTU/hr Maximum
• Fire Glass Capacity: 30 lbs (not included)
• Gas Inlet: 1/2"
• Special Features: Drilled burner holes and weep holes
• Application: Outdoor, vented propane fire features only
• Product Weight: 15 lbs

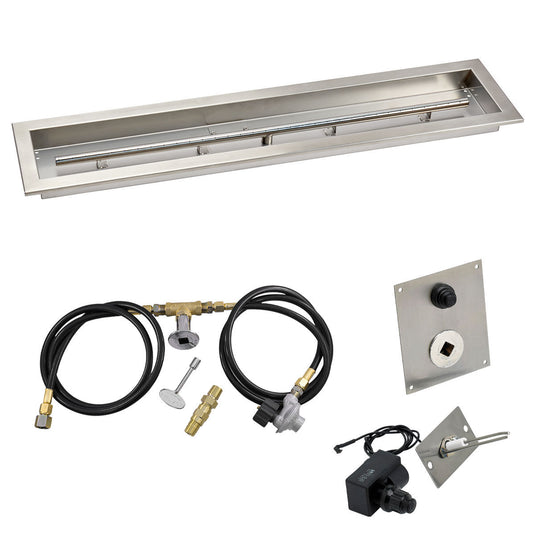

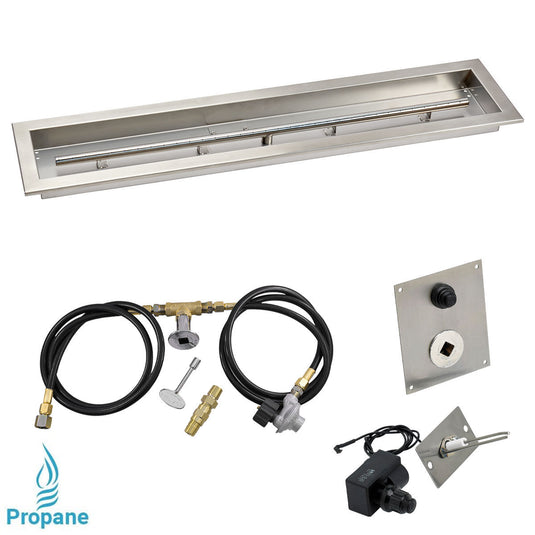

• Included Components
  • 36" x 6" Linear Channel Drop-In Pan
  • Built-in T-burner
  • Push-button spark ignitor (Battery included)
  • 4' and 5' gas hoses
  • Regulator
  • Chrome key valve with key
  • Air mixer
• Optional Accessory
  • Push Button Ignitor Mounting Plate

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
