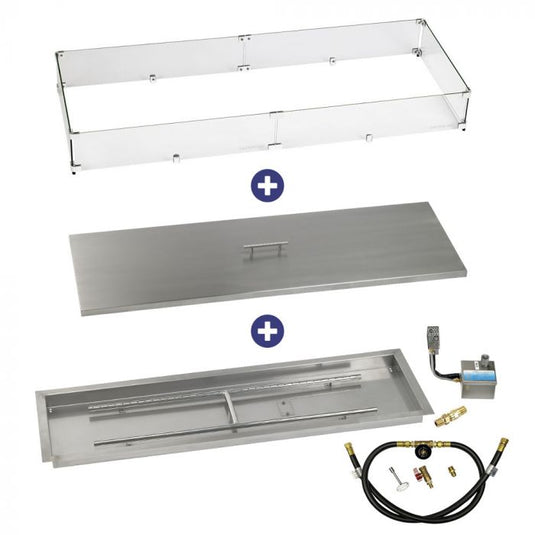

48" x 14" Rectangular Stainless Steel Drop-In Pan with S.I.T. System - Whole House Propane Bundle

Elevate your outdoor gatherings during chilly winter nights with our 48" x 14" Rectangular Stainless Steel Drop-In Pan featuring the innovative S.I.T. System in a convenient Whole House Propane Bundle. This comprehensive kit ensures a hassle-free and cozy fire pit experience for your customers and their guests.Elevate your outdoor space with the perfect blend of safety, innovation, and style from American Fire Glass.

Features:

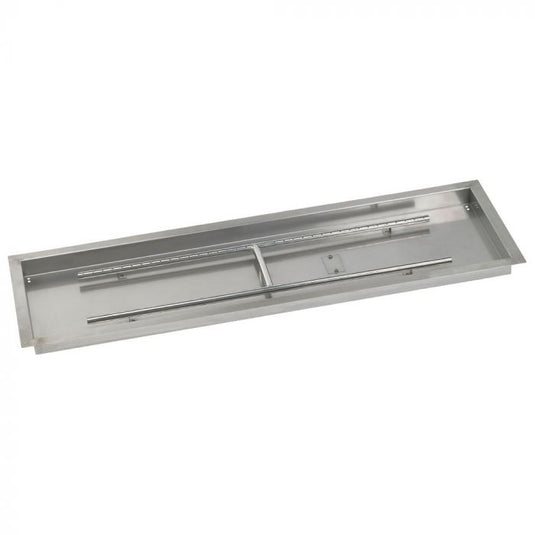

• 48" x 14" Rectangular Drop-in Burner Pan w/ Built-in H-Burner:

  • Durable 100% stainless steel construction.
  • Designed with a convenient 'lip' for easy installation and removal.
  • False bottom reduces required fire glass, creating the illusion of a full fire pit.
  • Built-in H-burner and drilled weep holes prevent water accumulation.
  • Ensures longevity in extreme conditions.

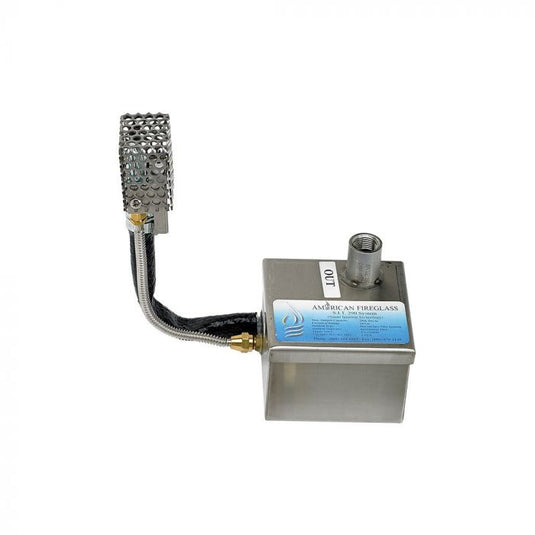

• S.I.T. Electronic Ignition Kit (Whole House Propane):

  • Smart Ignition Technology (S.I.T.) system, the market's smallest electronic ignition.
  • Ideal for fire features with limited vertical space.
  • Includes Hot Surface Ignition control for electronic gas valve operation.
  • Thermopile with automatic flame sensor for added safety.
  • Maximum gas output of 290 BTU/hr, suitable for various fire features.

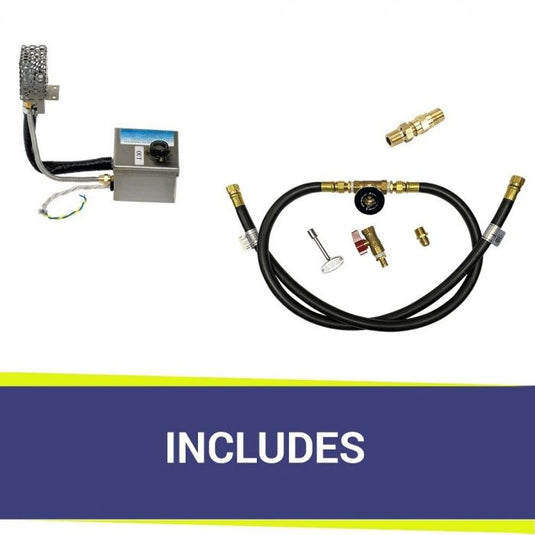

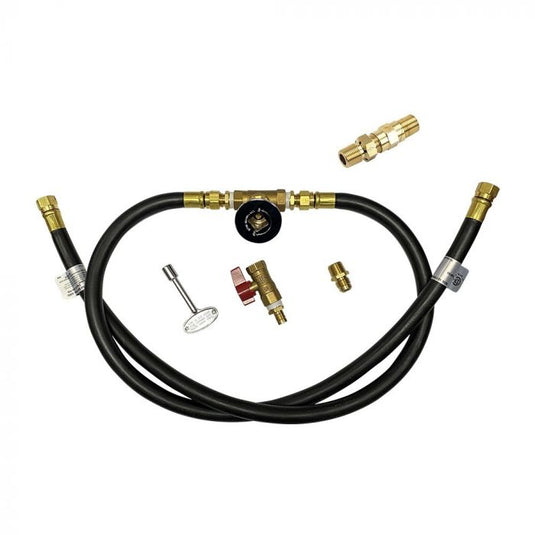

• Additional Components:

  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines
  • Propane Air Mixer
  • Safety reminder: Certified NFI professional installation recommended.

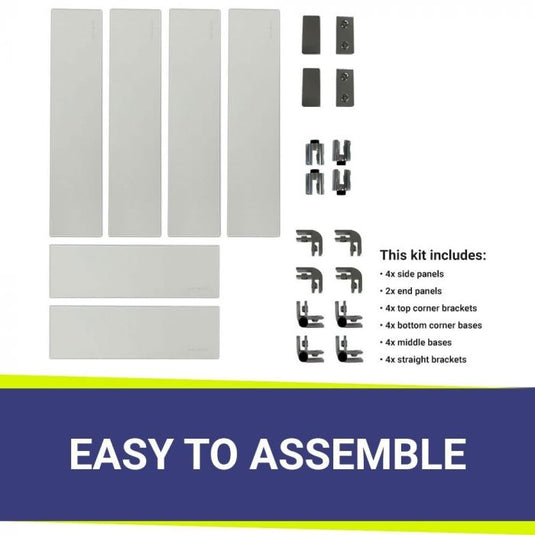

• Rectangular Flame Guard Features:

  • Crafted from tempered glass with polished edges.
  • Provides a safety barrier and maintains a central flame in breezy conditions.
  • Reflects flames on glass surfaces for an elegant fire experience.

• Rectangular Burner Cover Features:

  • High-quality .304 stainless steel construction with a brushed finish.
  • Sturdy chrome handle for easy handling.
  • Protects and complements corresponding drop-in pan units.
  • Ensures longevity and adds style to your fire pit.

Product Specifications

• Flame Guard Specifications

  • Clear Tempered Glass Panels
  • Polished Aluminum Fire-Resistant Brackets
  • Assembled size: 41.5" x 17.5" X 6"

• Burner Cover Specifications

  • High quality .304 stainless steel
  • Smooth brushed finish heavy duty handle
  • Actual size: 39" x 15" x 1.5"

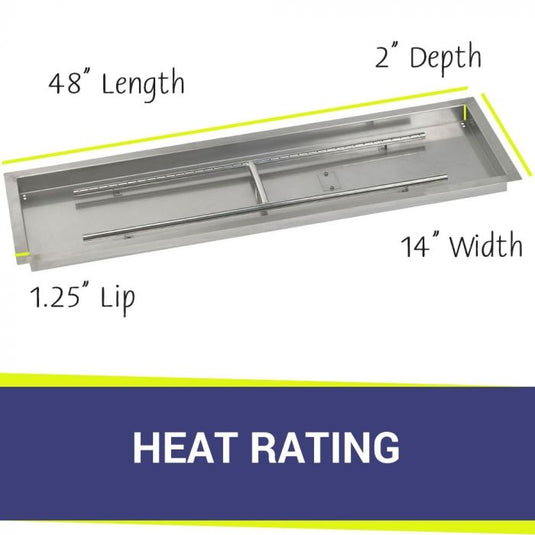

• Fire Pit Pan Specifications

  • Product Weight: 41.00 lbs
  • Material: 100% 304 Stainless Steel (hand crafted)
  • Color: Stainless Steel
  • Style: Contemporary
  • Length: 48"
  • Width: 14"
  • Depth: 2"
  • Flange: 1 1/4"
  • Fuel Type: Whole House Propane
  • Fire glass capacity: 70 lbs of fire glass required (not included)
  • Special Feature: Drilled holes (not punched) in order to prevent whistling
  • Includes: 1/2 bottom gas inlet for easy installation

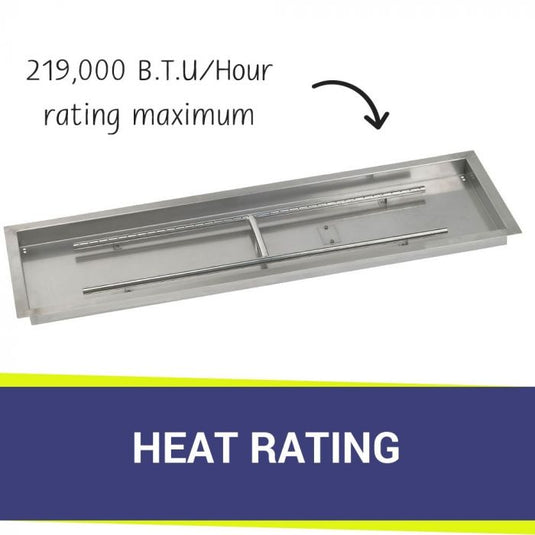

  • Burner Heat rating: 219,000 B.T.U/Hour rating maximum
  • For use in: To be used in outdoor, vented, whole house propane gas fire features ONLY
  • Installation: Certified NFI Professional Recommended
  • Flame / Heat Sense: Thermopile
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Ignition Source: Pilot
  • S.I.T. Max. Btu Output: 290K Btu/hr
  • Inlet / Outlet Size: 1/2" FPT
  • Operating Voltage: 24 volts ac
  • Inlet Gas Press: Limit: 2.0 PSI
  • Valve Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
  • Warranty:Pan & Burner - 5 year limited warranty, Kit - 1 year limited warranty
