American Fire Products 18" Square Stainless Steel Drop-In Pan with AWEIS System (12 Ring) - Natural Gas Bundle

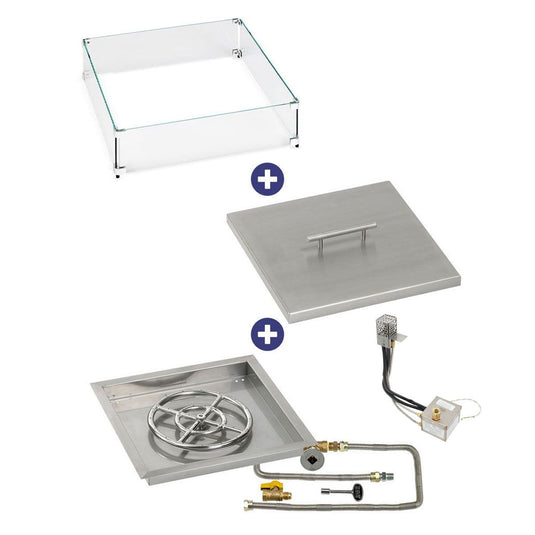

American Fire Products 18" Square Stainless Steel Drop-In Pan with AWEIS System (12" Ring) - Natural Gas Bundle is a compact and reliable outdoor fire pit burner system designed for custom natural gas fire features. This complete bundle includes a 304 stainless steel square drop-in pan, 12-inch stainless steel ring burner, AWEIS all-weather electronic ignition system, tempered glass flame guard, and stainless steel burner cover.

The drop-in pan design creates a false bottom to reduce fire glass usage while maintaining a full flame appearance. The AWEIS electronic ignition system provides convenient push-button operation with automatic flame sensing and safety shut-off features for dependable outdoor fire performance.

Designed for patios, outdoor living spaces, and custom fire pit installations, this American Fire Products bundle delivers durable construction, advanced ignition technology, and professional-quality natural gas flame performance.

Features

• Complete natural gas fire pit bundle includes square drop-in pan, 12-inch ring burner, AWEIS electronic ignition system, flame guard, and stainless steel cover
• Constructed from premium 304 stainless steel for long-lasting durability and heat resistance
• 18-inch square drop-in pan designed for custom outdoor fire pit installations
• Raised flange design allows secure placement and easy installation
• Creates a false bottom to reduce fire glass usage while maintaining a full flame appearance
• Includes 12-inch stainless steel ring burner for balanced flame distribution
• Crossbar burner design improves flame consistency and performance
• Drilled burner ports help reduce whistling noise during operation
• AWEIS (All Weather Electronic Ignition System) provides reliable electronic ignition performance
• Hot surface ignition system electronically controls gas flow and ignition sequence
• Built-in thermopile flame sensor provides automatic safety monitoring
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Supports up to 40 lbs of fire glass (not included)
• Tempered glass flame guard improves wind protection and enhances flame visibility
• 304 stainless steel burner cover protects the burner system when not in use
• Built-in weep holes help prevent water accumulation
• Designed for outdoor vented natural gas fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 18" L × 18" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 12"
• Fire Glass Capacity: 40 lbs (not included)
• Burner Heat Rating: 92,000 BTU/hour maximum
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented natural gas fire features only
• Product Weight: 26 lbs
• Installation: Certified NFI professional recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS All Weather Electronic Ignition System
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Flame Sensor: Thermopile automatic flame sensing
  • AWEIS Maximum Output: 290K BTU/hr
  • Operating Voltage: 24V AC
  • Gas Connection Size: 1/2" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V transformer, safety shut-off valve, key valve, and two gas flex lines
  • Warranty: Pan & Burner - 5 Year Limited Warranty / Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 23.5" × 23.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 21" × 21" × 1.5"
• Bundle Includes
  • (1) 18" Square Stainless Steel Drop-In Pan with AWEIS System (12" Ring) - Natural Gas
  • (1) Square Tempered Glass Flame Guard (23.5" × 23.5" × 6")
  • (1) Square Stainless Steel Burner Cover (21" × 21" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
