American Fire Products 18" Square Stainless Steel Drop-In Pan with AWEIS System (12" Ring) - Whole House Propane

Create a compact yet impressive outdoor fire feature with the American Fire Products 18" Square Stainless Steel Drop-In Pan with AWEIS System (12" Ring) - Whole House Propane. Designed for premium residential and commercial fire pit installations, this complete fire pit system combines a handcrafted stainless steel drop-in pan, a 12" ring burner, and the advanced AWEIS electronic ignition system for dependable performance and beautiful flame presentation.

The 18" square drop-in pan features an integrated flange for easy installation and removal, making it an excellent choice for custom fire pit projects where space is limited. Its false-bottom design reduces the amount of fire glass required while maintaining a full and luxurious appearance. Constructed from 100% 304 stainless steel, the pan provides outstanding durability and resistance to corrosion, heat, and harsh outdoor conditions.

At the heart of the system is the innovative AWEIS (All Weather Electronic Ignition System), engineered for reliable hot surface ignition, automatic flame sensing, and dependable all-weather performance. Paired with the included 12" stainless steel ring burner capable of producing up to 92,000 BTU, this system delivers consistent and evenly distributed flames while offering the convenience and safety of electronic ignition.

Features

• Complete 18" square fire pit system with 12" ring burner and AWEIS electronic ignition
• Designed for outdoor vented whole house propane fire pit applications
• Premium 304 stainless steel construction for superior durability and corrosion resistance
• Built-in 12" stainless steel ring burner with cross-bar design for even flame distribution
• Powerful burner rated up to 92,000 BTU/hour
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Compact ignition system ideal for installations with limited vertical clearance
• Thermopile flame detection enhances operational safety
• False-bottom pan design reduces fire glass requirements and installation costs
• Drilled burner ports help eliminate whistling and unwanted burner noise
• Integrated weep holes prevent water accumulation inside the burner pan
• Includes 24V transformer, safety shut-off valve, key valve, dual gas flex lines, and propane air mixer
• Suitable for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 26 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel

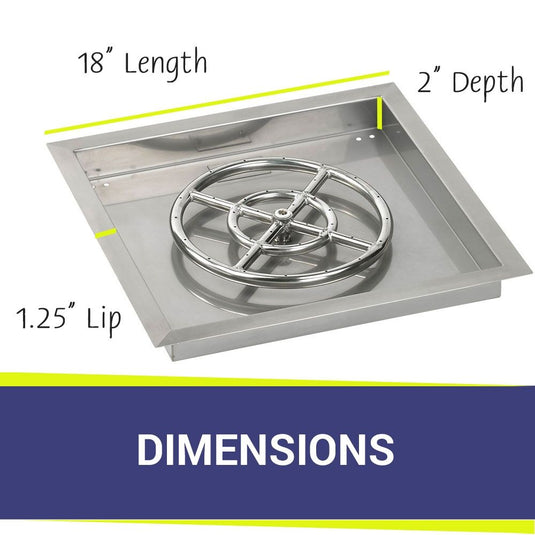

• Dimensions: 18" L x 18" W x 2" D x 1 1/4" Flange
• Fuel Type: Whole House Propane
• Fire Glass Capacity: 34 lbs (Fire Glass Not Included)
• Burner Type: 12" Stainless Steel Ring Burner
• Burner Size: 12"
• Burner Features: Drilled burner ports (anti-whistling design)
• Burner Heat Rating: 92,000 BTU/hour maximum
• Gas Inlet: 1/2" Bottom Gas Inlet
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled burner ports, integrated weep holes, false-bottom design
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

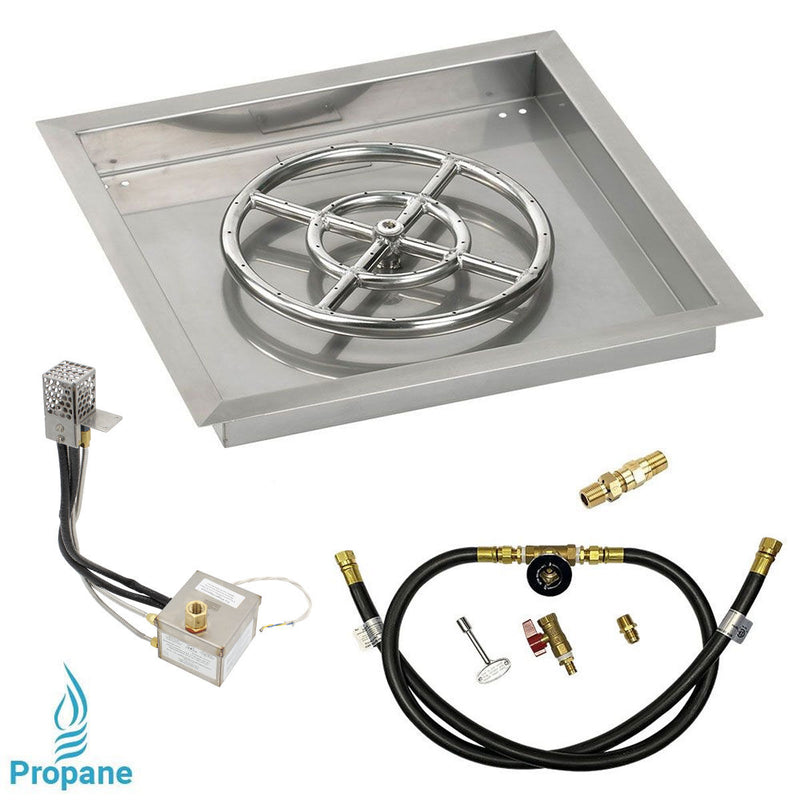

• Included Components
  • 18" Square Stainless Steel Drop-In Burner Pan
  • 12" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
