American Fire Products 18" Square Stainless Steel Drop-In Pan with AWEIS System (12 Ring) - Whole House Propane Bundle

American Fire Products 18" Square Stainless Steel Drop-In Pan with AWEIS System (12" Ring) - Whole House Propane Bundle is a compact and efficient outdoor fire pit burner system designed for custom whole house propane fire features. This complete bundle includes a 304 stainless steel square drop-in pan, 12-inch stainless steel ring burner, AWEIS all-weather electronic ignition system, tempered glass flame guard, and stainless steel burner cover.

The drop-in pan design creates a false bottom to reduce fire glass usage while maintaining a full and elegant flame appearance. The AWEIS electronic ignition system provides convenient switch operation with automatic flame sensing and safety shut-off technology for reliable propane fire performance.

Perfect for patios, outdoor kitchens, and custom fire pit installations, this American Fire Products bundle combines durable stainless steel construction, advanced ignition technology, and professional-quality whole house propane flame performance.

Features

• Complete whole house propane fire pit bundle includes square burner pan, 12-inch ring burner, AWEIS electronic ignition system, flame guard, and stainless steel cover
• Constructed from handcrafted 304 stainless steel for superior durability and heat resistance
• 18-inch square drop-in pan designed for custom outdoor propane fire pit installations
• Raised flange design provides secure placement and easy installation
• Creates a false bottom to reduce fire glass requirements while maintaining a full flame appearance
• Includes 12-inch stainless steel ring burner for consistent flame distribution
• Crossbar burner design improves flame performance and stability
• Drilled burner holes help reduce whistling during operation
• AWEIS (All Weather Electronic Ignition System) provides reliable electronic ignition in outdoor environments
• Hot surface ignition system automatically controls gas valve operation
• Built-in thermopile flame sensor provides automatic flame monitoring and safety protection
• Includes 24V transformer, safety shut-off valve, key valve, gas flex lines, and propane air mixer
• Supports up to 40 lbs of fire glass (not included)
• Tempered glass flame guard provides wind protection and enhances flame appearance
• 304 stainless steel burner cover protects the fire pit system when not in use
• Built-in weep holes help prevent water accumulation
• Designed for outdoor vented whole house propane fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 18" L × 18" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 12"
• Fire Glass Capacity: 40 lbs (not included)
• Burner Heat Rating: 92,000 BTU/hour maximum
• Fuel Type: Whole House Propane
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented whole house propane fire features only
• Product Weight: 26 lbs
• Installation: Certified NFI professional recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS All Weather Electronic Ignition System
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Ignition Source: Pilot
  • Flame Sensor: Thermopile automatic flame sensing
  • AWEIS Maximum Output: 290K BTU/hr
  • Operating Voltage: 24V AC
  • Gas Connection Size: 1/2" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V transformer, safety shut-off valve, key valve, two gas flex lines, and propane air mixer
  • Warranty: Pan & Burner - 5 Year Limited Warranty / Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 23.5" × 23.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 21" × 21" × 1.5"

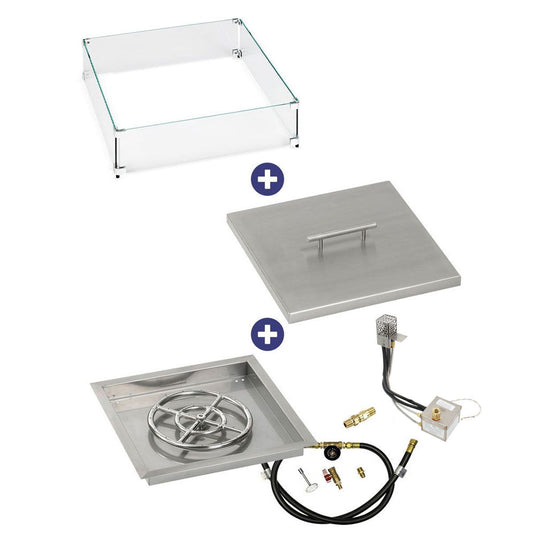

• Bundle Includes
  • (1) 18" Square Stainless Steel Drop-In Pan with AWEIS System (12" Ring) - Whole House Propane
  • (1) Square Tempered Glass Flame Guard (23.5" × 23.5" × 6")
  • (1) Square Stainless Steel Burner Cover (21" × 21" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
