American Fire Products 18" Stainless Steel Square Drop In Pan With 12" Fire Ring

American Fire Products 18" Stainless Steel Square Drop-In Fire Pit Pan With 12" Fire Ring is designed to create a compact and impressive square fire feature with an included 12-inch stainless steel fire ring burner for an even and attractive flame display. The drop-in design with a convenient installation lip makes setup easy while creating a false bottom that helps reduce the amount of fire glass required.

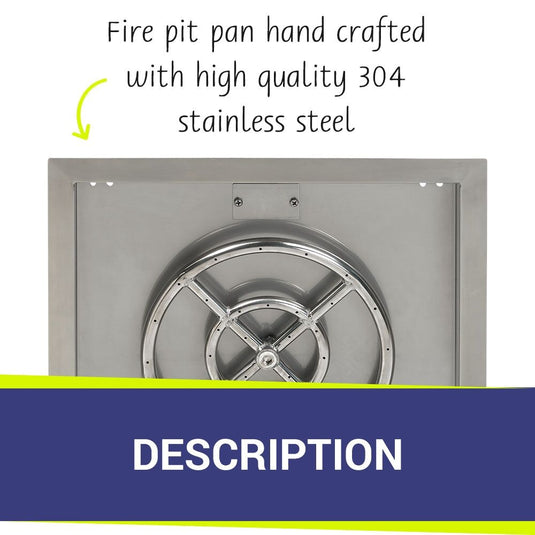

Handcrafted from high-quality 304 stainless steel, this square fire pit pan is built to withstand extreme heat and harsh outdoor conditions. The included 12-inch fire ring burner features a double concentric ring design for enhanced flame coverage, drilled burner holes for smooth operation, and a built-in 1/2-inch gas inlet for easy connection to natural gas or propane.

With built-in weep holes to prevent water accumulation and a maximum heat output of 92,000 BTU/hour, this square drop-in fire pit pan is ideal for outdoor vented fire pits, fire tables, and custom outdoor fire features.

(For propane applications, a propane air mixer is required.)

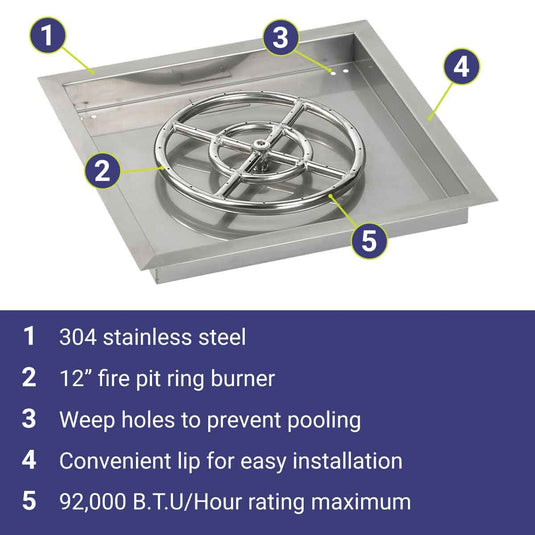

Features

• 18" square stainless steel drop-in fire pit pan
• Includes 12" stainless steel fire ring burner
• Handcrafted from durable 304 stainless steel
• Convenient drop-in design with installation lip
• Creates a false bottom to reduce fire glass usage
• Provides even and consistent flame distribution
• Double concentric ring burner design for wider flame coverage
• Drilled burner holes help prevent loud whistling sounds
• Built-in 1/2" bottom gas inlet for easy installation
• Built-in weep holes help prevent water pooling
• Produces up to 92,000 BTU/hour maximum heat output
• Compatible with natural gas and propane fire features
• Designed for outdoor vented fire features only
• Propane applications require a propane adapter
• Durable construction withstands extreme heat and weather conditions
• Ideal for small square fire pits, fire tables, and custom outdoor fire features

Product Specifications

• Brand: American Fire Products
• Product Type: Square Drop-In Fire Pit Pan Kit
• Material: Handcrafted 304 Stainless Steel

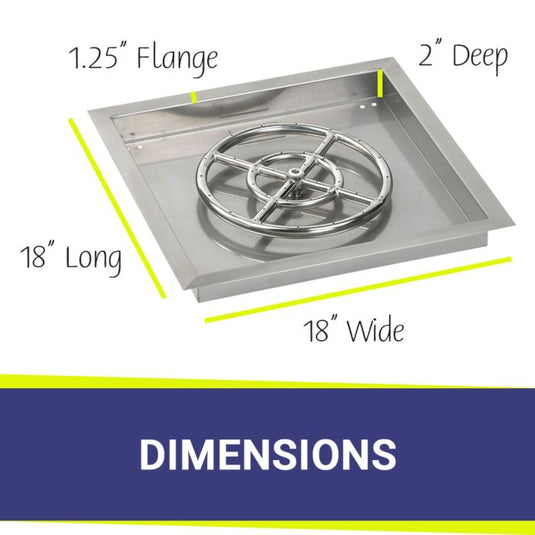

• Dimensions: 18" L × 18" W × 2" D
• Flange: 1.25"
• Weight: 12 lbs
• Description: Stainless steel square fire pit pan with included fire ring burner
• Burner Included: 12" Fire Ring Burner
• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Output: 92,000 BTU/Hour Maximum
• Fuel Compatibility: Natural Gas and Propane
• Installation Location: Outdoor Vented Fire Features Only
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane Adapter Required for Liquid Propane Conversion
• Application: Square Fire Pits, Fire Tables, and Custom Outdoor Fire Features
• Kit Includes
  • 18" Stainless Steel Square Drop-In Fire Pit Pan
  • 12" Stainless Steel Fire Ring Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
