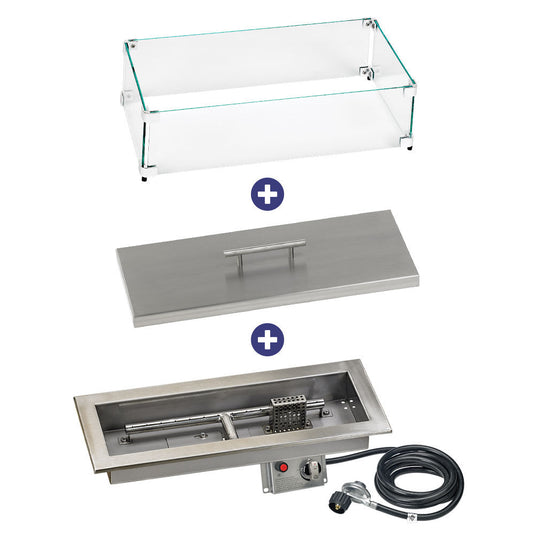

American Fire Products 18" x 6" Rectangular Stainless Steel Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified - Bundle

American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Fire Pit Pan with Electric Ignition System Kit, CSA Certified - Bundle is a complete CSA-certified outdoor fire feature solution designed for safe operation, reliable ignition, and long-lasting performance. This bundle includes a durable 304 stainless steel rectangular drop-in burner pan, battery-powered electric ignition system, tempered glass flame guard, and stainless steel burner cover.

The 18" x 6" rectangular drop-in fire pit pan features reinforced stainless steel construction, rolled edges, and a built-in burner system designed for consistent flame performance. The automatic flame sensor and thermocouple safety system help shut off the gas supply if the flame is extinguished, providing enhanced protection during operation.

Designed for outdoor vented natural gas or propane fire features, this complete CSA-certified bundle provides a professional and elegant solution for custom fire pits, patios, and outdoor entertainment areas.

Features

• Complete CSA-certified fire pit bundle includes burner pan, electric ignition system, flame guard, and burner cover
• Automatic flame sensor and thermocouple safety system shuts off gas flow if flame is lost
• Push-button electric ignition system provides easy and convenient operation
• Battery-powered ignition control eliminates the need for external power connection
• CSA certified for outdoor decorative gas appliance applications
• Made from 100% 304 stainless steel for superior durability and corrosion resistance
• Triple-reinforced side walls and rolled edges provide added strength and prevent warping
• Rectangular drop-in design allows easy installation into custom fire pits
• Drilled burner holes improve flame performance and help prevent whistling
• Convertible between propane and natural gas applications
• Tempered glass flame guard adds a safety barrier and enhances flame reflection
• Stainless steel burner cover protects the burner pan when not in use
• Supports up to 20 lbs of fire glass (not included)
• Designed for outdoor vented fire features only
• Professional installation by a certified NFI professional is recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% 304 Stainless Steel (Hand Crafted)
• Color: Stainless Steel

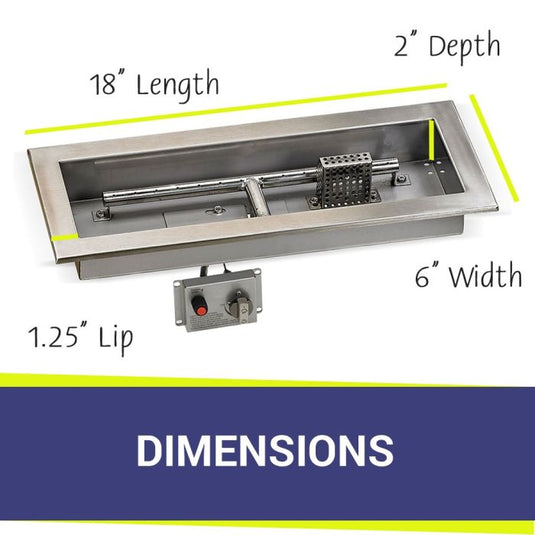

• Pan Size: 18" x 6"
• Fire Glass Capacity: 20 lbs (not included)
• Burner Type: Rectangular Burner System

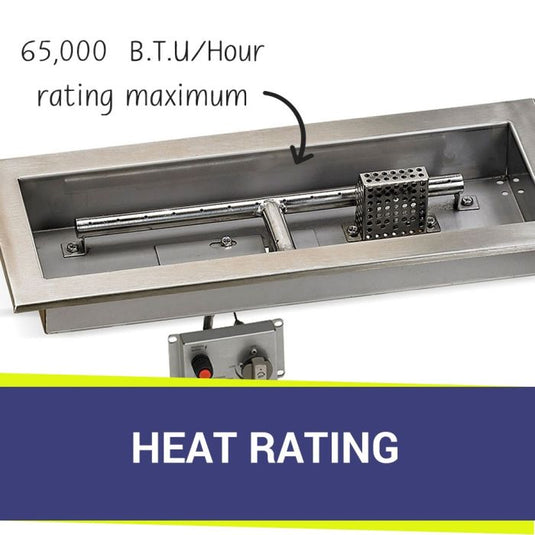

• Maximum Heat Output: 65,000 BTU/hour
• Burner Hole Design: Drilled holes to prevent whistling
• Ignition Type: Push Button Spark Ignition
• Ignition Sequence: Rapid-Fire Spark Ignition
• Flame / Heat Sense: Thermocouple Automatic Gas Shut-Off
• Fuel Type: Propane (Convertible to Natural Gas)
• Battery Type: AA Battery
• Application: Outdoor vented natural gas or propane fire features
• Installation: Certified NFI Professional Recommended
• Certification: CSA Certified under ANSI Z21.97-2014 / CSA 2.41-2014 Outdoor Decorative Gas Appliance
• Electric Ignition System Includes
  • Battery-Powered Push Button Ignition Control
  • Automatic Flame Sensor
  • Thermocouple Safety Shut-Off System
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 23.5" x 11.5" x 6"
• Burner Cover Specifications
  • Material: 304 Stainless Steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 21" x 9" x 1.5"
• Bundle Includes
  • (1) 18" x 6" Rectangular Stainless Steel Drop-In Fire Pit Pan with Electric Ignition System Kit, CSA Certified
  • (1) Rectangular Flame Guard (23.5" x 11.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (21" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
