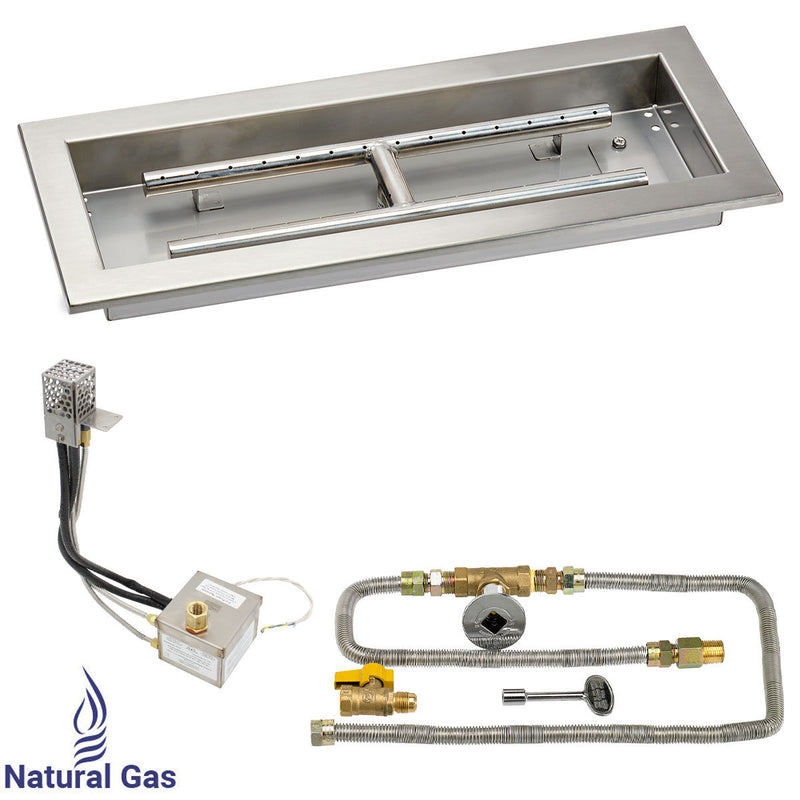

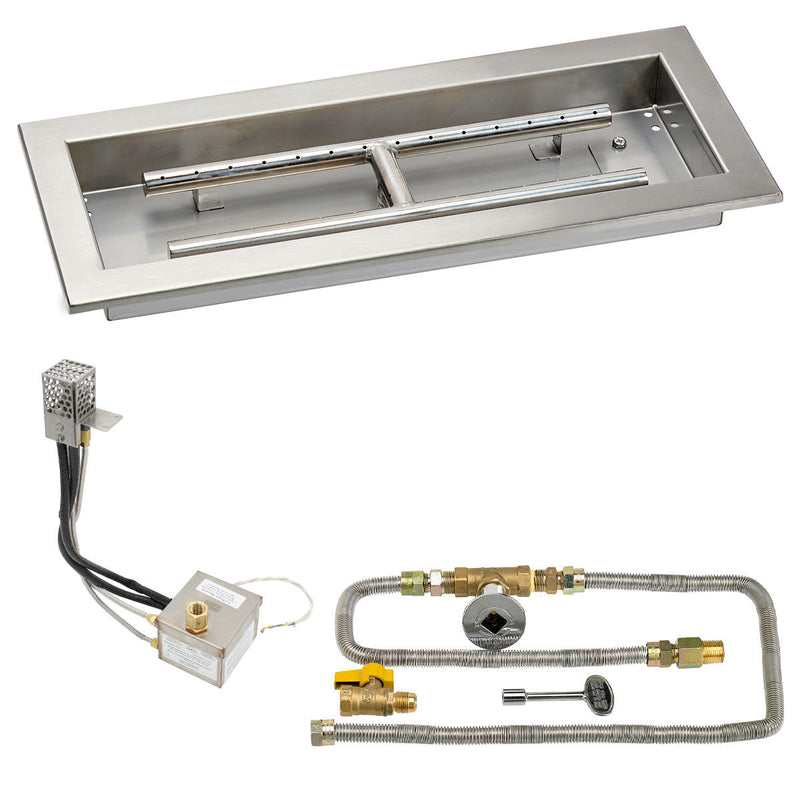

American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas

Create a beautiful and reliable outdoor fire feature with the American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas. Designed for compact fire pit installations, this complete system combines a handcrafted stainless steel drop-in pan, built-in H-burner, and advanced AWEIS electronic ignition technology for dependable ignition, safety, and performance.

Constructed from premium 304 stainless steel, this drop-in pan is built to withstand outdoor environments while resisting rust, corrosion, and extreme temperatures. Its integrated flange allows for simple installation and removal, while the false-bottom design minimizes the amount of fire glass required, reducing material costs without sacrificing appearance.

The built-in stainless steel H-burner delivers a consistent flame pattern with up to 70,000 BTU of heat output. Combined with the AWEIS (All Weather Electronic Ignition System), this unit provides hot surface ignition, automatic flame sensing, and dependable operation in outdoor conditions. Designed specifically for natural gas fire features, this complete kit offers convenience, safety, and long-lasting performance.

Features

• Complete 18" x 6" rectangular fire pit system with AWEIS electronic ignition
• Designed for natural gas outdoor vented fire features
• Built-in stainless steel H-burner for even flame distribution
• Powerful 70,000 BTU maximum heat output
• Premium 304 stainless steel construction for durability and corrosion resistance
• Drop-in pan design with integrated flange for easy installation and maintenance
• False-bottom design reduces fire glass requirements and installation costs
• Drilled burner ports help eliminate whistling and burner noise
• Integrated weep holes prevent water accumulation
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Compact design ideal for smaller residential and commercial fire pit projects
• Built for reliable all-weather outdoor performance

Product Specifications

• Product Weight: 18 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Style: Contemporary

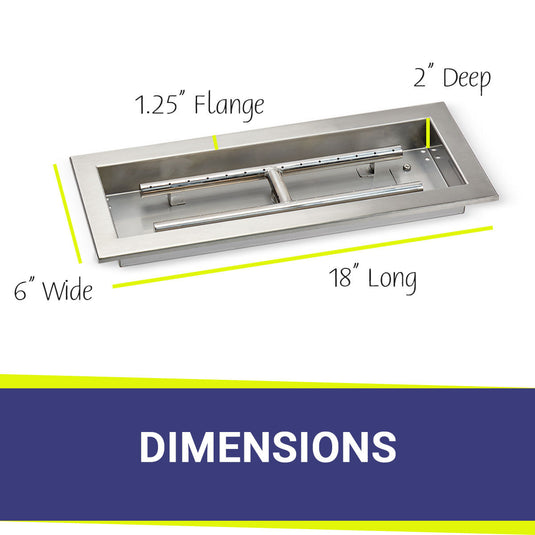

• Dimensions: 18" L x 6" W x 2" D x 1 1/4" Flange
• Fuel Type: Natural Gas
• Fire Glass Capacity: 11 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel H-Burner
• Burner Heat Rating: 70,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 18" x 6" Rectangular Stainless Steel Drop-In Pan
  • Built-In Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
