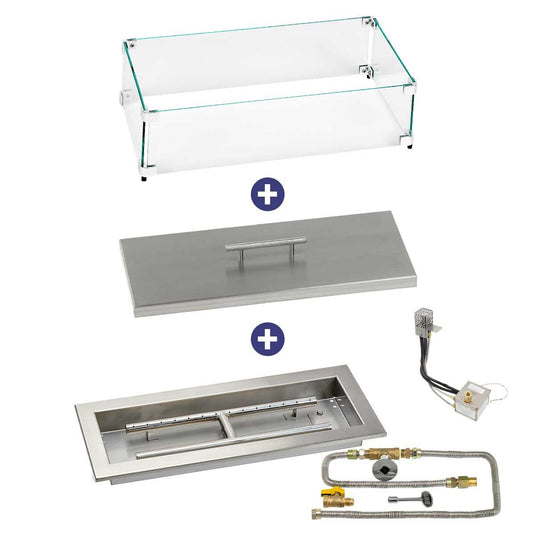

American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas Bundle

American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Fire Pit Pan with AWEIS System - Natural Gas Bundle is a complete outdoor fire feature solution designed for reliable ignition, safety, and a clean modern flame presentation. This bundle includes a handcrafted 304 stainless steel rectangular drop-in burner pan, AWEIS (All Weather Electronic Ignition System), tempered glass flame guard, and stainless steel burner cover.

The 18" x 6" rectangular drop-in fire pit pan features a built-in H-burner that delivers an even flame pattern while the raised flange design allows easy installation into custom fire pits. The false-bottom design reduces the amount of fire glass required while creating the appearance of a full, elegant fire feature.

Equipped with the AWEIS natural gas electronic ignition system, this burner provides dependable ignition, thermopile flame sensing, and automatic safety control. Its compact design makes it ideal for outdoor fire pits with limited installation space while maintaining professional-grade performance.

Designed for custom fire pits, patios, and outdoor entertainment areas, this complete natural gas bundle includes everything needed to create a durable and visually impressive built-in fire feature.

Features

• Complete natural gas fire pit bundle includes burner pan, AWEIS ignition system, flame guard, and stainless steel burner cover
• AWEIS (All Weather Electronic Ignition System) provides reliable electronic ignition and flame control
• Hot surface ignition with intermittent pilot system for safe and consistent operation
• Thermopile flame sensing system helps automatically monitor flame status
• Crafted from 100% 304 stainless steel for excellent durability and corrosion resistance
• Built-in H-burner creates a balanced and attractive flame pattern
• Drop-in design with flange lip allows simple installation into custom fire pits
• Creates a false-bottom effect to reduce fire glass usage while maintaining a full appearance
• Includes drilled weep holes to help prevent water accumulation inside the burner pan
• Drilled burner holes help reduce whistling and improve flame performance
• Compact design ideal for installations with limited vertical space
• Includes 24V transformer, safety shut-off valve, key valve, and two gas flex lines
• Tempered glass flame guard provides additional safety and enhances flame reflection
• Stainless steel burner cover protects the fire pit pan when not in use
• Supports approximately 20 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire features only
• Professional installation by a certified NFI professional is recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% 304 Stainless Steel (hand crafted)
• Color: Stainless Steel
• Style: Contemporary
• Pan Size: 18" L x 6" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Natural Gas
• Burner Type: Built-in H-Burner
• Fire Glass Capacity: 20 lbs (not included)
• Maximum Heat Output: 70,000 BTU/hour
• AWEIS Maximum BTU Output: 290,000 BTU/hour
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Flame / Heat Sense: Thermopile
• Ignition Source: Pilot
• Operating Voltage: 24V AC
• Gas Inlet / Outlet Size: 1/2" FPT
• Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Hole Design: Drilled holes to prevent whistling
• Application: Outdoor vented natural gas fire features
• Installation: Certified NFI professional recommended
• Product Weight: 18 lbs
• Warranty: Pan & Burner: 5-year limited warranty / Kit: 1-year limited warranty
• AWEIS System Includes
  • AWEIS All Weather Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 23.5" x 11.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 21" x 9" x 1.5"
• Bundle Includes
  • (1) 18" x 6" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas
  • (1) Rectangular Flame Guard (23.5" x 11.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (21" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
