American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane Bundle

American Fire Products 18" x 6" Rectangular Stainless Steel Drop-In Fire Pit Pan with AWEIS System - Whole House Propane Bundle is a complete outdoor fire feature solution designed for reliable ignition, enhanced safety, and a modern flame presentation. This bundle includes a durable 304 stainless steel rectangular drop-in burner pan, AWEIS (All Weather Electronic Ignition System), tempered glass flame guard, and stainless steel burner cover.

The 18" x 6" rectangular drop-in fire pit pan features a built-in H-burner that provides an even flame pattern while the raised flange design allows easy installation into custom fire pits. The false-bottom design reduces the amount of fire glass required while creating a full and elegant appearance.

Equipped with the AWEIS whole house propane electronic ignition system, this fire pit burner delivers dependable ignition, thermopile flame sensing, and automatic safety control. Its compact design makes it ideal for custom outdoor fire features with limited installation space while maintaining professional-grade performance.

Designed for outdoor fire pits, patios, and entertainment areas, this complete propane bundle includes everything needed to create a durable and visually impressive built-in fire feature.

Features

• Complete whole house propane fire pit bundle includes burner pan, AWEIS ignition system, flame guard, and stainless steel burner cover
• AWEIS (All Weather Electronic Ignition System) provides reliable electronic ignition and flame control
• Hot surface ignition with intermittent pilot system for safe and consistent operation
• Thermopile flame sensing system helps monitor flame status and improve safety
• Crafted from 100% 304 stainless steel for superior durability and corrosion resistance
• Built-in H-burner creates a balanced and attractive flame pattern
• Drop-in design with flange lip allows easy installation into custom fire pits
• Creates a false-bottom design to reduce fire glass requirements while maintaining a full appearance
• Includes drilled weep holes to help prevent water accumulation
• Drilled burner holes reduce whistling and improve flame performance
• Compact design ideal for installations with limited vertical space
• Includes 24V transformer, safety shut-off valve, key valve, gas flex lines, and propane air mixer
• Tempered glass flame guard provides additional safety and enhances flame reflection
• Stainless steel burner cover protects the fire pit pan when not in use
• Supports approximately 20 lbs of fire glass (not included)
• Designed for outdoor vented whole house propane fire features only
• Professional installation by a certified NFI professional is recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% 304 Stainless Steel (hand crafted)
• Color: Stainless Steel
• Style: Contemporary
• Pan Size: 18" L x 6" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Whole House Propane
• Burner Type: Built-in H-Burner
• Fire Glass Capacity: 20 lbs (not included)
• Maximum Heat Output: 70,000 BTU/hour
• AWEIS Maximum BTU Output: 290,000 BTU/hour
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Flame / Heat Sense: Thermopile
• Ignition Source: Pilot
• Operating Voltage: 24V AC
• Gas Inlet / Outlet Size: 1/2" FPT
• Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Hole Design: Drilled holes to prevent whistling
• Application: Outdoor vented whole house propane fire features
• Installation: Certified NFI professional recommended
• Product Weight: 18 lbs
• Warranty: Pan & Burner: 5-year limited warranty / Kit: 1-year limited warranty
• AWEIS System Includes
  • AWEIS All Weather Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines
  • Propane Air Mixer
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 23.5" x 11.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 21" x 9" x 1.5"

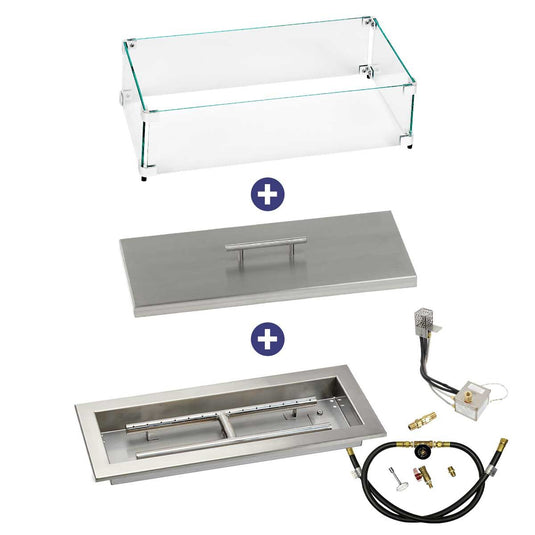

• Bundle Includes
  • (1) 18" x 6" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane
  • (1) Rectangular Flame Guard (23.5" x 11.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (21" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
