American Fire Products 19" Round Drop-In Pan with AWEIS System (12" Fire Pit Ring) - Natural Gas

Create a compact and elegant outdoor fire feature with the American Fire Products 19" Round Drop-In Pan with AWEIS System (12" Fire Pit Ring) - Natural Gas. Designed for residential and commercial fire pit installations, this complete system combines a handcrafted stainless steel round drop-in pan, a 12" ring burner, and the advanced AWEIS electronic ignition system to deliver reliable performance, efficient heating, and a beautiful flame display.

The 19" round drop-in pan features a built-in lip that allows for easy installation and removal, making it ideal for custom circular fire pit designs. Its false-bottom construction reduces fire glass requirements while maintaining a full, premium appearance. Made from 100% 304 stainless steel, the pan provides excellent durability against extreme heat, corrosion, and outdoor weather conditions.

The integrated AWEIS (All Weather Electronic Ignition System) provides dependable hot surface ignition, automatic flame sensing, and reliable operation in changing weather conditions. Combined with the 12" stainless steel ring burner producing up to 92,000 BTU, this system delivers even flame distribution and convenient electronic ignition performance for outdoor living spaces.

Features

• Complete 19" round fire pit system with 12" ring burner and AWEIS electronic ignition
• Designed for outdoor vented natural gas fire pit applications
• Premium 304 stainless steel construction for maximum durability and corrosion resistance
• Built-in 12" stainless steel ring burner with cross-bar design for improved flame distribution
• Burner rated up to 92,000 BTU/hour maximum output
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Thermopile flame detection provides enhanced safety and reliable operation
• Compact design ideal for smaller outdoor fire features
• False-bottom pan design reduces fire glass usage and installation costs
• Drilled burner ports help reduce whistling and unwanted burner noise
• Integrated weep holes prevent water accumulation inside the burner pan
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Suitable for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 26 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Shape: Round

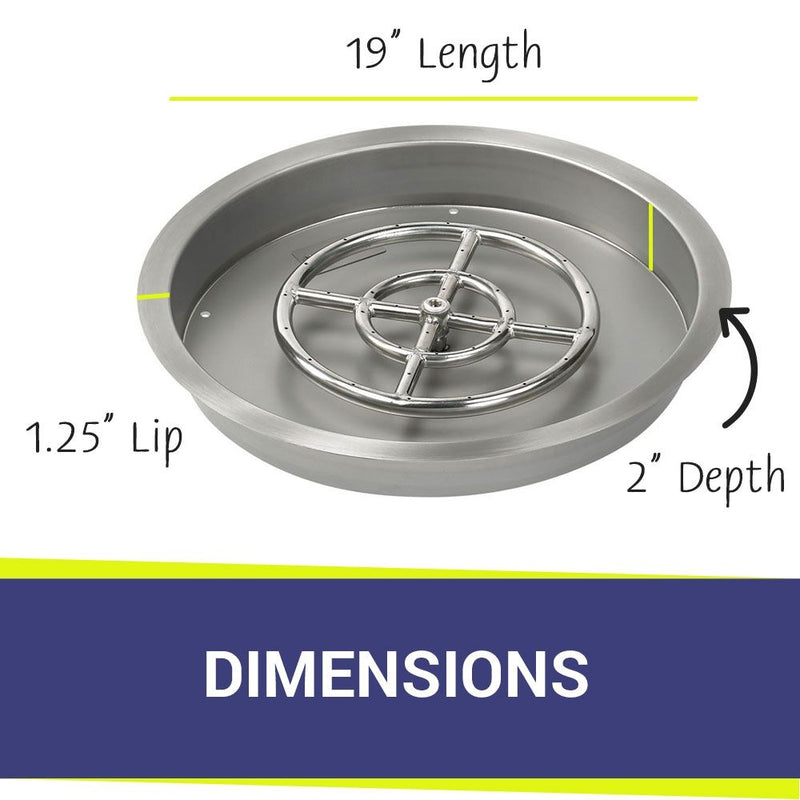

• Dimensions: 19" Diameter
• Fuel Type: Natural Gas
• Fire Glass Capacity: 27 lbs (Fire Glass Not Included)
• Burner Type: 12" Stainless Steel Ring Burner
• Burner Size: 12"
• Burner Features: Drilled burner ports (anti-whistling design)
• Burner Heat Rating: 92,000 BTU/hour maximum
• Gas Inlet: 1/2" Bottom Gas Inlet
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled burner ports, integrated weep holes, false-bottom design
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

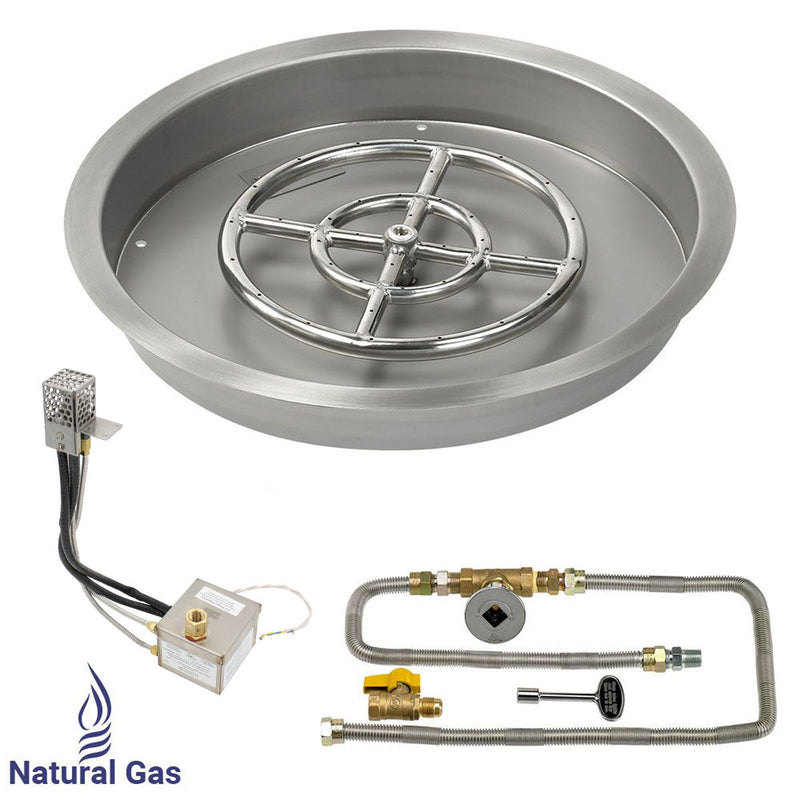

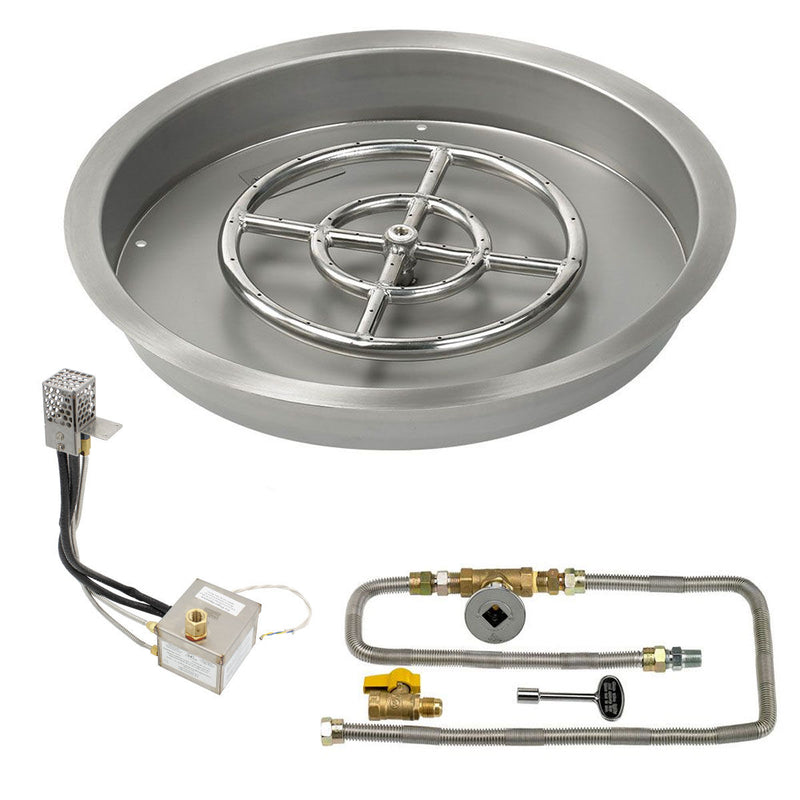

• Included Components
  • 19" Round Stainless Steel Drop-In Burner Pan
  • 12" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
