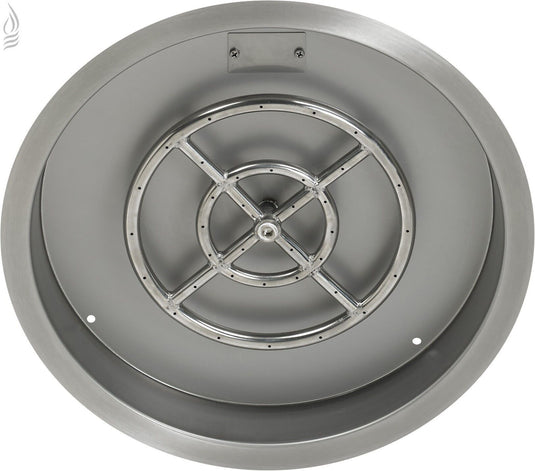

American Fire Products 19" Stainless Steel Round Drop-In Pan With 12" Ring Burner

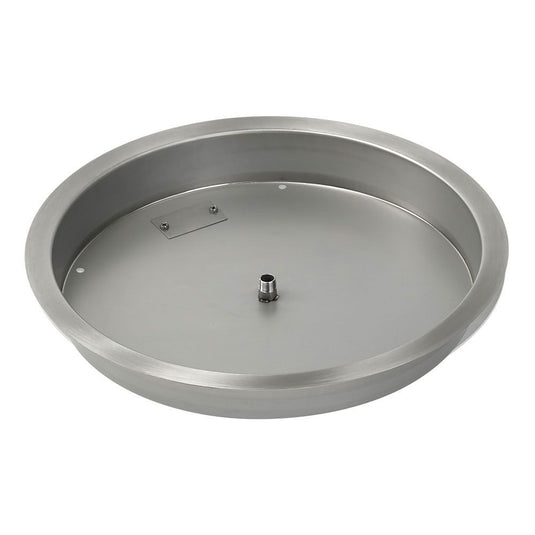

American Fire Products 19" Stainless Steel Round Drop-In Pan With 12" Ring Burner is designed to create a beautiful round fire feature while reducing the amount of fire glass required for installation. Featuring an included 12-inch double concentric fire ring burner and a convenient drop-in design with a 1-1/4-inch flange, this premium fire pit pan creates a false bottom that minimizes fire glass usage while delivering a realistic, evenly distributed flame.

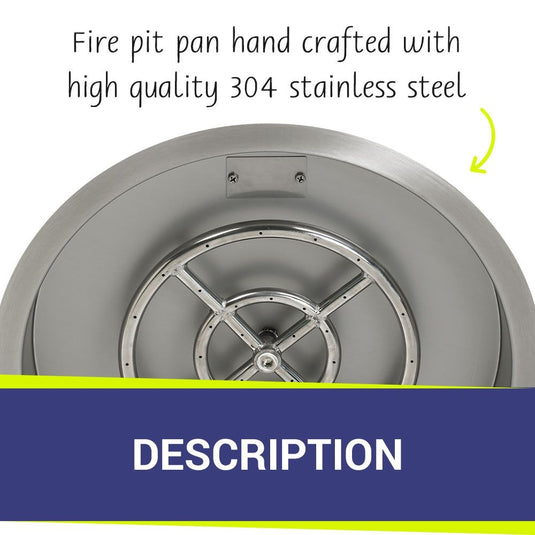

Handcrafted from high-quality 304 stainless steel, this round drop-in pan is built to withstand extreme temperatures and harsh outdoor weather without rusting or corroding. The precision-drilled burner holes eliminate loud whistling, while built-in weep holes help prevent water accumulation. A built-in 1/2-inch gas inlet allows for easy installation with natural gas or propane fire features.

Designed exclusively for outdoor vented fire features, this complete fire pit kit includes a 12-inch stainless steel fire ring burner capable of producing up to 92,000 BTU/hour. For propane installations, a propane adapter is required.

Features

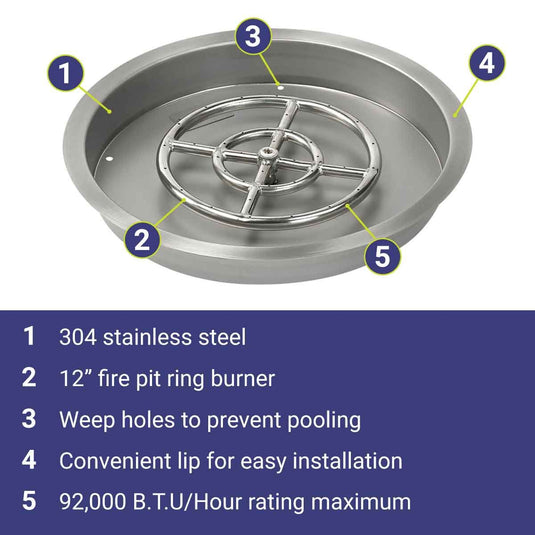

• Premium 19" round stainless steel drop-in fire pit pan
• Includes 12" stainless steel double concentric fire ring burner
• Handcrafted from 304 stainless steel for long-lasting durability
• Drop-in design creates a false bottom to reduce fire glass usage
• 1-1/4-inch flange allows for secure and simple installation
• Precision-drilled burner holes help eliminate whistling
• Built-in 1/2-inch bottom gas inlet for easy gas connection
• Built-in weep holes help prevent water accumulation
• Produces up to 92,000 BTU/hour
• Compatible with natural gas and propane
• Designed for outdoor vented fire features only
• Withstands harsh weather and extreme temperatures
• Ideal for round fire pits and custom outdoor fire features
• Propane installations require a propane adapter

Product Specifications

• Brand: American Fire Products
• Product Type: Round Drop-In Fire Pit Pan
• Material: Handcrafted 304 Stainless Steel

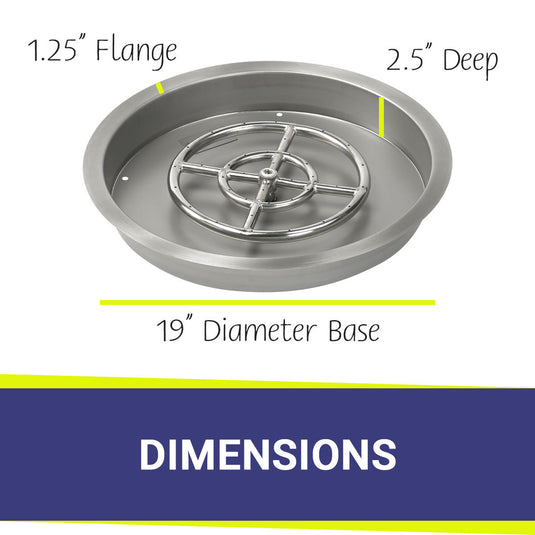

• Dimensions: 19" Diameter × 2.5" Deep
• Flange: 1-1/4"
• Weight: 13 lbs
• Description: Stainless steel round drop-in fire pit pan with included 12" fire ring burner
• Burner Included: 12" Double Concentric Fire Ring Burner

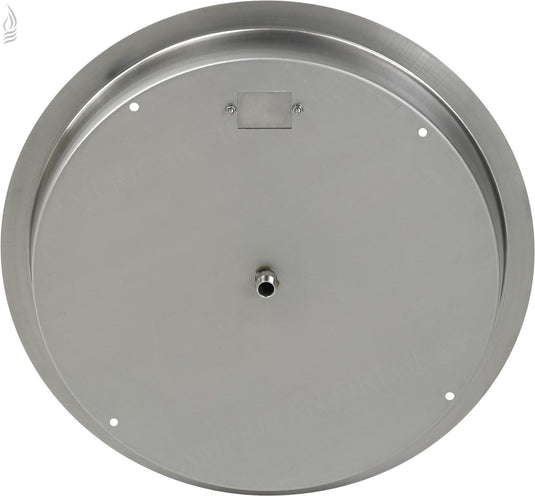

• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Output: Up to 92,000 BTU/Hour
• Fuel Compatibility: Natural Gas and Propane
• Installation Location: Outdoor Vented Fire Features Only
• Burner Holes: Precision Drilled (No Whistling)
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane Adapter Required for Liquid Propane Conversion
• Application: Round Fire Pits and Custom Outdoor Fire Features
• Kit Includes
  • 19" Stainless Steel Round Drop-In Fire Pit Pan
  • 12" Stainless Steel Fire Ring Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
