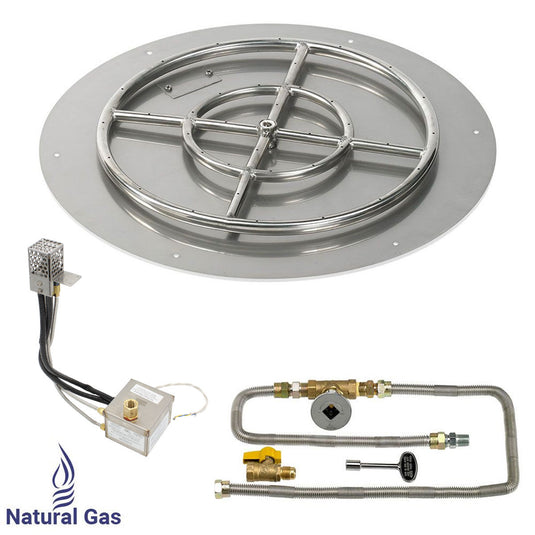

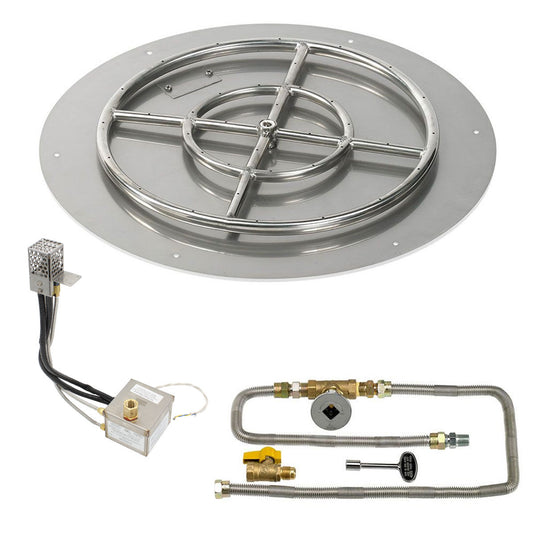

American Fire Products 24" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Natural Gas

Upgrade your outdoor fire feature with the American Fire Products 24" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Natural Gas. Designed for dependable ignition performance and clean flame presentation, this complete burner system is ideal for compact to mid-size natural gas fire pit installations.

The system includes a durable 24" stainless steel flat burner pan engineered to reduce fire glass consumption while delivering a full and professional flame appearance. Built from high-quality stainless steel, it offers excellent resistance to rust, corrosion, and extreme outdoor temperatures. Integrated weep holes help prevent water buildup for improved longevity.

At the center of the system is an 18" stainless steel ring burner, designed for even flame distribution and efficient gas flow. Its drilled burner ports reduce whistling noise and ensure a smooth, consistent burn for an enhanced visual fire experience.

The included AWEIS (All Weather Electronic Ignition System) provides reliable electronic ignition with hot surface technology and automatic flame sensing. Compact and efficient, it is designed for natural gas fire features with limited installation space while maintaining strong performance and safety.

Features

• Complete 24" round fire pit burner system with AWEIS electronic ignition
• Designed for natural gas outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes 18" 304 stainless steel ring burner
• Compact AWEIS ignition system with flame sensing technology
• Safe hot surface ignition (glow plug) operation
• Produces up to 147,000 BTU/hour burner output
• Drilled burner ports reduce whistling and unwanted noise
• Built-in weep holes prevent water accumulation
• Efficient design reduces fire glass usage
• Optimized for 2"–4" fire glass layer
• Delivers consistent flame distribution and smooth combustion
• Includes full ignition and gas control components
• Recommended for certified NFI professional installation

Product Specifications

• Product Weight: 27 lbs
• Material: 100% Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Pan Dimensions: 24" Round
• Burner Size: 18" Ring Burner
• Burner Material: 304 Stainless Steel (Handcrafted)
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet / Outlet Size: 1/2" FPT
• Burner Heat Rating: 147,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Ring Burner Features: Drilled holes (not punched) to prevent whistling
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 24" Round Stainless Steel Flat Burner Pan
  • 18" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System (Natural Gas)
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
