American Fire Products 24" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Whole House Propane

Bring reliable ignition and consistent flame performance to your outdoor fire feature with the American Fire Products 24" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Whole House Propane. Designed for compact to mid-size fire pit installations, this complete burner system delivers efficient flame output, durable construction, and advanced electronic ignition control.

The system features a precision-engineered 24" stainless steel flat burner pan that reduces fire glass usage while creating a full, professional flame appearance. Constructed from high-quality stainless steel, it resists rust, corrosion, and high heat exposure, making it ideal for long-term outdoor use. Integrated weep holes help prevent water accumulation inside the pan.

At the core of the system is the 18" stainless steel ring burner, designed for smooth and even flame distribution. Its drilled ports eliminate whistling noises and improve gas flow efficiency, ensuring a clean and stable fire display.

The included AWEIS (All Weather Electronic Ignition System) provides safe and dependable ignition through hot surface technology and automatic flame sensing. Compact in design, it is ideal for fire features with limited space while still delivering reliable performance for whole house propane systems.

Features

• Complete 24" round fire pit burner system with AWEIS electronic ignition
• Designed for whole house propane outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes 18" 304 stainless steel ring burner
• Compact and efficient AWEIS ignition system with flame sensing
• Safe hot surface ignition (glow plug) technology
• Produces up to 147,000 BTU/hour burner output
• Drilled burner ports reduce whistling and noise
• Built-in weep holes prevent water accumulation
• Optimized for use with 2"–4" fire glass layer
• Efficient flame distribution for clean and consistent burn
• Includes full ignition and gas control components
• Recommended for certified NFI professional installation

Product Specifications

• Product Weight: 27 lbs
• Material: 100% Stainless Steel (Handcrafted)
• Color: Stainless Steel

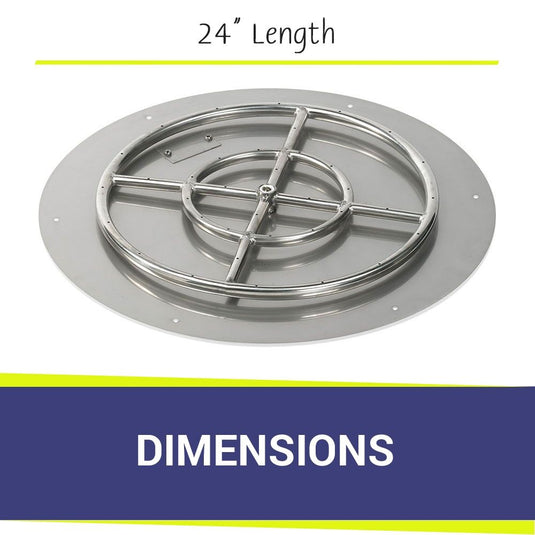

• Pan Dimensions: 24" Round
• Burner Size: 18" Ring Burner
• Burner Material: 304 Stainless Steel (Handcrafted)
• Fuel Type: Whole House Propane
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet / Outlet Size: 1/2" FPT
• Burner Heat Rating: 147,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Ring Burner Features: Drilled holes (not punched) to prevent whistling
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

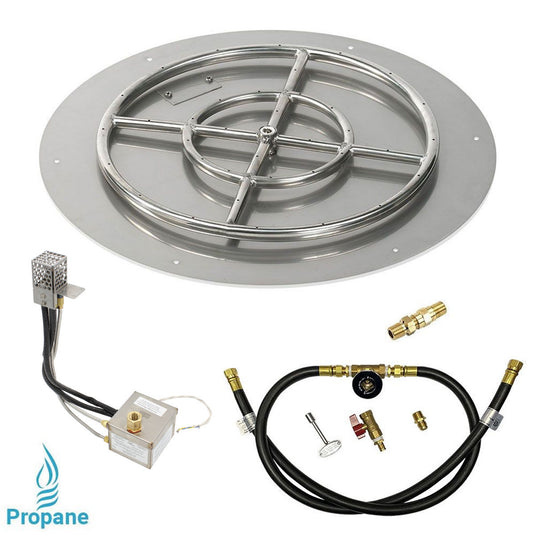

• Included Components
  • 24" Round Stainless Steel Flat Burner Pan
  • 18" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System (Whole House Propane)
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
