American Fire Products 24" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane Bundle

American Fire Products 24" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane Bundle is a complete outdoor fire pit burner system designed for custom propane fire features. This bundle includes a durable 304 stainless steel square drop-in pan, 18" ring burner, push-button spark ignition system, tempered glass flame guard, and stainless steel burner cover.

The drop-in pan design creates a false bottom to reduce fire glass usage while maintaining an elegant flame appearance. The 18" stainless steel ring burner provides consistent flame distribution with drilled burner ports for quiet and reliable operation.

Designed for outdoor propane fire pits, patios, and entertainment areas, this bundle delivers durable construction, convenient ignition, and professional-quality fire performance.

Features

• Complete propane fire pit bundle includes square burner pan, ring burner, spark ignition system, flame guard, and stainless steel burner cover
• Constructed from high-quality 304 stainless steel for durability and resistance to heat and outdoor elements
• 24" square drop-in pan design provides easy installation into custom fire pit applications
• Raised flange design allows secure placement and easy removal when needed
• Creates a false bottom to reduce fire glass usage while maintaining a full flame appearance
• Includes 18" stainless steel ring burner for consistent flame distribution
• Crossbar burner design improves flame performance and stability
• Drilled burner ports help reduce whistling noise compared to punched holes
• Push-button spark ignition system provides quick and convenient flame startup
• Includes propane air mixer and portable propane tank regulator for propane operation
• Supports up to 60 lbs of fire glass (not included)
• Tempered glass flame guard provides wind protection and enhances flame visibility
• Stainless steel burner cover protects the fire pit pan when not in use
• Heavy-duty construction withstands high temperatures and outdoor conditions
• Designed for outdoor vented propane gas fire features
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 24" L x 24" W x 2" D
• Flange Size: 1 1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 60 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Propane
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to prevent whistling
• Application: Outdoor vented propane gas fire features only
• Installation: Certified NFI professional recommended
• Ignition System Specifications
  • Ignition Type: Push-button spark ignition
  • Ignition Source: Battery-powered spark ignitor
  • Includes: Propane air mixer
  • Includes: Portable propane tank regulator
  • Connection Accessories: Gas hose, chrome key valve, and key
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 29.5" x 29.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 27" x 27" x 1.5"

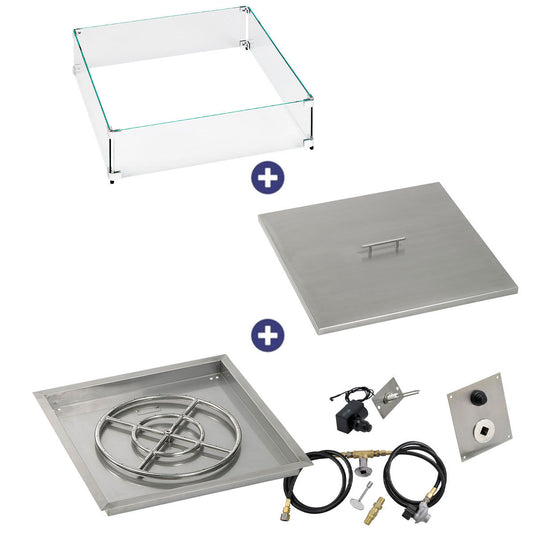

• Bundle Includes
  • (1) 24" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane
  • (1) Square Tempered Glass Flame Guard (29.5" x 29.5" x 6")
  • (1) Square Stainless Steel Burner Cover (27" x 27" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
