American Fire Products 24" Square Stainless Steel Drop-In Pan with AWEIS System (18 Ring) - Natural Gas Bundle

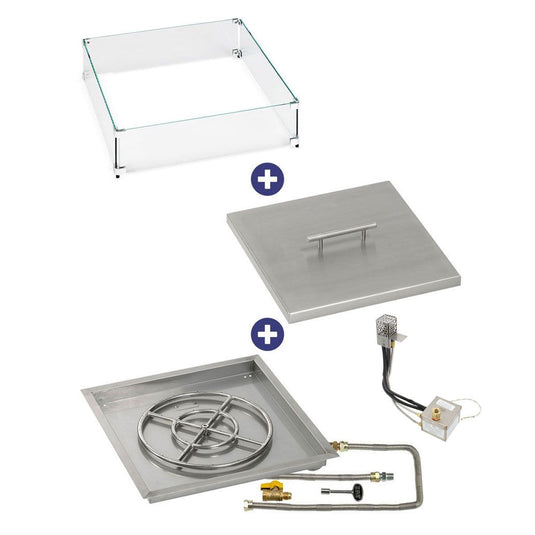

American Fire Products 24" Square Stainless Steel Drop-In Pan with AWEIS System (18" Ring) - Natural Gas Bundle is a premium outdoor fire pit burner system designed for custom natural gas fire features requiring reliable electronic ignition and high-quality performance. This complete bundle includes a 24-inch square 304 stainless steel drop-in pan, 18-inch stainless steel ring burner, AWEIS All Weather Electronic Ignition System, tempered glass flame guard, and stainless steel burner cover.

The drop-in burner pan design creates a false bottom that reduces fire glass usage while maintaining a full, elegant flame appearance. The 18-inch stainless steel ring burner provides consistent flame distribution with drilled burner ports, while the AWEIS electronic ignition system delivers convenient push-button operation with advanced safety controls.

Designed for residential and commercial outdoor fire pits, patios, and entertainment spaces, this American Fire Products bundle combines durable stainless steel construction, automated ignition, and professional-grade fire performance for long-lasting outdoor enjoyment.

Features

• Complete natural gas fire pit bundle includes stainless steel drop-in pan, ring burner, AWEIS electronic ignition system, flame guard, and burner cover
• Constructed from 100% handcrafted 304 stainless steel for superior durability and heat resistance
• 24-inch square drop-in pan designed for custom outdoor fire pit installations
• Raised flange design allows easy installation and secure placement
• Creates a false bottom to reduce fire glass requirements while maintaining a full flame appearance
• Includes 18-inch stainless steel ring burner for powerful and even flame distribution
• Drilled burner ports help prevent whistling noises during operation
• Crossbar burner design improves flame consistency and performance
• Supports up to 60 lbs of fire glass (not included)
• AWEIS All Weather Electronic Ignition System provides reliable automatic ignition
• Hot Surface Ignition (Glow Plug) system with intermittent pilot safety operation
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Thermopile flame sensing system provides additional safety protection
• AWEIS system supports up to 290,000 BTU/hour maximum output
• Tempered glass flame guard protects flame from wind and enhances flame appearance
• 304 stainless steel burner cover protects the burner system when not in use
• Built-in weep holes help prevent water accumulation inside the pan
• Designed for outdoor vented natural gas fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 24" L × 24" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 60 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented natural gas fire features only
• Product Weight: 33 lbs
• Installation: Certified NFI professional recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS All Weather Electronic Ignition System
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Flame Sensor: Thermopile
  • Ignition Source: Pilot
  • Maximum BTU Output: 290,000 BTU/hour
  • Operating Voltage: 24V AC
  • Inlet / Outlet Size: 1/2" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V transformer, safety shut-off valve, key valve, and two gas flex lines
  • Warranty: Pan & Burner - 5 Year Limited Warranty / Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 29.5" × 29.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 27" × 27" × 1.5"
• Bundle Includes
  • (1) 24" Square Stainless Steel Drop-In Pan with AWEIS System (18" Ring) - Natural Gas
  • (1) Square Tempered Glass Flame Guard (29.5" × 29.5" × 6")
  • (1) Square Stainless Steel Burner Cover (27" × 27" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
