American Fire Products 24" Square Stainless Steel Drop-In Pan with AWEIS System (18 Ring) - Whole House Propane Bundle

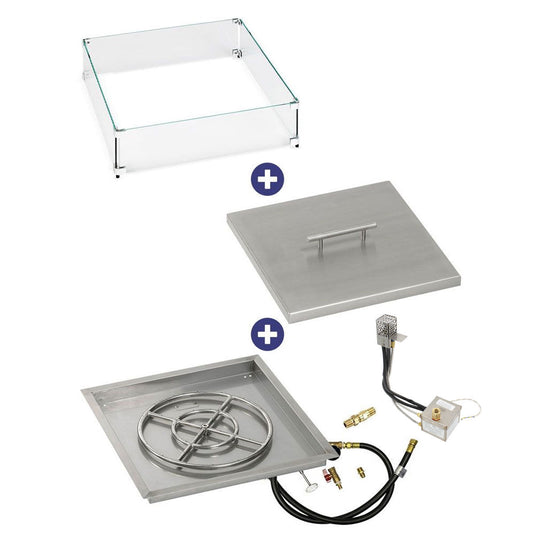

American Fire Products 24" Square Stainless Steel Drop-In Pan with AWEIS System (18" Ring) - Whole House Propane Bundle is a premium outdoor propane fire pit burner system designed for custom fire features requiring reliable electronic ignition and high-performance flame control. This complete bundle includes a 24-inch square 304 stainless steel drop-in pan, 18-inch stainless steel ring burner, AWEIS All Weather Electronic Ignition System, tempered glass flame guard, and stainless steel burner cover.

The square drop-in pan design creates a false bottom that helps reduce fire glass usage while maintaining a full and elegant flame appearance. The 18-inch stainless steel ring burner delivers consistent flame distribution with drilled burner ports, while the AWEIS electronic ignition system provides convenient switch-operated ignition with advanced safety features.

Designed for residential and commercial outdoor fire pits, patios, and entertainment spaces, this American Fire Products whole house propane bundle combines durable stainless steel construction, automated ignition technology, and professional-grade performance for a reliable outdoor fire experience.

Features

• Complete whole house propane fire pit bundle includes stainless steel drop-in pan, ring burner, AWEIS electronic ignition system, flame guard, and burner cover
• Constructed from 100% handcrafted 304 stainless steel for superior durability and resistance to extreme heat and weather
• 24-inch square drop-in pan designed for custom outdoor propane fire pit installations
• Raised flange design allows secure placement and easy installation
• Creates a false bottom to reduce fire glass requirements while maintaining a full flame appearance
• Includes 18-inch stainless steel ring burner for even and powerful flame distribution
• Drilled burner holes help minimize whistling sounds during operation
• Crossbar burner design improves flame consistency and flame spread
• Supports up to 60 lbs of fire glass (not included)
• AWEIS All Weather Electronic Ignition System provides reliable automatic ignition operation
• Hot Surface Ignition (Glow Plug) technology with intermittent pilot safety system
• Includes 24V transformer, safety shut-off valve, key valve, gas flex lines, and propane air mixer
• Thermopile flame sensing system provides enhanced safety monitoring
• AWEIS system supports up to 290,000 BTU/hour maximum output
• Tempered glass flame guard helps protect flames from wind and improves visual appearance
• 304 stainless steel burner cover protects the burner system when not in use
• Built-in weep holes help prevent water accumulation inside the burner pan
• Designed for outdoor vented whole house propane fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 24" L × 24" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 60 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Whole House Propane
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented whole house propane fire features only
• Product Weight: 33 lbs
• Installation: Certified NFI professional recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS All Weather Electronic Ignition System
  • Fuel Compatibility: Whole House Propane
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Flame Sensor: Thermopile
  • Ignition Source: Pilot
  • Maximum BTU Output: 290,000 BTU/hour
  • Operating Voltage: 24V AC
  • Inlet / Outlet Size: 1/2" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V transformer, safety shut-off valve, key valve, two gas flex lines, propane air mixer
  • Warranty: Pan & Burner - 5 Year Limited Warranty / Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 29.5" × 29.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 27" × 27" × 1.5"
• Bundle Includes
  • (1) 24" Square Stainless Steel Drop-In Pan with AWEIS System (18" Ring) - Whole House Propane
  • (1) Square Tempered Glass Flame Guard (29.5" × 29.5" × 6")
  • (1) Square Stainless Steel Burner Cover (27" × 27" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
