American Fire Products 24" Stainless Steel Square Drop In Pan With 18" Fire Ring

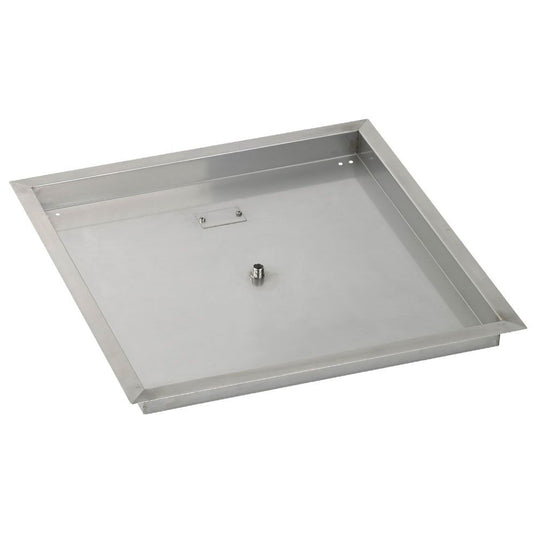

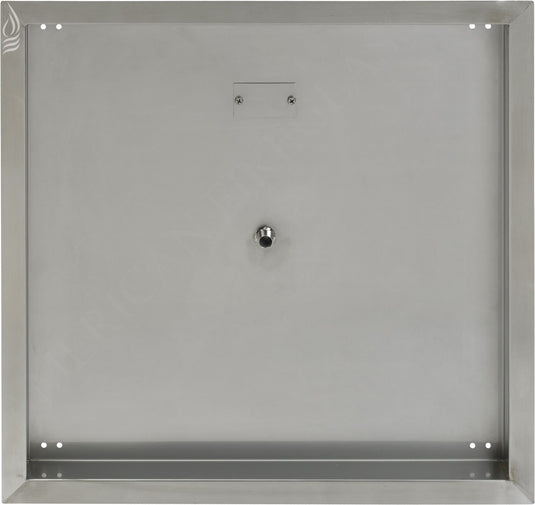

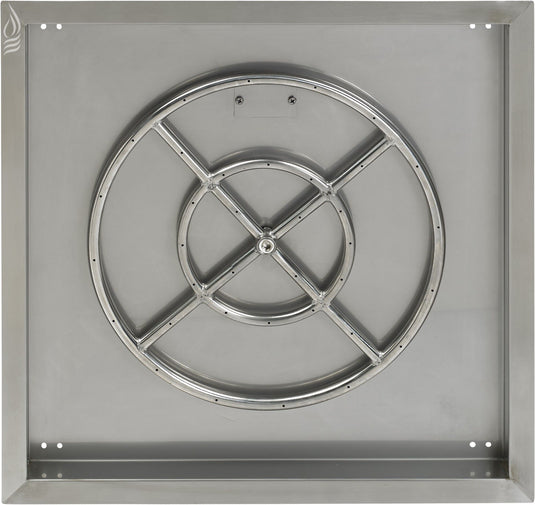

American Fire Products 24" Stainless Steel Square Drop-In Fire Pit Pan With 18" Fire Ring is designed to create a stunning square fire feature with an included 18-inch stainless steel fire ring burner for a beautiful, evenly distributed flame. The drop-in design with a convenient installation lip helps simplify installation while creating a false bottom that reduces the amount of fire glass needed.

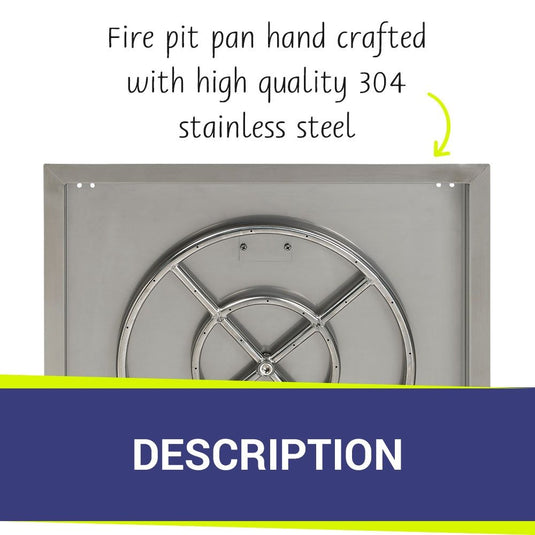

Handcrafted from durable 304 stainless steel, this square fire pit pan is built to withstand extreme heat and harsh outdoor conditions. The included 18-inch fire ring burner features drilled burner holes, a double concentric ring design for enhanced flame coverage, and a 1/2-inch gas inlet for easy connection to natural gas or propane.

With built-in weep holes for water drainage and a maximum heat output of 147,000 BTU/hour, this fire pit pan is ideal for outdoor vented fire pits, fire tables, and custom fire features.

(For propane applications, a propane air mixer is required.)

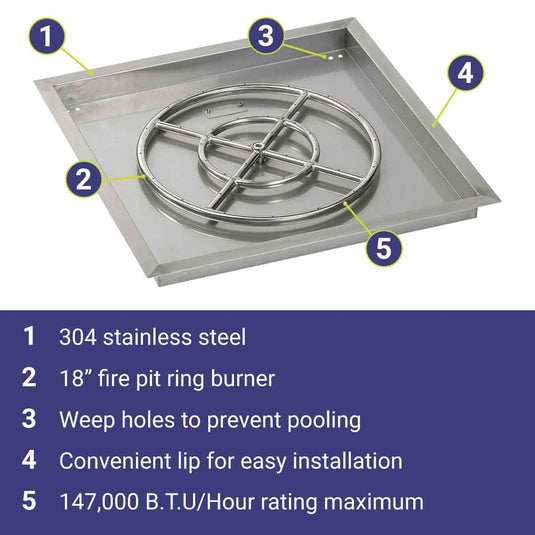

Features

• 24" square stainless steel drop-in fire pit pan
• Includes 18" stainless steel fire ring burner
• Handcrafted from durable 304 stainless steel
• Drop-in design with convenient installation lip
• Creates a false bottom to reduce fire glass usage
• Provides even flame distribution for a stunning fire display
• Double concentric ring burner design for wider flame coverage
• Drilled burner holes help reduce unwanted whistling sounds
• Built-in 1/2" bottom gas inlet for easy installation
• Built-in weep holes help prevent water pooling

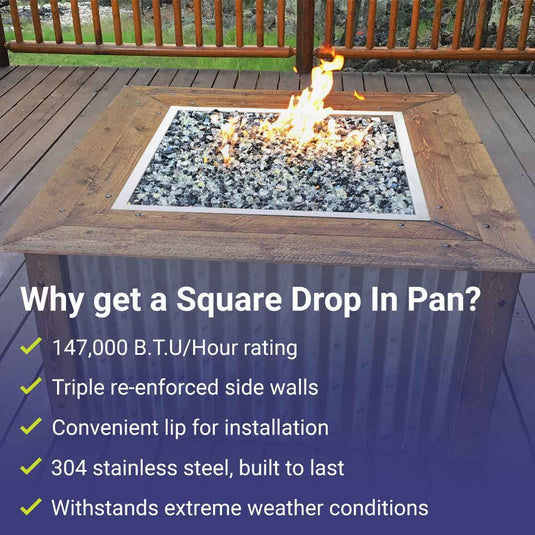

• Produces up to 147,000 BTU/hour maximum heat output
• Compatible with natural gas and propane fire features
• Designed for outdoor vented fire features only
• Propane applications require a propane adapter
• Withstands extreme heat and harsh outdoor weather conditions
• Ideal for square fire pits, fire tables, and custom outdoor living spaces

Product Specifications

• Brand: American Fire Products
• Product Type: Square Drop-In Fire Pit Pan Kit
• Material: Handcrafted 304 Stainless Steel

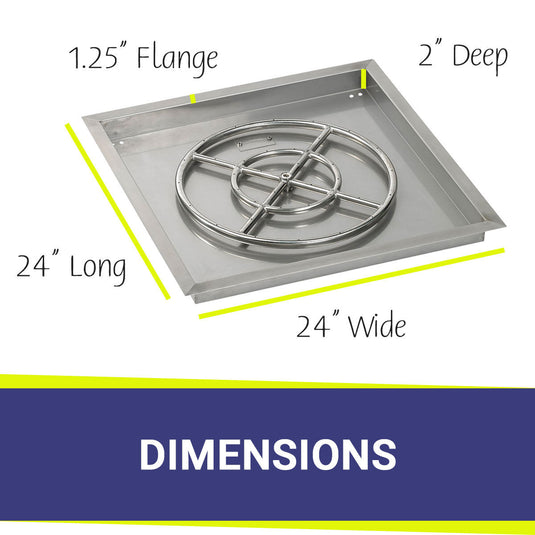

• Dimensions: 24" L × 24" W × 2" D
• Flange: 1.25"
• Weight: 26 lbs
• Description: Stainless steel square fire pit pan with included fire ring burner
• Burner Included: 18" Fire Ring Burner
• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Output: 147,000 BTU/Hour Maximum
• Fuel Compatibility: Natural Gas and Propane
• Installation Location: Outdoor Vented Fire Features Only
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane Adapter Required for Liquid Propane Conversion
• Application: Square Fire Pits, Fire Tables, and Custom Outdoor Fire Features
• Kit Includes
  • 24" Stainless Steel Square Drop-In Fire Pit Pan
  • 18" Stainless Steel Fire Ring Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
