American Fire Products 24" x 8" Rectangular Drop-In Pan with Spark Ignition Kit - Natural Gas Bundle

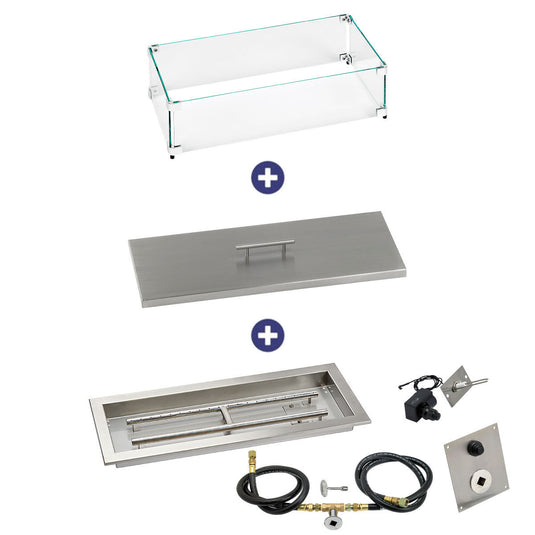

American Fire Products 24" x 8" Rectangular Drop-In Fire Pit Pan with Spark Ignition Kit - Natural Gas Bundle is a complete outdoor fire feature solution designed for reliable performance, easy installation, and a beautiful, consistent flame. This bundle includes a durable stainless steel rectangular drop-in burner pan with built-in H-burner, push-button spark ignition kit, tempered glass flame guard, and stainless steel burner cover.

The 24" x 8" drop-in fire pit pan features a built-in H-burner that produces an even flame pattern while the raised flange allows for simple installation into custom fire pits. Its false-bottom design reduces the amount of fire glass required while maintaining the appearance of a full and elegant fire feature.

The included push-button spark ignition system provides quick and dependable manual ignition, making it an excellent choice for outdoor natural gas fire pits. Built from high-quality stainless steel, this complete bundle is designed to withstand outdoor environments while delivering years of dependable performance.

Ideal for custom patios, outdoor living spaces, and entertainment areas, this natural gas bundle includes everything needed to build a premium outdoor fire feature.

Features

• Complete natural gas fire pit bundle includes burner pan, spark ignition kit, flame guard, and stainless steel burner cover
• Push-button spark ignition system provides fast and reliable manual ignition
• Constructed from high-quality stainless steel for excellent durability and corrosion resistance
• Built-in H-burner creates a balanced and attractive flame pattern
• Drop-in design with flange lip allows easy installation into custom fire pits
• Creates a false-bottom design to reduce fire glass requirements while maintaining a full appearance
• Drilled weep holes help prevent water accumulation inside the burner pan
• Drilled burner holes reduce whistling and improve flame performance
• Includes gas hoses, chrome key valve with key, and battery-powered spark igniter
• Optional mounting plate available for ignition button and key valve
• Tempered glass flame guard improves safety while enhancing flame reflection
• 304 stainless steel burner cover protects the burner pan when not in use
• Supports approximately 20 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire features only

Product Specifications

• Brand: American Fire Products
• Material: High-Quality Hand-Crafted Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Size: 24" L x 8" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Natural Gas
• Burner Type: Built-in H-Burner
• Fire Glass Capacity: 20 lbs (not included)

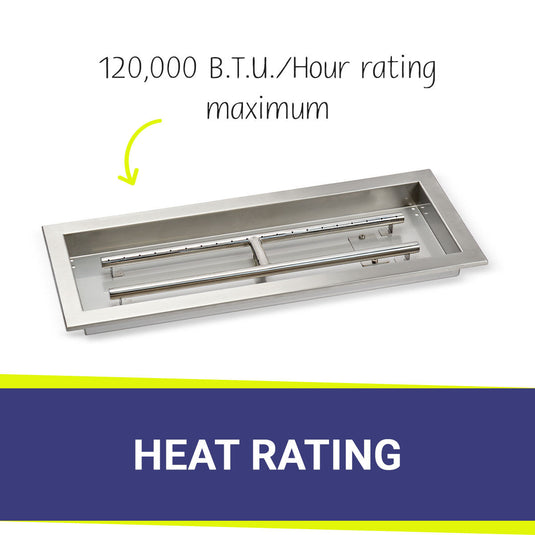

• Maximum Heat Output: 120,000 BTU/hour
• Ignition Type: Push-Button Spark Ignition
• Burner Hole Design: Drilled holes to reduce whistling
• Water Drainage: Integrated drilled weep holes
• Application: Outdoor vented natural gas fire features
• Product Weight: 12 lbs
• Spark Ignition Kit Includes
  • Push-Button Spark Igniter
  • Battery
  • Chrome Key Valve with Key
  • Two Gas Flex Hoses (5 ft each)

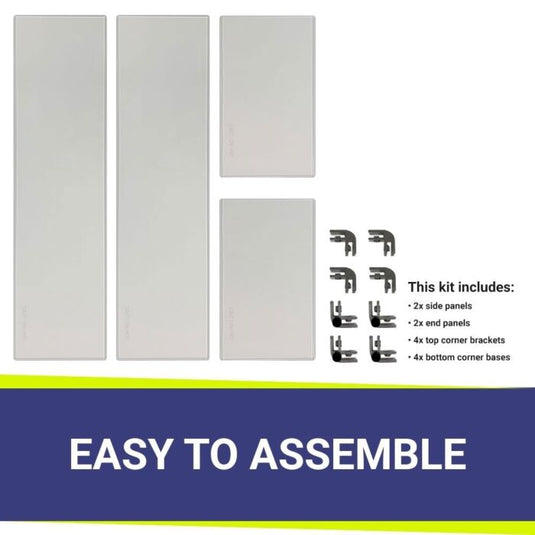

• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 29.5" x 13.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 27" x 11" x 1.5"
• Bundle Includes
  • (1) 24" x 8" Rectangular Drop-In Pan with Spark Ignition Kit - Natural Gas
  • (1) Rectangular Flame Guard (29.5" x 13.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (27" x 11" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
