American Fire Products 24" x 8" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas Bundle

American Fire Products 24" x 8" Rectangular Stainless Steel Drop-In Fire Pit Pan with AWEIS System - Natural Gas Bundle is a complete, high-performance fire feature solution designed for safe and reliable outdoor entertaining. This bundle includes a durable 304 stainless steel rectangular burner pan, AWEIS (All Weather Electronic Ignition System), tempered glass flame guard, and stainless steel burner cover.

The drop-in design creates a false bottom that reduces the amount of fire glass required while maintaining a full and elegant appearance. The built-in H-burner delivers a consistent flame pattern, while the AWEIS electronic ignition system provides automatic flame control, safety shutoff, and dependable operation in outdoor environments.

Designed for modern custom fire pits, this CSA-style electronic ignition system offers a clean installation with minimal vertical space requirements and is ideal for professional outdoor fire feature applications.

Features

• Complete natural gas fire pit bundle includes burner pan, AWEIS ignition system, flame guard, and burner cover
• AWEIS (All Weather Electronic Ignition System) provides reliable electronic flame control
• Hot surface ignition with intermittent pilot system for safe and consistent operation
• Automatic flame sensor and thermopile safety system help prevent gas flow when flame is absent
• Made from premium 304 stainless steel for superior durability and corrosion resistance
• Built-in H-burner creates an even and attractive flame pattern
• Drop-in design with flange lip allows easy installation into custom fire pits
• Creates a false bottom to reduce fire glass requirements
• Includes drilled weep holes to help prevent water buildup
• Drilled burner holes reduce whistling and improve flame performance
• Designed for installations with limited vertical space
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Tempered glass flame guard adds safety and enhances flame reflection
• Stainless steel burner cover protects the fire pit pan when not in use
• Supports up to 20 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire features
• Professional installation by a certified NFI professional is recommended

Product Specifications

• Brand: American Fire Products
• Material: Hand-crafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Size: 24" L x 8" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Natural Gas
• Burner Type: Built-in H-Burner
• Fire Glass Capacity: 20 lbs (not included)
• Maximum Heat Output: 120,000 BTU/hour
• AWEIS Maximum BTU Output: 290,000 BTU/hour
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24V AC
• Gas Inlet / Outlet Size: 1/2" FPT
• Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Hole Design: Drilled holes to prevent whistling
• Application: Outdoor vented natural gas fire features
• Installation: Certified NFI professional recommended
• Product Weight: 22 lbs
• Warranty: Pan & Burner: 5-year limited warranty / Kit: 1-year limited warranty
• AWEIS System Includes
  • AWEIS All Weather Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines

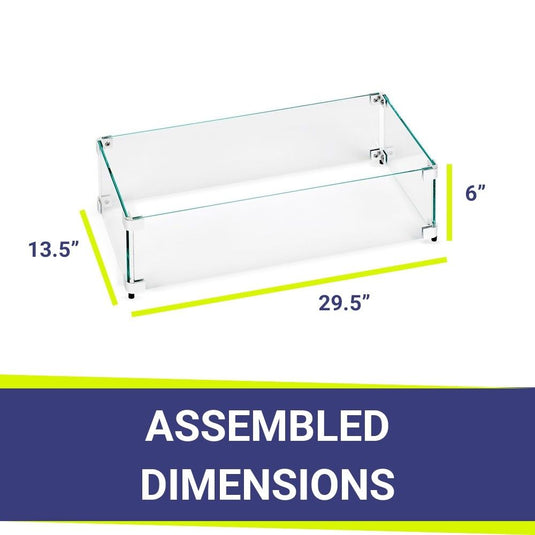

• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 29.5" x 13.5" x 6"

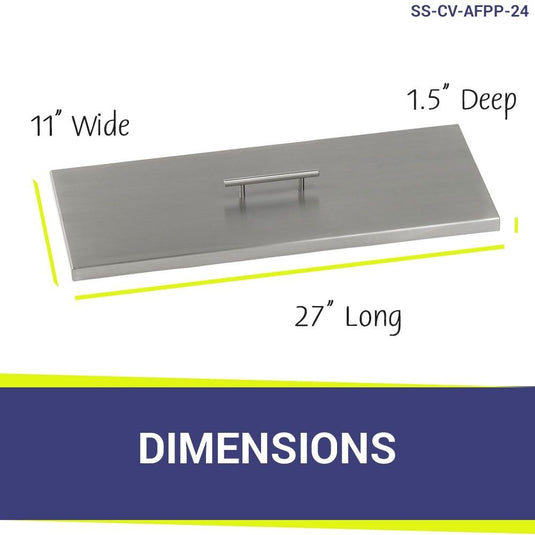

• Burner Cover Specifications
  • Material: 304 Stainless Steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 27" x 11" x 1.5"

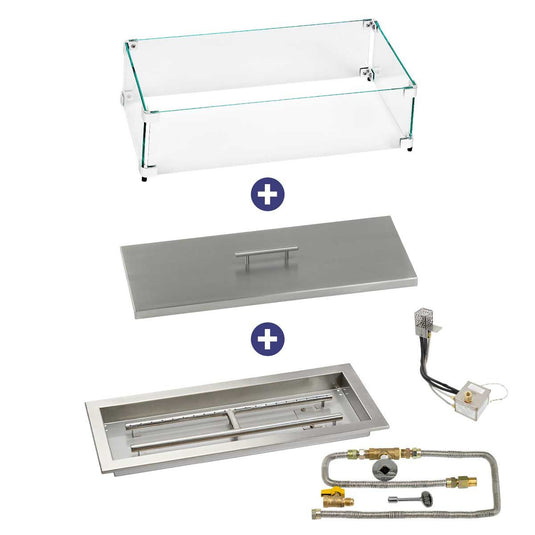

• Bundle Includes
  • (1) 24" x 8" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas
  • (1) Rectangular Flame Guard (29.5" x 13.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (27" x 11" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
